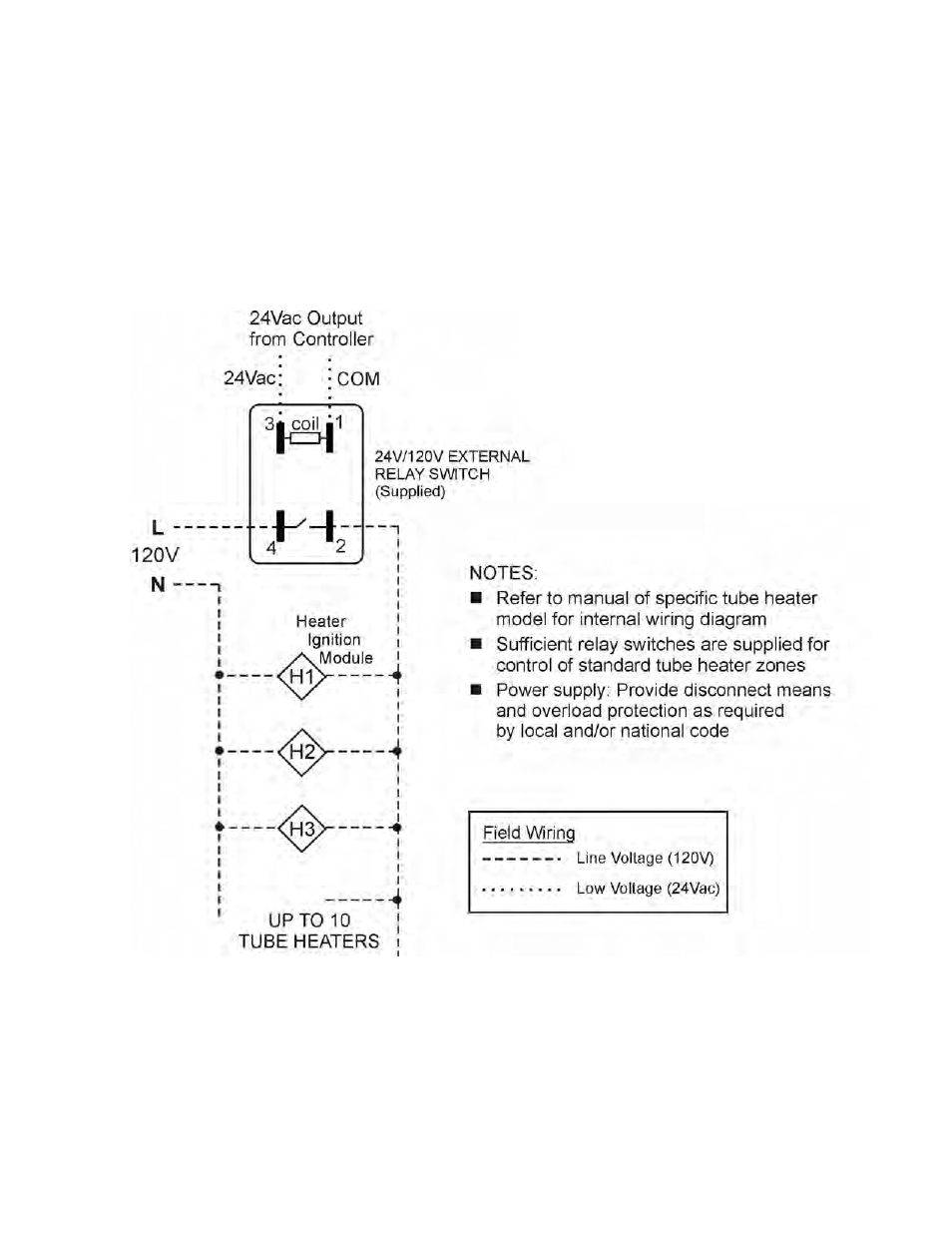

8 WIRING DIAGRAMS

- ThermoControl Plus 2

8.1 Standard Tube Heaters:

 Single-stage zone; 1-4 Zones

 Two-stage zones; 1-2 Zones (refer to section 5 and 5.2)

 Wire each of the low- and high-stage zones as below
 Jumper position (P-1 to P-3) and controller programming determine two-

stage operation
