3
1981 to Present Big Twin Models
Stock big twin models from 1981 to 1989 have two cable throttle system designed for stock, butterfly type carburetors. Big twins from 1990 to
present have a two cable throttle system designed for the stock, constant velocity (CV) type carburetor. In spite of the differences in throttle cables
for these year groups, stock throttle cables on all 1981 to present big twin models can be installed on the S&S Super E throttle linkage with no cable
modification. S&S® Super E carburetor kits for 1936 to 1989 big twins contain a throttle cable guide designed for butterfly type throttle cables, and

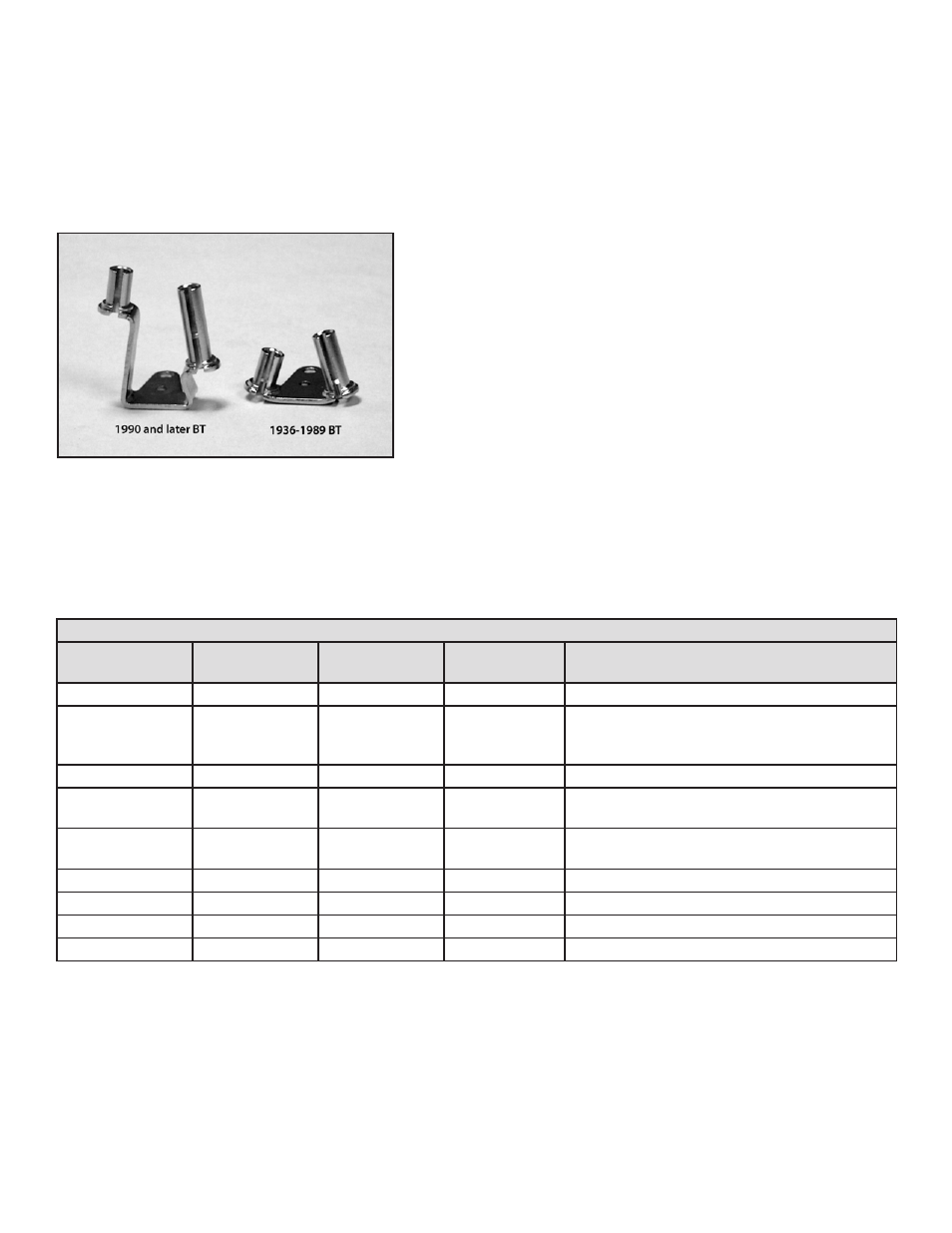

kits for 1990 and later big twins contain a taller throttle cable guide designed for CV type throttle cables. See Picture 2. The two throttle cable guides
are interchangeable on the carburetor body, and can be changed very easily to update older carburetors or to accommodate custom throttle cables
which are not stock for a particular year chassis.
1981 to Present Harley-Davidson® Sportster® Models
Stock Sportster models from 1981 to 1987 have two cable throttle system designed for butterfly type carburetors. 1988 to present models have a
two cable throttle system designed for use with the stock constant velocity (CV) type carburetor. Since the taller cable guide bracket can not be
used on a Sportster chassis due to insufficient frame clearance, throttle cables on motorcycles originally equipped with a CV type carburetor must
be changed to butterfly style cables. S&S can supply the correct style throttle cables. See S&S Throttle Cable Application Chart 1.
S&S THROTTLE KITS
S&S throttle kits fit 1" handlebars and can be used on most chassis. (An adapter sleeve is available for use with earlier, 7⁄8" OEM handlebars originally
equipped with internal throttle cable). Barrel fittings on S&S® cables readily "plug in" to S&S Super E, G, and stock H-D® 1981-'90 butterfly type
carburetor throttle linkage. Kits include one opening and one closing side cable, left and right grips, and handlebar clamps. Kits with 36", 39", 42", or
48" length cables are available. Length specified refers to overall cable length. Vinyl covered outer housing is 4" shorter than overall length.
NOTE: Cables supplied with above kits are interchangeable with 1981-'90 stock H-D butterfly style throttle cables.
Picture 2
S&S® Throttle Cable Application Chart
Length
Total Housing
Length
Vinyl Housing
Part Number
Open Side
Part Number
Close Side
Fitment
36" 32" 19-0430 19-0431 For Buell® with 7⁄8" handlebars
36" 32" 19-0432 19-0433 To 1995, 1981-'85 FX and FL; All 1981-'85 XL
(Also pre-1981 w/2-cable throttle housing replaced)
For Buell with 1" diameter handlebar
36" 32" 19-0436 19-0437 1996-up 883-1200 XL
39" 35" 19-0434 19-0435 To 1995 Softail® (FXCTC, FXST, FLSTC, FLSTC, FLSTF)
1986-'94 FXR,1993-'95 Dyna®
39" 35" 19-0438 19-0439 1996-up Softail (FXSTS, FXSTC, FLSTC, FLSTF)
1996-Up Dyna
42" 38" 19-0446 19-0447 To 1995 Custom Application
42" 38" 19-0440 19-0441 1996-up Custom Application
48" 44" 19-0462 19-0463 To 1995 All FLT Models
48" 44" 19-0464 19-0465 1996-up All FLT Models
Chart 1
