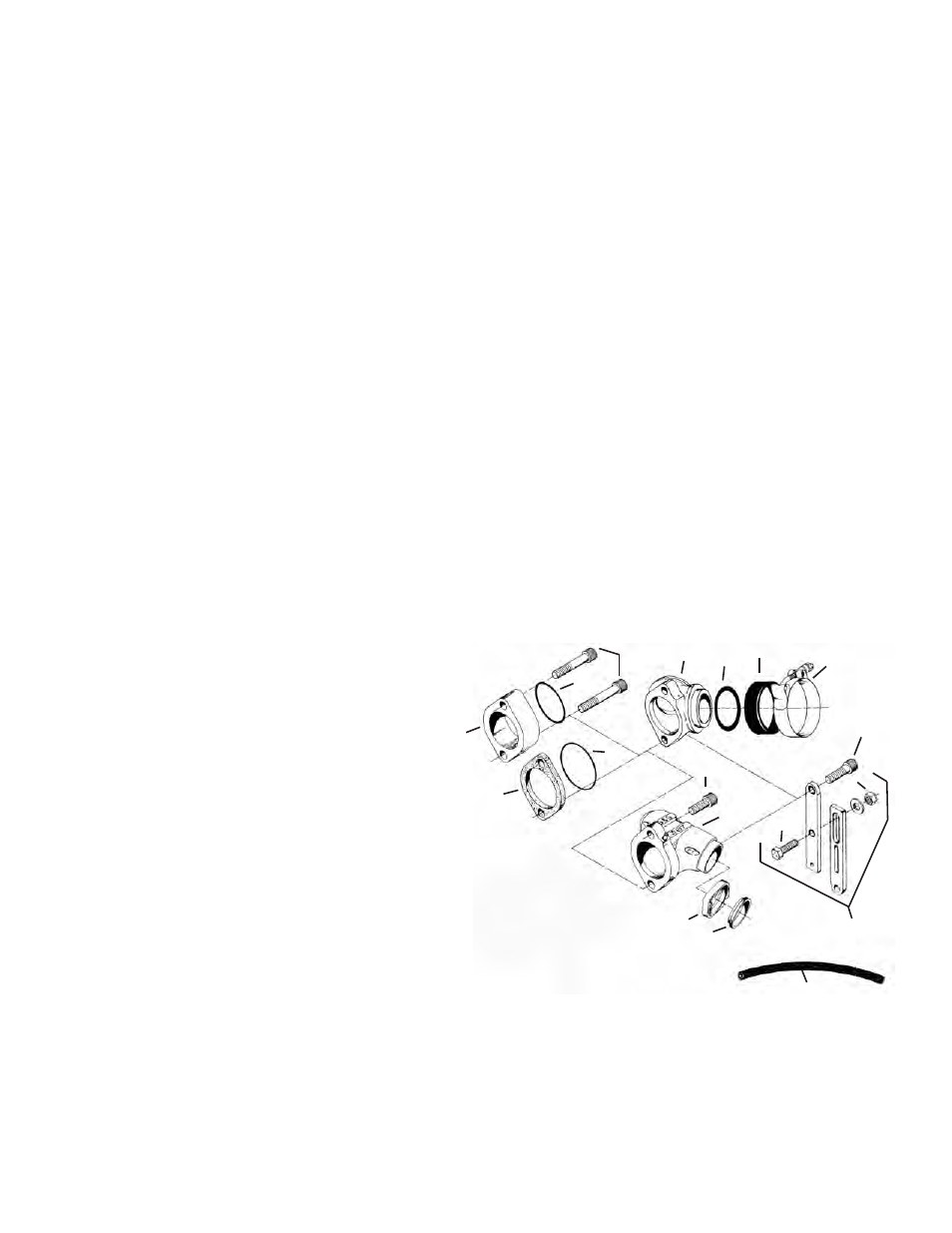

REPLACEMENT MANIFOLD PARTS
1. Restrictor plate
(not shown)
.............................................................................16-0489
2. Intake manifold for 1986-2006 Harley-Davidson® Sportster® ..............16-1620
3. Intake manifold for
1999-2005 big twin ................................................................................................16-1718
1984-1999 big twin ................................................................................................16-1628
4. Manifold bolts
(10 Pack)
3
/
8
”-16 x 1” ..................................................................................................................50-0186
3
/
8
”-16 x 1
1
/
4
” ...............................................................................................................50-0177
(Use in bottom hole with 16-0096 or 16-0471 bracket or in top
and bottom holes with 16-0491 or 16-0492 insulator block.)
3
/
8
”-16 x 1
3
/
8
”
(5 Pack)
...............................................................................................50-0178
(Use in bottom hole with 16-0096 or 16-0471 bracket and 16-0491 or
16-0492 insulator block.)
3
/
8
”-16 x 2”
(5 Pack)
....................................................................................................50-0185
3
/
8
”-16 x 2
1
/
4
”
(5 Pack)
...............................................................................................50-0180
3
/
8
”-16 x 2
1
/
2
”
(5 Pack)
...............................................................................................50-0188
5. Manifold o-ring - 1955-’78 BT & Sportster
(10 Pack)
........................................................................................................................50-8132
6. Manifold rubberband - 1979-’85 BT & Sportster
(10 Pack)
......................16-0245
7 Manifold o-ring - 1984-up big twin & 1986-up Sportster
Stock cylinder heads
(10 Pack)
............................................................................16-0236
S&S cylinder heads
(10 Pack)
...............................................................................16-0235
8. Manifold clamps
O-ring pre 1979 .......................................................................................................16-0230
Band 1979 to ’85 .....................................................................................................16-0231
9. Manifold Flanges 1984-’06 BT & 1986-’06 Sportster
Front mounting flange
(5 Pack)
........................................................................16-0600
Rear mounting flange
(5 Pack)
..........................................................................16-0601
10. Carb mounting bracket - 1948-’65 BT
(not shown)
....................................16-0096
11. Carb mounting bracket assembly ...................................................................16-0471
(Includes 1 each 2-piece bracket 17-0104, 17-0245, 17-0321)
12. Support bracket bolt —
5
/
16
”-18 x 1” ..............................................................50-0108
13. Flat washer —
5
/
16
” x
1
/
16
” ......................................................................................50-7034
14. Lock nut —
5
/
16
”-18 ............................................................................................50-5021
15. 1” Aluminum spacer blocks
For 1
7
/
8
” Super E ................................................................................................16-0057
(Includes 1 each 1” spacer block & 50-8013 o-ring)
For 2
1
/
16
” Super G ...............................................................................................16-0357
(Includes 1 each 1” spacer block & 50-8015 o-ring)
16. Insulator blocks
1
7
/
8
” Super E — All big twins .........................................................................16-0491
(Includes 1 each insulator block & 50-8016 o-ring)
2
1
/
16
” Super G — All big twins .......................................................................16-0492
(Includes 1 each insulator block & 50-8015 o-ring)
1
7
/
8
” E — for Sportster (Manufactured after 6-15-01) ..........................16-0497
(Includes 1 each insulator block & 50-8016 o-ring)
2
1
/
16
” — for Sportster (Manufactured after 6-15-01) ...........................16-0498
(Includes 1 each insulator block & 50-8015 o-ring)
17. Manifold O-rings
For 1
7
/
8
” E carb body & insulator block
(10 Pack)
.....................................50-8094
For 1
7
/
8
” spacer block
(10 Pack)
..................................................................... 50-8102
For 2
1
/
16
” G carb body, insulator block, & spacer block
(10 Pack)
....................................................................................................................................................
50-8093
18. VOES tubing - 12” piece
(5 Pack)
...................................................................19-0351
16
15
17
4
2
5
6
8
4
14
13
11
12
7
9
18
17
4
3
