17
1. Air cleaner cover
Chrome ..............................................................................................17-0378
2. Element, pleated carbon – TÜV .................................................17-0375
3. Backplate
1970-'84 .............................................................................................17-0860
TÜV 1984-'99 – 35⁄8" and 4" Bore ................................................17-0388
TÜV S&S – 41⁄8" Bore ......................................................................17-0395
4. Cover screw, chrome (10 Pack) ...................................................50-0347
5. Backplate screw (10 Pack) .........................................................106-2105
6. Fast idle friction washer (10 Pack) ..............................................50-7058
7. Fast idle steel washer (10 Pack) ...................................................50-7061
8. Fast idle nylon washer (10 Pack) .................................................50-7060
9. Fast idle lever ..................................................................................17-0329
10. Fast idle brass washer
(10 Pack) ................................................50-7010
11. Fast idle lever screw (10 Pack) ....................................................50-0062
12. Shims (10 Pack)
a. S&S 41⁄8" Bore
5⁄16” x .018” .....................................................................................50-7107
5⁄16” x .030” .....................................................................................50-7070
5⁄16” x .048” .....................................................................................50-7068
5⁄16” x .105” .....................................................................................50-7062
b. 1984-'99 35⁄8" & 4" bore TÜV
5⁄8” x .025” .....................................................................................50-7110
5⁄8” x .050” ..................................................................................... 50-7111
5⁄8” x .075” ..................................................................................... 50-7112
13. Breather fitting, BT 1993-’99 & XL 1991-up
...............................................................................................................17-0337
14. Crankcase breather hose
TÜV 1970-'84 ....................................................................................17-0113
TÜV 1984-up ....................................................................................17-0339
15. Backplate plug 1⁄8”-27
(10 Pack) ..................................................50-1015
16. Flatwasher – 5⁄16” x 1⁄16” (10 Pack) ..................................................50-7069
17. Mounting bracket bolt – S&S 41⁄8" Bore
5⁄16”-18 x 11⁄4” (10 Pack) .....................................................................50-0148
18. Screw vent fitting – BT 1993-’99 ...............................................17-0347
19. Screw, air cleaner to head ...........................................................17-0346
20. Washer, silicone coated steel .520” –
(10 Pack)
BT 1993-’99 .......................................................................................50-7057
21. Plate, air cleaner noise reducer .................................................17-0389
22. Rubber isolator mounts
(3 Pack) ...............................................50-8511
23. Shim, spacers, 1⁄2” OD x 1⁄4” ID x .080”
(3 Pack) .................................................................................................50-7970
24. Shim, .850” x .325” x .400” – S&S 41⁄8" Bore
...............................................................................................................50-7027
25. Lockwasher, 5⁄16" (10 Pack) .............................................................50-7077
26. Locknut, HH, 5⁄16" -18 (10 Pack) ..................................................50-5020
27. Spring clamps (NS) (10 Pack) .......................................................50-8088
REPLACEMENT PARTS FOR T
UU
ÜV APPROVED
S&S® SUPER E & G AIR CLEANERS
4
1
2
21
19
3
22
23
5
15
15
11
14
10
8 9
8 7
6
20
13
20
18
12b
1984-’99 Big Twin TüV
3 5 /
8
" and 4" Bore
17-0430
1970-'84 TüV Big Twin
17-0445
4
21
2
1
3
22
17
5
6
7
8
9 8
10
11
12
15
22
26
23

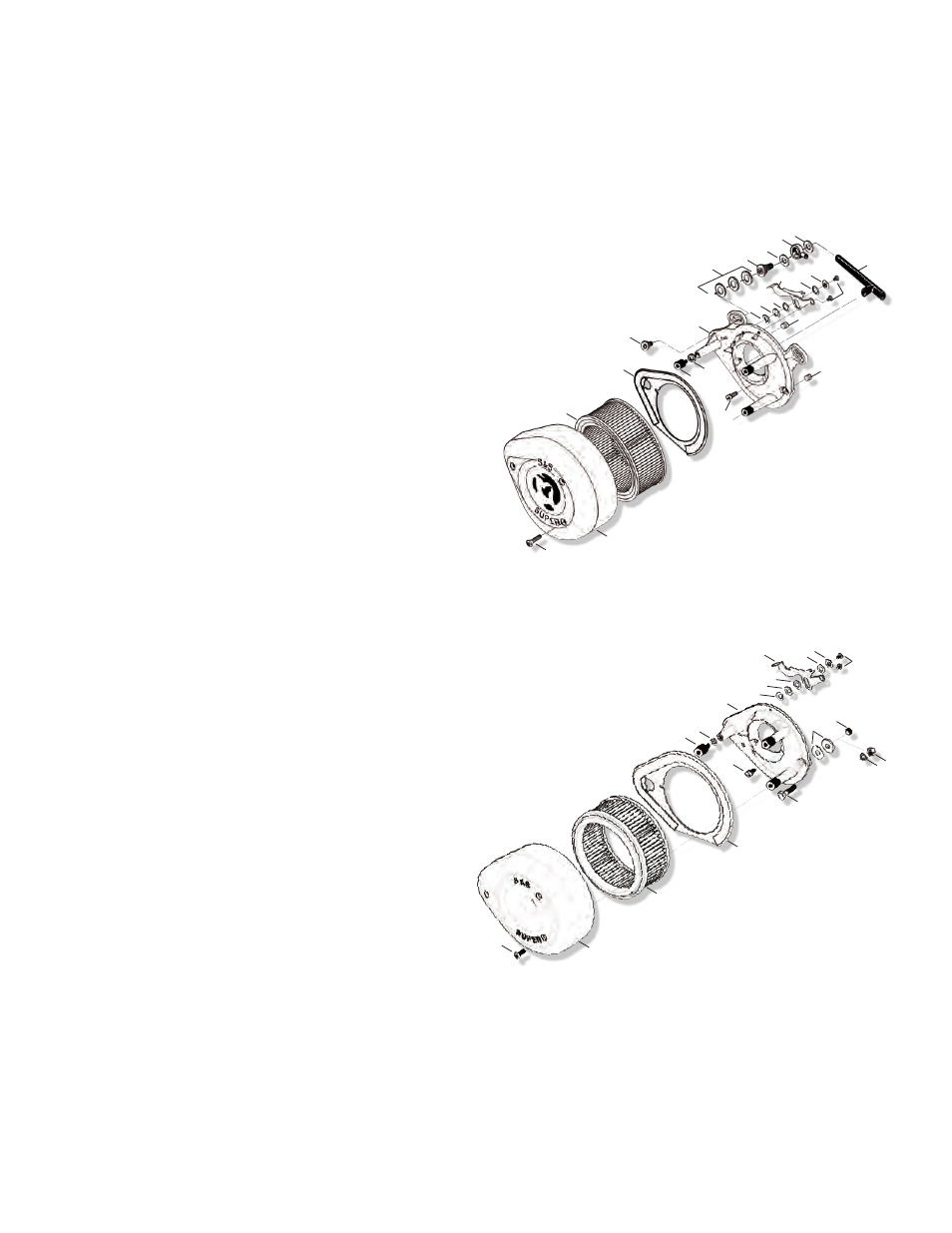

NOTE: The line drawing is used for illustration purposes only. Not all of the parts
shown are included and used in every carb installation. Parts followed by an N/A
are no longer available. Those followed by an (NS) means parts are not shown.
