5. Regarding of M1000 Pro V2: install an antenna -> insert SIM card into one of the SIM card slots -> connects
M1000 Pro V2 to the PC’s serial port -> switch to Config Mode -> power on M1000 Pro V2.

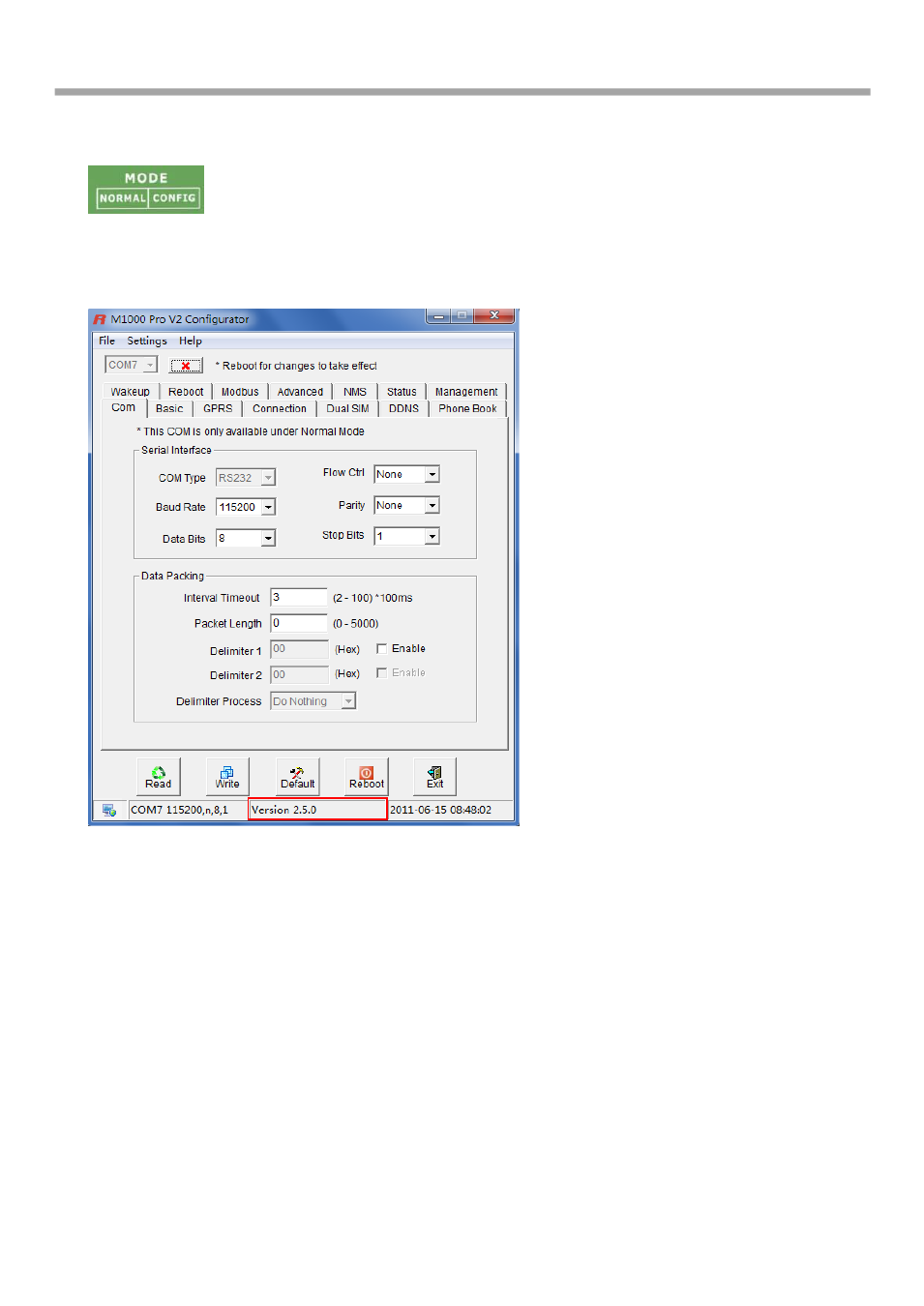

6. Run M1000 Pro V2 Configurator, Upgrade M1000 Pro V2’s firmware to “Version 2.5.0” (firmware version greater
than or equal to version 2.3.3, such as version 2.5.0, will support RobustLink function), and then use M1000 Pro
V2 Configurator V2.5.0.exe to configure.
Note: Please check the firmware version at the button of the Configurator to confirm that if it is newer than
Version 2.3.3. If not please let us know what your firmware version is, we will provide you the proper firmware
and configurator.
7. Go to tab “COM”, select relevant com Type and Baud Rate. For example, COM type RS232, Baud Rate 115200,
Data Bits 8, Flow Ctrl None, Parity None, and Stop Bits 1.
8. Go to tab “GPRS” --> enter relevant ISP information, for example APN, User Name, etc. Make sure M1000 Pro V2
can establish PPP connection successfully.
9. Go to tab “Connection” --> go to item “Connection Control” --> select “Always Online” mode. Other settings stay
default.
10. Go to tab “NMS”-->M2M Platform, click Enable to allow M1000 Pro V2 connect to RobustLink --> enter IP
address and Port number of RobustLink's in item “Address” and “Port”--> enter a password which set in the
