to guide you through the program. At any point in the calibration program,
the ESCAPE key may be used to either return to the previous screen or
abort a process.
Select Cal. Gas
Concentration
for Channel 2
Calibrate
Channel 1 Y/N?
Calibration
Timeout
Selection
ENTER Normal
Operation
Apply Gas to
Ch. 1 & Ch. 2
Detectors
Air Adjust
Channel 2
(If Installed)
Press Enter to
Adjust Span
Span
Channel 2 Y/N?
(If Installed)
Select Cal. Gas
Concentration
for Channel 1
Air Adjust
Channel 1
Calibration
Program Enter
ENTER/ESCAPE
ESCAPE
Calibrate
Channel 2 Y/N?
(If Installed)
Span
Channel 1 Y/N?

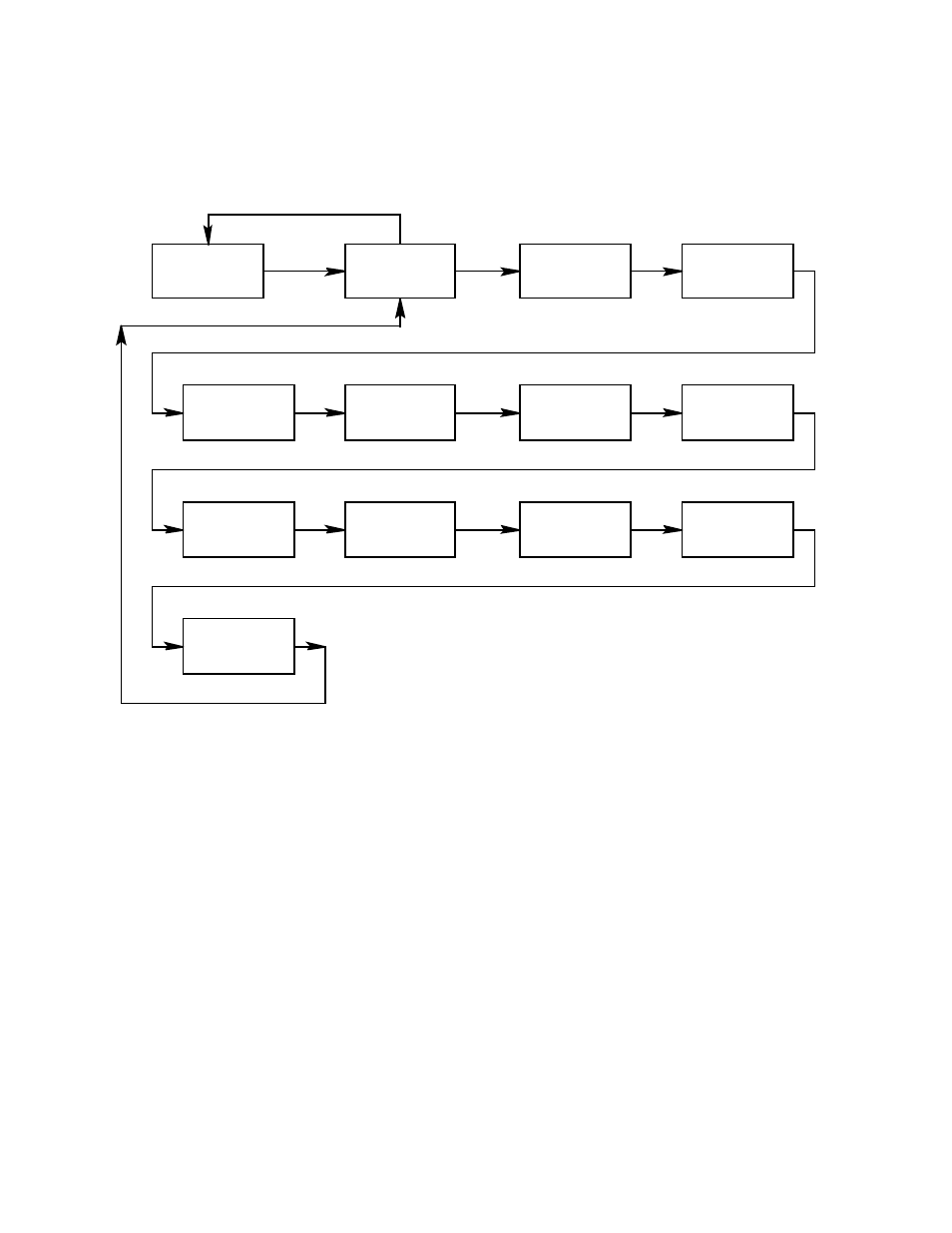

Figure 11. Direct Connect Detector Head(s) Only
