Applications
Page 10 of 11

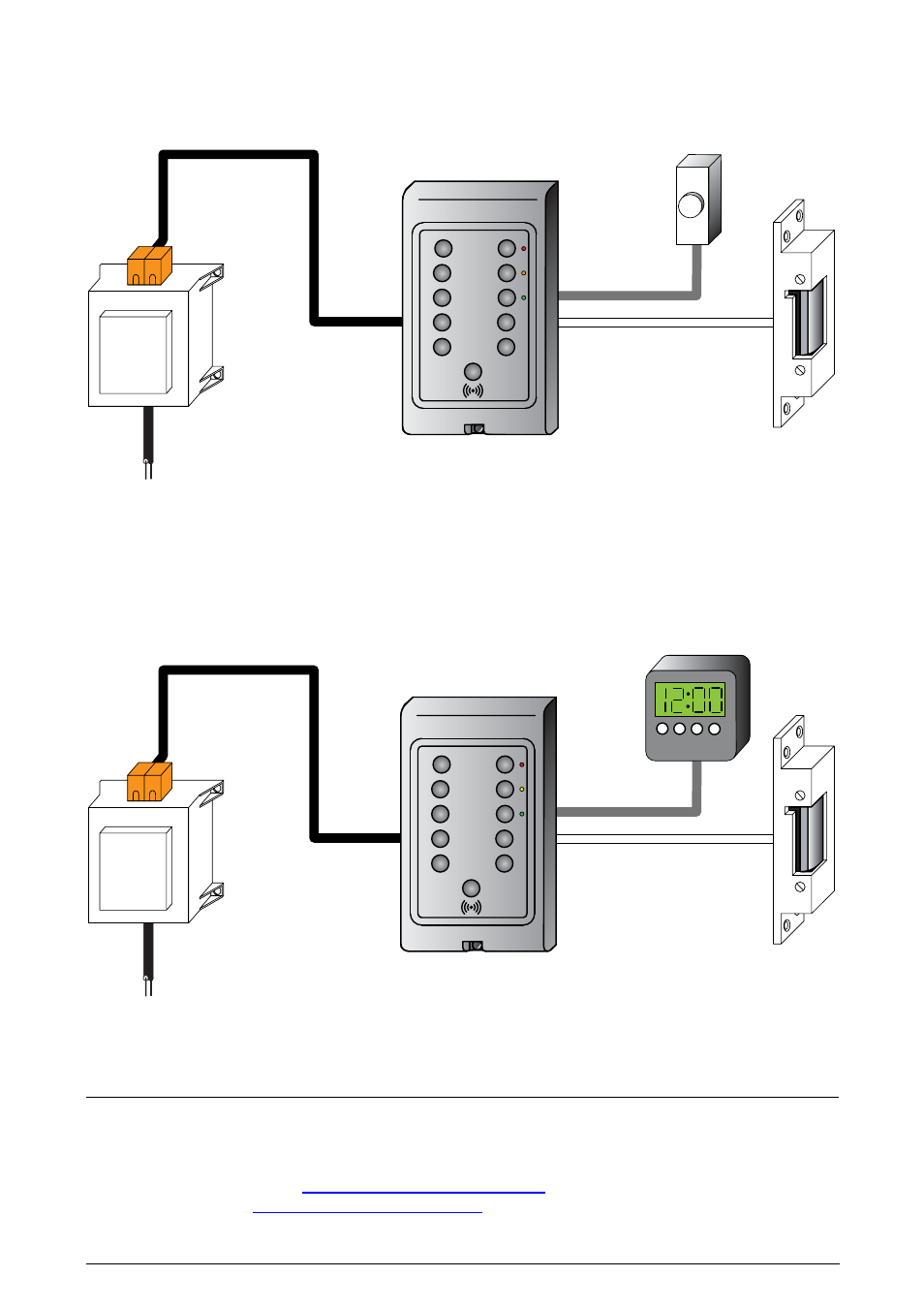

Exit button
BLACK
WHITE
240V a.c. From un-switched fused spur
GREY
EXIT BUTTON
push to make
1
2
3
4
5
6
7
8
9
0
ABC
DEF
GHI
JKL
MNO
PQR
ST
UV
WX
YZ
TOUCHLOCK compact will operate
from 12V a.c. or 12V d.c.
12V a.c.
Green wires must be insulated
white lock wires will drive up to
500mA continuous
(750mA for up to 7 seconds)
Positive wire is identified
by being ribbed or striped.
Total load must not exceed PSU capacity.
12V d.c.
An internal push-to-make button can be used where electronic exit is required. When the button is pressed
the doors electric release is activated. Any number of exit buttons can be fitted.
Time clock
WHITE
240V a.c. From un-switched fused spur
GREY
1
2
3
4
5
6
7
8
9
0
ABC
DEF
GHI
JKL
MNO
PQR
ST
UV
WX
YZ
BLACK
12V time clock with clean contacts. Note Paxton 5V d.c.
time clock will only work with Switch2 and Compact S/Steel
Green wires must be insulated
white lock wires will drive up to
500mA continuous
(750mA for up to 7 seconds)
Positive wire is identified
by being ribbed or striped.
Total load must not exceed PSU capacity.
12V d.c.
TOUCHLOCK compact will operate
from 12V a.c. or 12V d.c.
12V a.c.
Where a door needs to be held open automatically a time clock can be wired into the keypad as shown
above. The voltage free contact outputs from the time clock would be connected to the grey wires of the
keypad. A standard central heating timer can be used.
Tech Help
Feel free to contact the Technical help line from
7:00am – 7:00pm on
0870 6080886
You can contact us by e-mail
–
.
Our web site address is
http://www.paxton-access.co.uk
.
