Pavement Ends 51201 Replay - Manual (Page 6)

51201 pg 6 0612 Rev. B
Roll Plastic into
Channel
Start Zipper on
Quarter Window
Step Eighteen
S
ECURE
F
RONT OF
Q
UARTER
P
ANELS

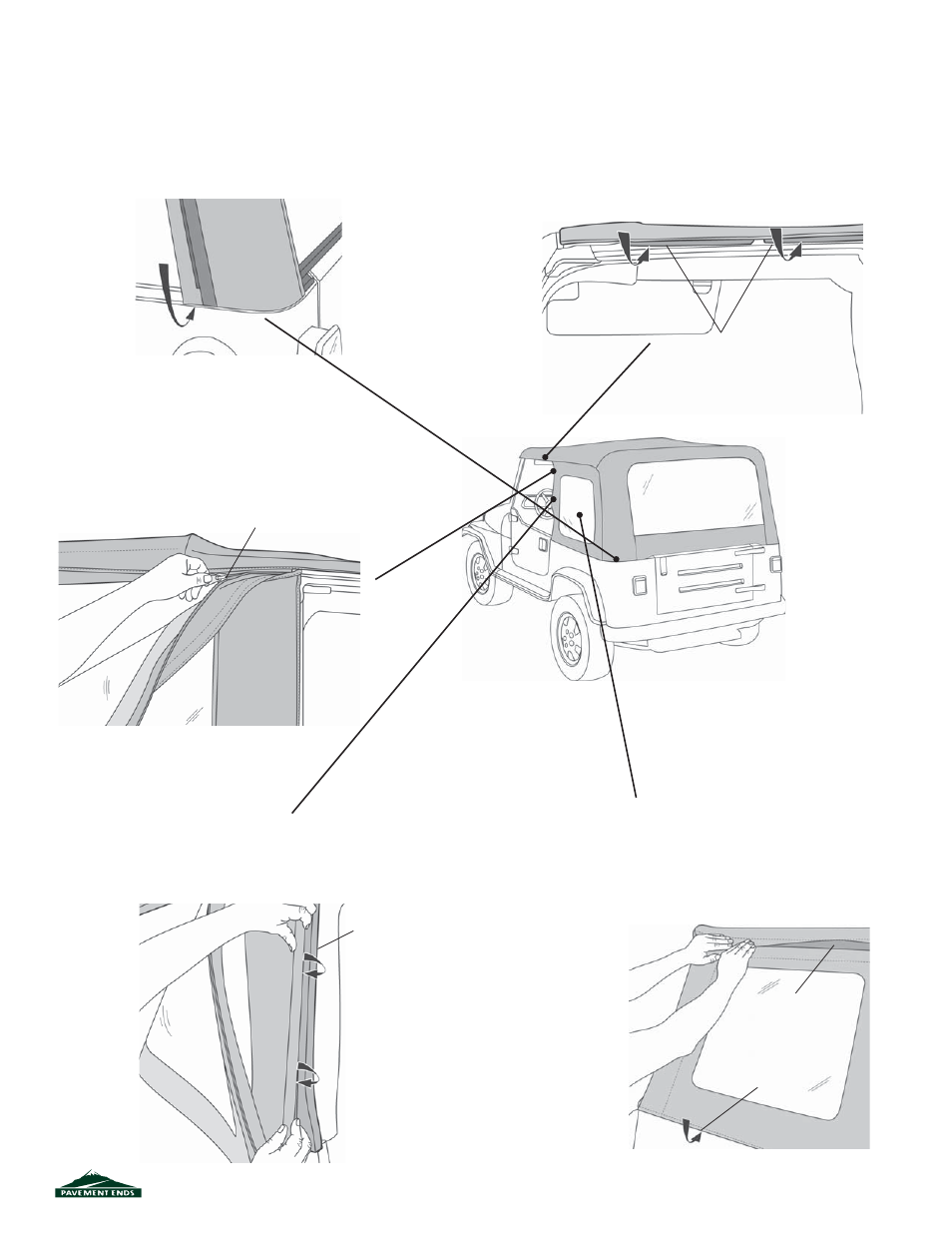

Roll the plastic strip along the front of the Quarter
Window into the channel in the Door Surround.
Step Twenty
S
ECURE
T
OP ABOVE
D
OOR
O
PENINGS
Slip the plastic strips above the doors into
the channel on the vehicle.
Step Nineteen
S
ECURE
Q
UARTER
W
INDOWS
Close the zipper and slip the plastic along the
bottom of the Side Window into the channel on
the vehicle.
Fasten the hook and loop strip above the window
to the top.
Step Seventeen
A
TTACH
Q
UARTER
W
INDOW
Z
IPPERS
Start the zipper on the Quarter Window and close
it 1-2 inches.
Roll Plastic Strip into
channel in retainer
Roll Plastic into
Channel
Fasten Hook
and Loop
Step Sixteen
S
ECURE
R
EAR
C
ORNERS
Pull down gently on the Rear Bow and work
the plastic sewn to the rear corners of the top
into the retainer on the vehicle.
Pull down gently
on the Rear Bow
and slip plastic into
retainer
