Step Twelve
S
ECURE
C
ENTER
B
OWS

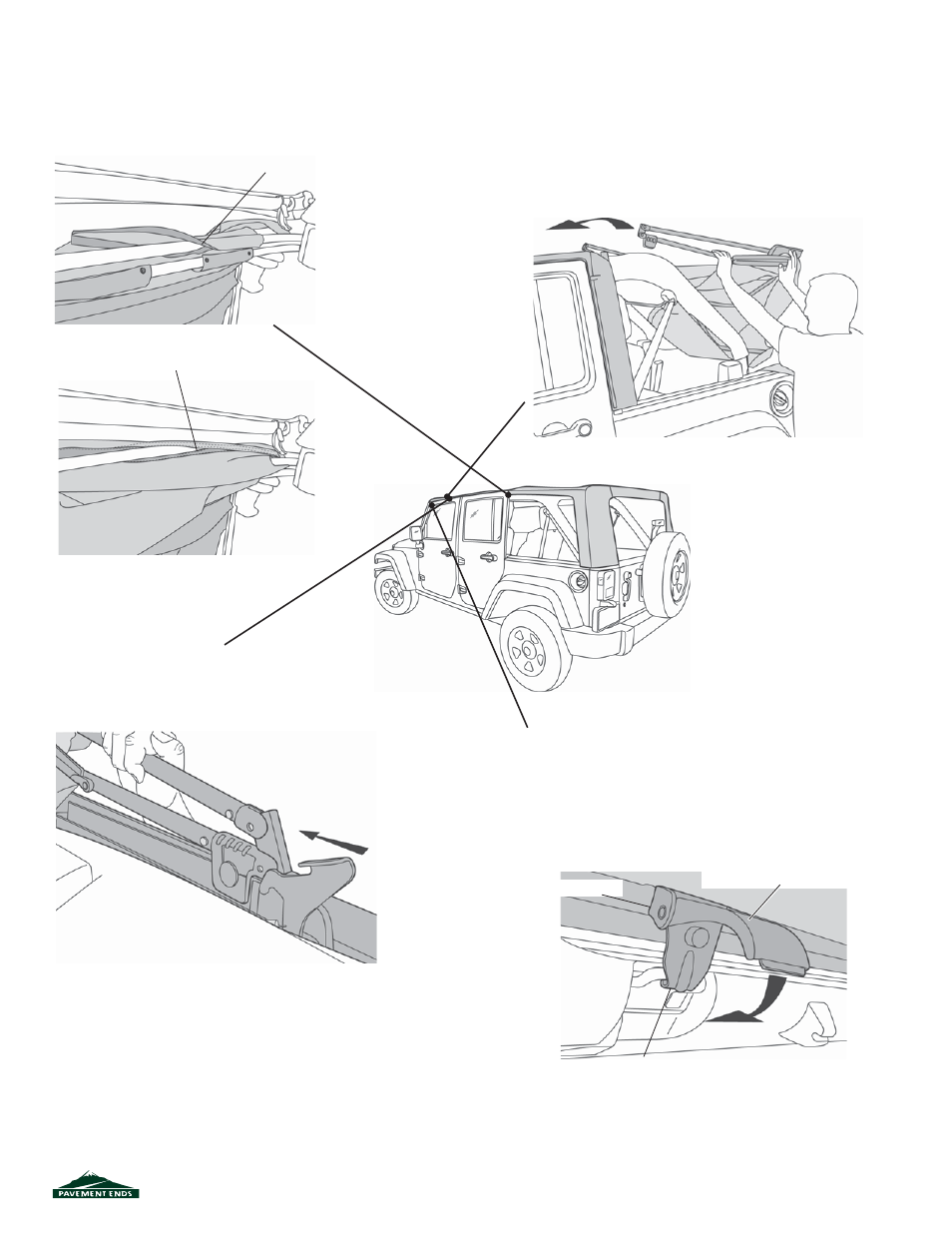

Wrap the hook and loop fl aps around the two
Bows in the center of the top.
Wrap Flap around Bow and
Fasten Hook and Loop
Wrap Flap around Bow and
Fasten Hook and Loop
Step Thirteen
I
NSTALL
B
OW
A
SSEMBLY
Open the Top Assembly and drape it over the cab
of the vehicle.
Step Fourteen
S
ECURE
B
OW
A
SSEMBLY
Step Fifteen
S
ECURE
H
EADER TO
W
INDSHIELD
Close the header latches to secure the front of the
top to the windshield. Catch the hook in the loop in
the windshield frame and then close the lever over
it so that it lays fl at against the windshield frame.
Windshield
Frame
Windshield
Header Latch
Close lever over top of hook to
lay fl ush with windshield frame
Catch hook
in loop
