51201 pg 2 0612 Rev. B
Tools Needed
Safety Glasses
Phillips Screwdriver
Masking Tape
Parts List
Fabric Top Qty - 1
Quarter Window, Right Qty - 1
Quarter Window, Left Qty - 1
Rear Window Qty - 1
Elastic Garter Qty - 2

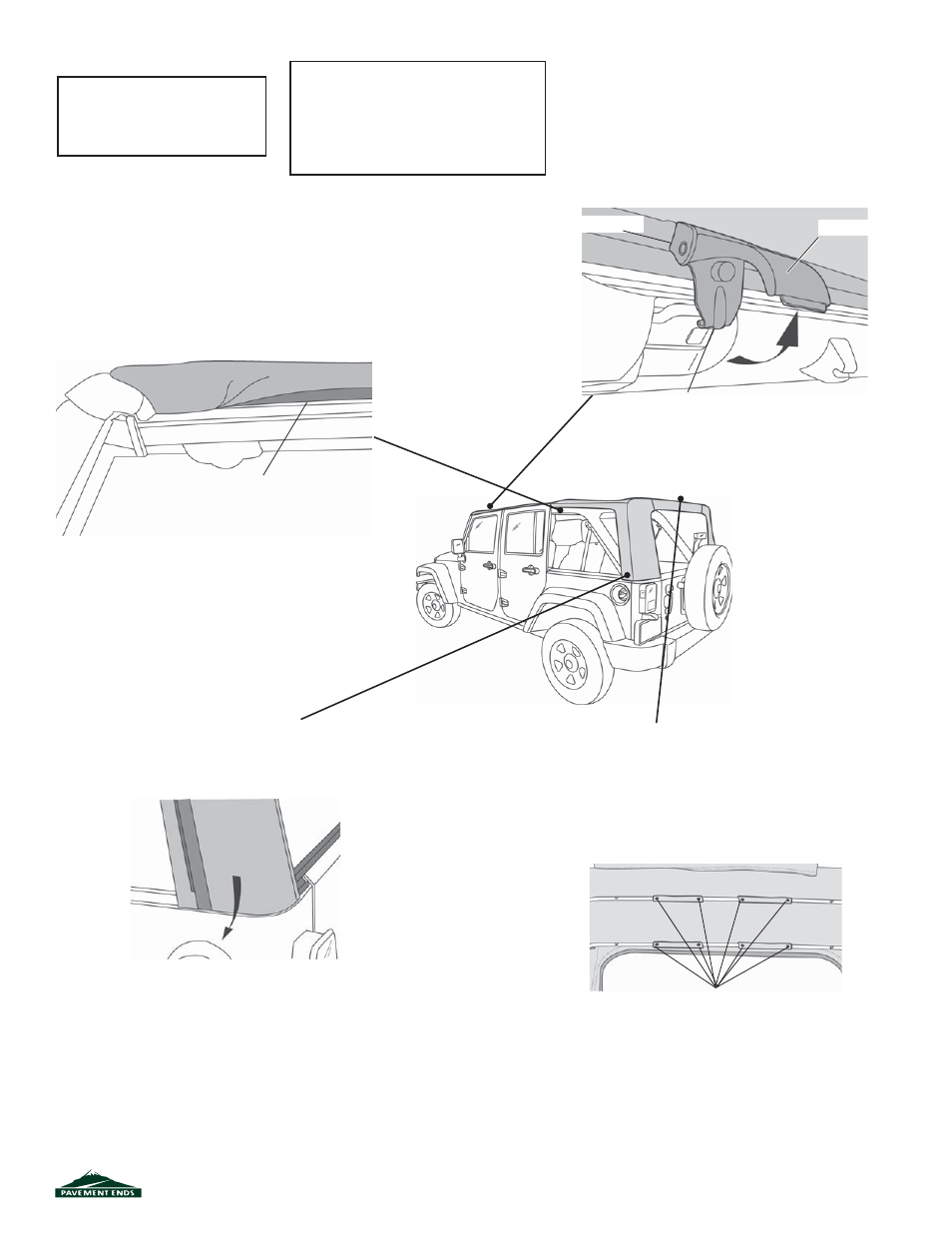

Step One
R
EMOVE
Q
UARTER
W
INDOWS AND
R
EAR
W
INDOW
Remove the Quarter Windows and the Rear Win-
dow. Remove the metal Tailgate Bar from the bot-
tom of the Rear Window and set it aside.
Release the plastic strip sewn to the top above the
doors. Pull down and out to slip the plastic out of
the channel.
Step Two
R
ELEASE
W
INDSHIELD
L
ATCHES
Release the latch that secures the header to the
windshield. Pull up on the lever and then down
and out to release the hook from the loop in the
windshield frame.
Step Three
R
ELEASE
R
EAR
C
ORNERS
Release the rear corners of the top. Pull gently
down and then out to release the plastic strip
from the retainer on the vehicle.
Pull down and then out
to release the fabric from
the retainer
Step Four
R
ELEASE
R
EAR
2 B
OWS
Use a phillips screwdriver to remove the four
screws that attach the fl aps in the top to the two
Rear Bows. Set the screws aside to be reused
later. Allow the bows to drop onto the tailgate.
Release Plastic Strips
from Retainers
Windshield
Frame
Windshield
Header Latch
Pull lever up
Release hook
from loop
Unscrew the fabric
from the rear bows
View from inside vehicle
Rear Window
Opening
