78
d D
L
RoHS
PG 7 M 12 x 1,5 6 4,5 15 1.280.0007.00
PG 9 M 16 x 1,5 NPT 3/8" 7,5 5,5 17 1.280.0009.00
PG 11 M 16 x 1,5 / 11 9,5 6,5 19 1.280.0011.00
PG 13,5 M 20 x 1,5 NPT 1/2" 11,5 8,5 19 1.280.0013.00
PG 16 M 20 x 1,5 / 16 NPT 1/2" (16) 13,5 11,5 19,5 1.280.0016.00
PG 21 M 25 x 1,5 NPT 3/4" 17,5 15,5 23,5 1.280.0021.00
PG 29 M 32 x 1,5 NPT 1" NPT 1 1/4" 24 19 26 1.280.0029.00
PG 36 M 40 x 1,5 NPT 1 1/2" 31 25 28 1.280.0036.00
PG 42 M 50 x 1,5 37 30 28 1.280.0042.00
PG 48 M 63 x 1,5 43 34 28 1.280.0048.00
Accessories

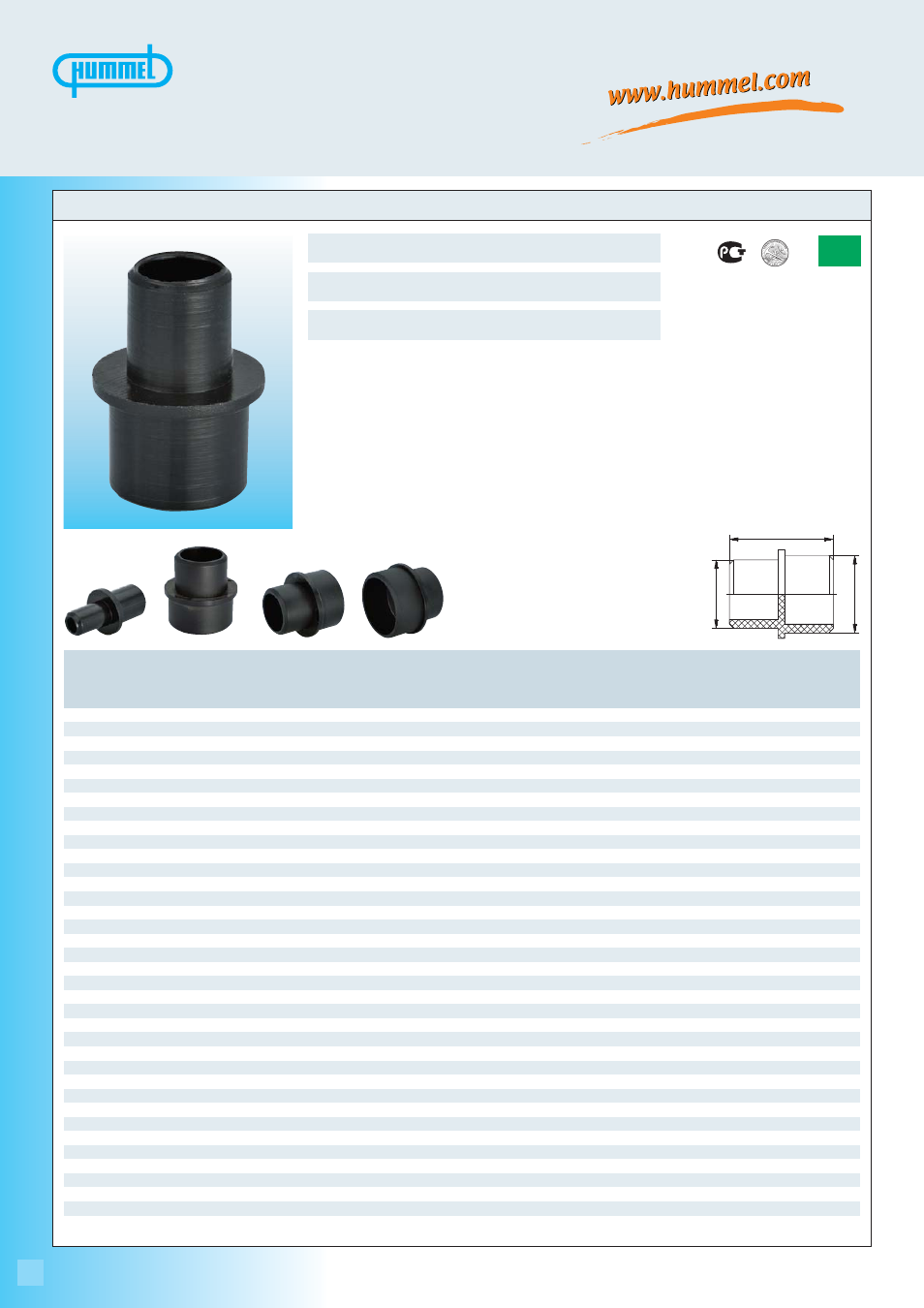

HSK-V Metr., PG, NPT
Colors black (RAL 9005)
Operating Temperature - 40 °C – 100 °C (- 40 °F – 212 °F)
Material Polyamide
Fits the following sizes D d L Number
mm mm mm
Dimensions and specifications may be changed without prior notice
