Northern Connectors Hummel Industrial Cable Gland Accessories - Manual (Page 12)

84
Ø mm
D
F
C
B
A F
C
C D
B
A
H
M
RoHS
M 16 x 1,5 1 4,3 49 47 37 15,5 29 35 1.312.1600.50 1.312.1601.50
M 20 x 1,5 1 4,5 49 47 37 15,5 29 35 1.312.2000.50 1.312.2001.50
M 25 x 1,5 1 6,0 69 65 51,5 21,5 41,5 44 1.312.2500.50 1.312.2501.50
M 32 x 1,5 2 6,5 90 78 64,5 9,5 64,5 55 1.312.3200.50 1.312.3201.50
M 40 x 1,5 2 6,5 99 94 79,5 10,5 79,5 66 1.312.4000.50 1.312.4001.50
M 50 x 1,5 2 6,5 116 101 87,5 12,5 87,5 76 1.312.5000.50 1.312.5001.50
PG 11 1 4,3 49 47 37 15,5 29 35 1.312.1100.11 1.312.1101.11
PG 16 1 4,3 49 47 37 15,5 29 35 1.312.1600.11 1.312.1601.11
PG 21 1 6,0 69 65 51,5 21,5 41,5 44 1.312.2100.11 1.312.2101.11
PG 29 2 6,5 90 78 64,5 9,5 64,5 55 1.312.2900.11 1.312.2901.11
PG 36 2 6,5 99 94 79,5 10,5 79,5 66 1.312.3600.11 1.312.3601.11
PG 48 2 6,5 116 101 87,5 12,5 87,5 76 1.312.4800.11 1.312.4801.11
Accessories

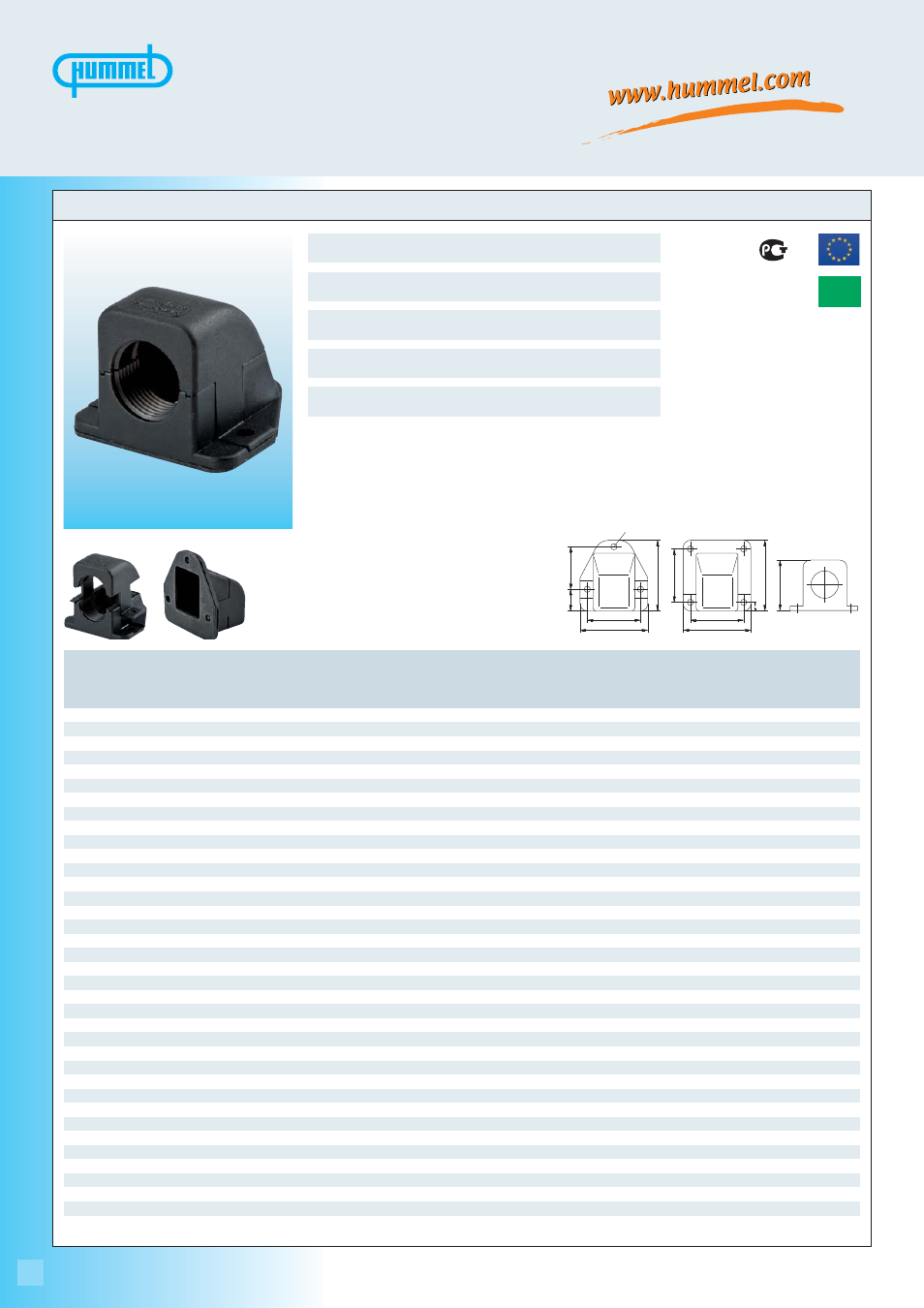

KF-G Metr., PG
Colors grey (RAL 7011), black (RAL 9005)
Operating Temperature - 40 °C – 110 °C (- 40 °F – 230 °F)
Material Polyamide
Protection IP 54
Dichtung Buna-N
Size Flange Ø A B C D F H Number Number
mm mm mm mm mm mm mm grey black
Dimensions and specifications may be changed without prior notice
Flange 1 Flange 2
