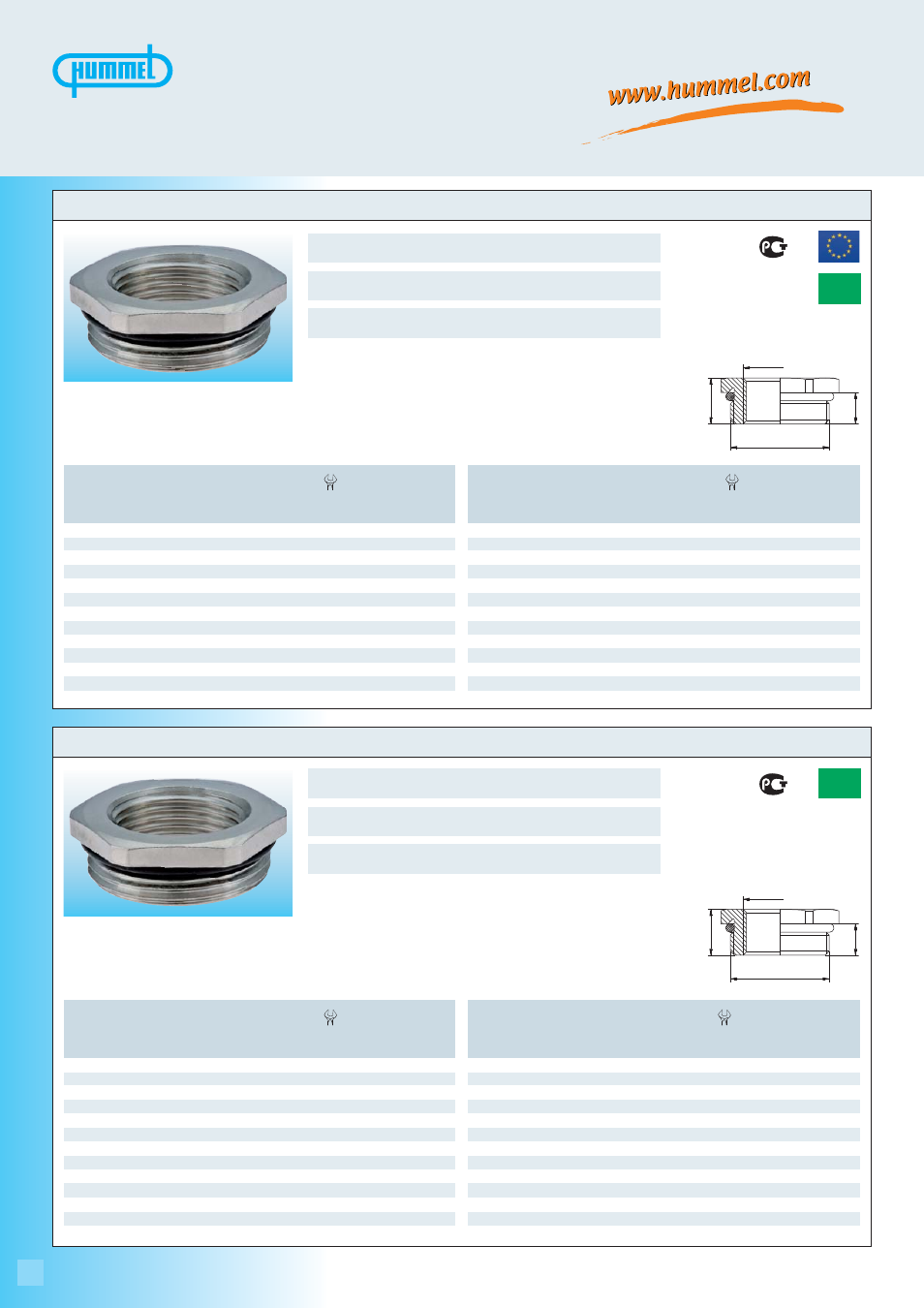

Northern Connectors Hummel Industrial Cable Gland Accessories - Manual (Page 22)

94
AG
IG
GL
H
AG
IG
GL
H
M
RoHS
RoHS
PG 29 PG 16 8 11,5 40 1.077.2916.01
PG 29 PG 21 8 11,5 40 1.077.2921.01
PG 36 PG 21 9 12,5 50 1.077.3621.01
PG 36 PG 29 9 12,5 50 1.077.3629.01
PG 42 PG 29 10 13,5 57 1.077.4229.01
PG 42 PG 36 10 13,5 57 1.077.4236.01
PG 48 PG 36 10 13,5 64 1.077.4836.01
PG 48 PG 42 10 13,5 64 1.077.4842.01
PG 9 PG 7 6 8,8 17 1.077.0907.01
PG 11 PG 7 6 9 20 1.077.1107.01
PG 11 PG 9 6 9 20 1.077.1109.01
PG 13,5 PG 9 6,5 9,5 22 1.077.1309.01
PG 13,5 PG 11 6,5 9,5 22 1.077.1311.01
PG 16 PG 9 6,5 9,5 24 1.077.1609.01
PG 16 PG 11 6,5 9,5 24 1.077.1611.01
PG 16 PG 13,5 6,5 9,5 24 1.077.1613.01
PG 21 PG 11 7 10,3 30 1.077.2111.01
PG 21 PG 13,5 7 10,3 30 1.077.2113.01
PG 21 PG 16 7 10,3 30 1.077.2116.01
M 16 x 1,5 M 12 x 1,5 5 8 17 1.077.1612.50
M 20 x 1,5 M 12 x 1,5 6 9 22 1.077.2012.50
M 20 x 1,5 M 16 x 1,5 6 9 22 1.077.2016.50
M 25 x 1,5 M 16 x 1,5 7 10 29 1.077.2516.50
M 25 x 1,5 M 20 x 1,5 7 10 29 1.077.2520.50
M 32 x 1,5 M 16 x 1,5 8 11 34 1.077.3216.50
M 32 x 1,5 M 20 x 1,5 8 11 35 1.077.3220.50
M 32 x 1,5 M 25 x 1,5 8 11 34 1.077.3225.50
M 40 x 1,5 M 20 x 1,5 8 12 43 1.077.4020.50
M 40 x 1,5 M 25 x 1,5 8 12 43 1.077.4025.50
M 40 x 1,5 M 32 x 1,5 8 12 43 1.077.4032.50
M 50 x 1,5 M 25 x 1,5 9 13 55 1.077.5025.50
M 50 x 1,5 M 32 x 1,5 9 13 55 1.077.5032.50
M 50 x 1,5 M 40 x 1,5 9 13 55 1.077.5040.50
M 63 x 1,5 M 32 x 1,5 10 14 65 1.077.6332.50
M 63 x 1,5 M 40 x 1,5 10 14 65 1.077.6340.50
M 63 x 1,5 M 50 x 1,5 10 14 65 1.077.6350.50
Material Nickel plated brass
O-Ring Buna-N
Material Nickel plated brass
O-Ring Buna-N
RSD-Ms PG
Accessories
RSD-Ms Metr.
AG IG GL H Number
mm mm mm mm
AG IG GL H Number
mm mm mm mm
AG IG GL H Number
mm mm mm mm
AG IG GL H Number
mm mm mm mm
Dimensions and specifications may be changed without prior notice
Advice:
- Other O-Ring materials upon request
Advice:
- Other O-Ring materials upon request
Operating Temperature - 40 °C – 100 °C
Operating Temperature - 40 °C – 100 °C
