88
S
d
RoHS
M 12 x 1,5 10 1,5 1.321.1200.57 1.321.1200.58 1.321.1200.59
M 16 x 1,5 12 1,5 1.321.1600.57 1.321.1600.58 1.321.1600.59
M 20 x 1,5 17 1,8 1.321.2000.57 1.321.2000.58 1.321.2000.59
M 25 x 1,5 22 2 1.321.2500.57 1.321.2500.58 1.321.2500.59
M 32 x 1,5 29 2 1.321.3200.57 1.321.3200.58 1.321.3200.59
M 40 x 1,5 35 2 1.321.4000.57 1.321.4000.58 1.321.4000.59
M 50 x 1,5 43 2 1.321.5000.57 1.321.5000.58 1.321.5000.59
M 63 x 1,5 55 2 1.321.6300.57 1.321.6300.58 1.321.6300.59
PG 7 10 1,5 1.321.0700.17 1.321.0700.21 1.321.0700.22
PG 9 12 1,5 1.321.0900.17 1.321.0900.21 1.321.0900.22
PG 11 16 1,5 1.321.1100.17 1.321.1100.21 1.321.1100.22
PG 13,5 17 1,8 1.321.1300.17 1.321.1300.21 1.321.1300.22
PG 16 18 1,5 1.321.1600.17 1.321.1600.21 1.321.1600.22
PG 21 26 2 1.321.2100.17 1.321.2100.21 1.321.2100.22
PG 29 33 2 1.321.2900.17 1.321.2900.21 1.321.2900.22
PG 36 43 2 1.321.3600.17 1.321.3600.21 1.321.3600.22
PG 42 50 2 1.321.4200.17 1.321.4200.21 1.321.4200.22
PG 48 55 2 1.321.4800.17 1.321.4800.21 1.321.4800.22
NPT 3/8" 13 2 1.321.3800.77 1.321.3800.78 1.321.3800.79
NPT 1/2" 19 1,8 1.321.1200.77 1.321.1200.78 1.321.1200.79
NPT 3/4" 22 2 1.321.3400.77 1.321.3400.78 1.321.3400.79
NPT 1" 29 2 1.321.1000.77 1.321.1000.78 1.321.1000.79
NPT 1 1/4" 38 2,5 1.321.5400.77 1.321.5400.78 1.321.5400.79
NPT 1 1/2" 45 2,5 1.321.6400.77 1.321.6400.78 1.321.6400.79

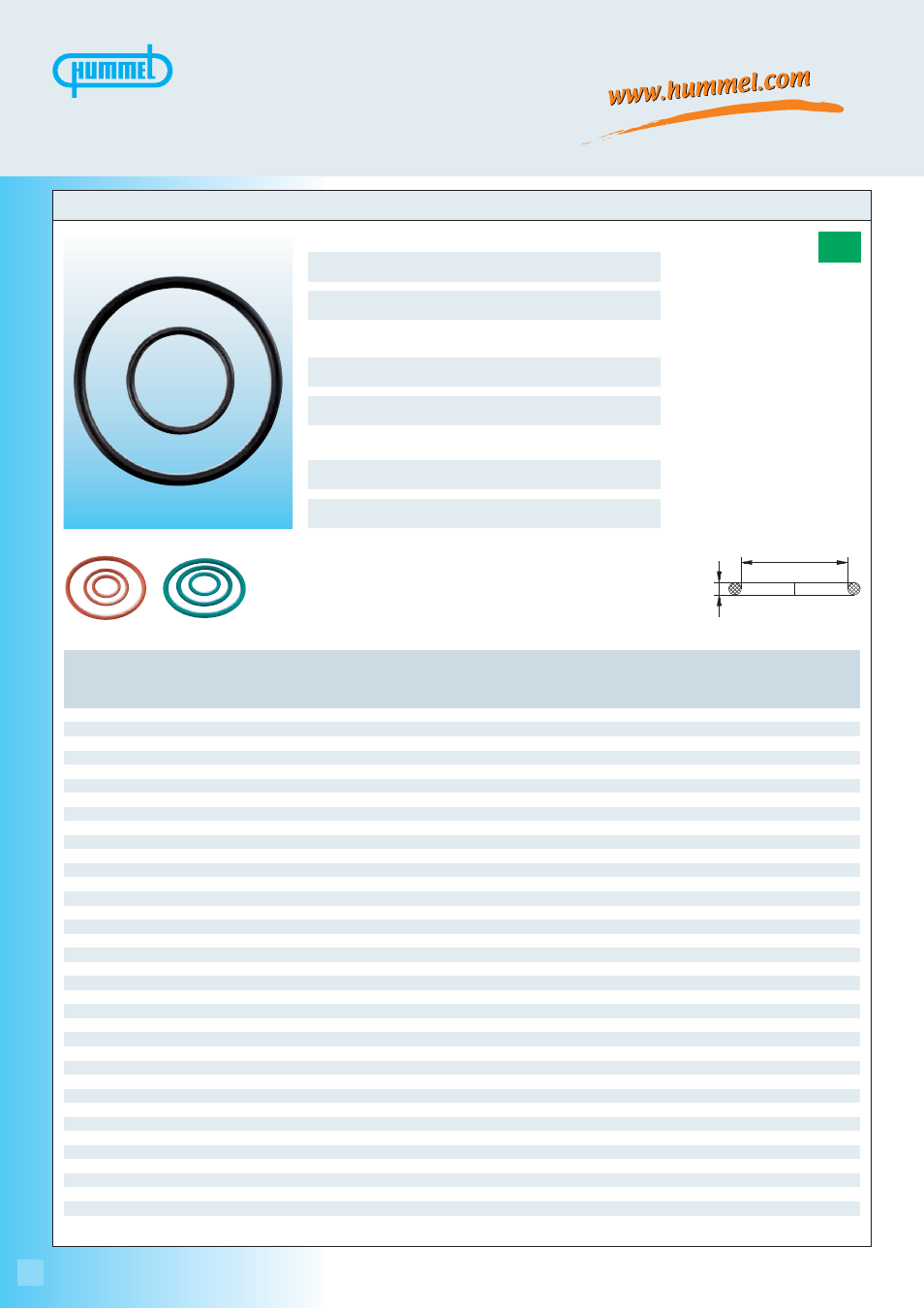

Accessories
O-Ring Metr., PG, NPT
Material Buna-N
O-Ring Buna-N
O-Ring FPM
O-Ring VMQ
Operating Temperature - 30 °C – 120 °C (- 22 °F – 248 °F)
Material FPM
Operating Temperature - 40 °C – 200 °C (- 40 °F – 392 °F)
Material VMQ (Silicone)
Operating Temperature - 60 °C – 250 °C (- 76 °F – 482 °F)
Fits the following sizes d S Number Number Number
mm mm Buna-N FPM VMQ
Dimensions and specifications may be changed without prior notice
O-Ring for HSK-K
