HHXD5 RIDE-ON TROWEL • OPERATION MANUAL — REV. #3 (08/15/14) — PAGE 39

MAINTENANCE

TROWEL ARM ADJUSTMENT

Use the following procedure to check and adjust trowel

arms, and check for worn or damaged components when

it becomes apparent that the trowel is finishing poorly or

in need of routine maintenance.
Look for the following indications. Trowel arm alignment,

worn spider bushings or bent trowel arms may the cause.

„

Are blades wearing unevenly? Is one blade completely

worn out while the others look new?

„

Does the machine have a perceptible rolling or bouncing

motion when in use?

„

Look at the machine while it is running; do the guard

rings “rock up and down” relative to the ground?

1. Place the trowel in a FLAT, LEVEL area.
A level, clean area to test the trowel prior to and after is

essential. Any unlevel spots in the floor or debris under the

trowel blades will give an incorrect perception of adjustment.

Ideally, a 5 x 5 Ft. (1.5 x 1.5 Meter) three-quarter inch (19

mm) thick FLAT steel plate should be used for testing.
2. Pitch the blades as flat as possible. The adjustment

bolts should all barely make contact with the lower

wear plate on the spider. If one is not making contact,

adjustment will be necessary. (Figure 35).

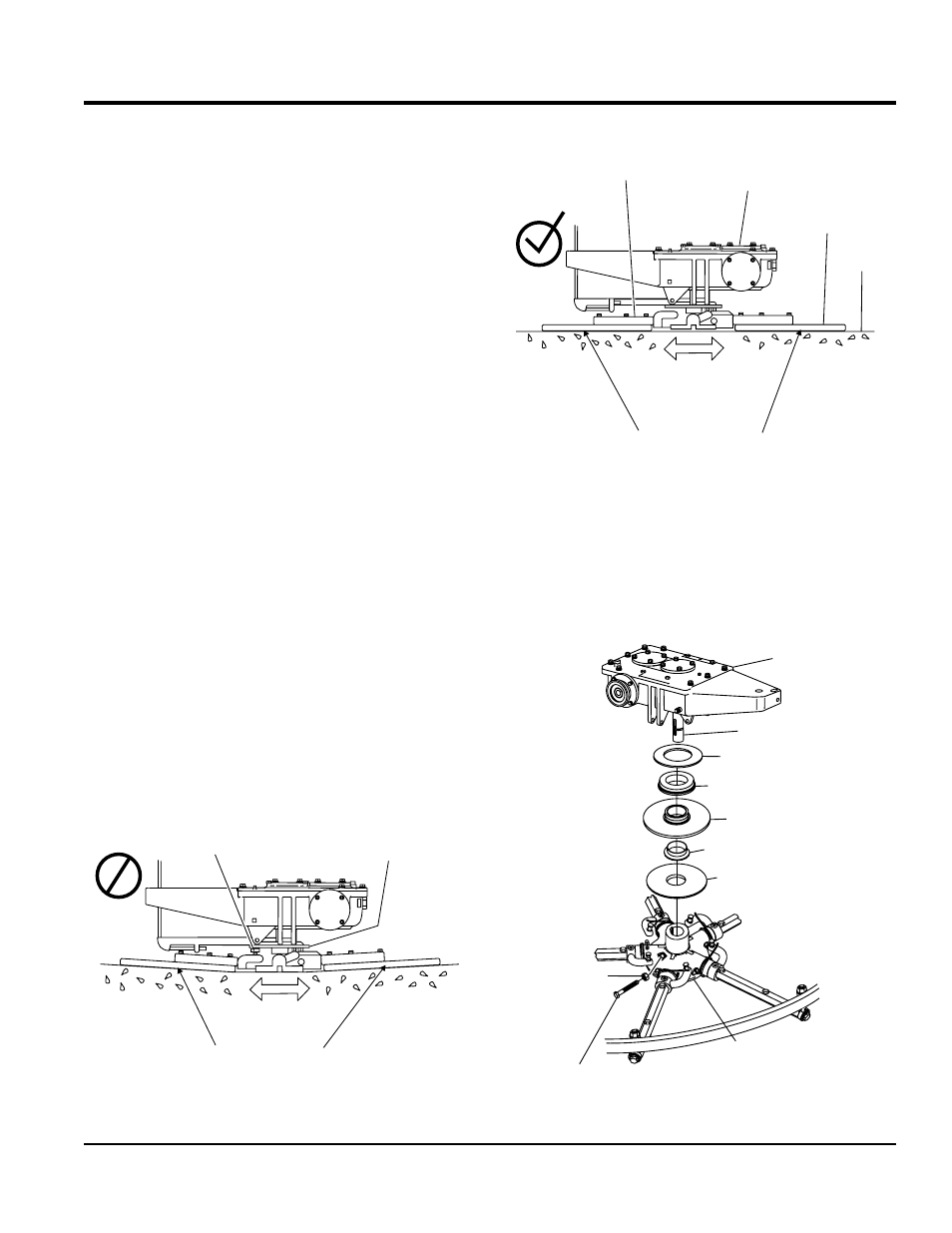

Figure 35 illustrates, "incorrect alignment", worn spider

bushings or bent trowel arms. Check that the adjustment

bolt is barely touching (0.10" max. clearance) lower wear

plate. All alignment bolts should be spaced the same
distance from the lower wear plate.

Figure 35. Incorrect Spider Plate Alignment

Adjustment Bolt

Surface

Dished Effect on

Finished Concrete

Lower Wear Plate

Figure 36 illustrates the "correct alignment " for a spider

plate (as shipped from the factory).

Figure 36. Correct Spider Plate Alignment

Spider Removal

Remove the spider assembly from the gearbox shaft as

follows:
1. Locate the cone point square head set screw (Figure

37) and attached jam nut found on the side of the spider
assembly.

Figure 37. Spider/Gearbox Removal

Surface

Gearbox

Correct Alignment

Trowel Arm

Mounting Bar

Blade

Gearbox Shaft

Upper Wear Plate

Thrust Collar Bearing

Thrust Collar

Thrust Collar Bushing

Lower Wear Plate

Jam Nut

Spider Plate

Square Head)

Set Screw (Cone Point,

Gearbox
