HHXD5 RIDE-ON TROWEL • OPERATION MANUAL — REV. #3 (08/15/14) — PAGE 35
MAINTENANCE (NEW STYLE CLUTCH)
2. Disconnect the left-side CV Axle from the left-side gearbox
and the lower drive pulley coupler. See Figure 30.

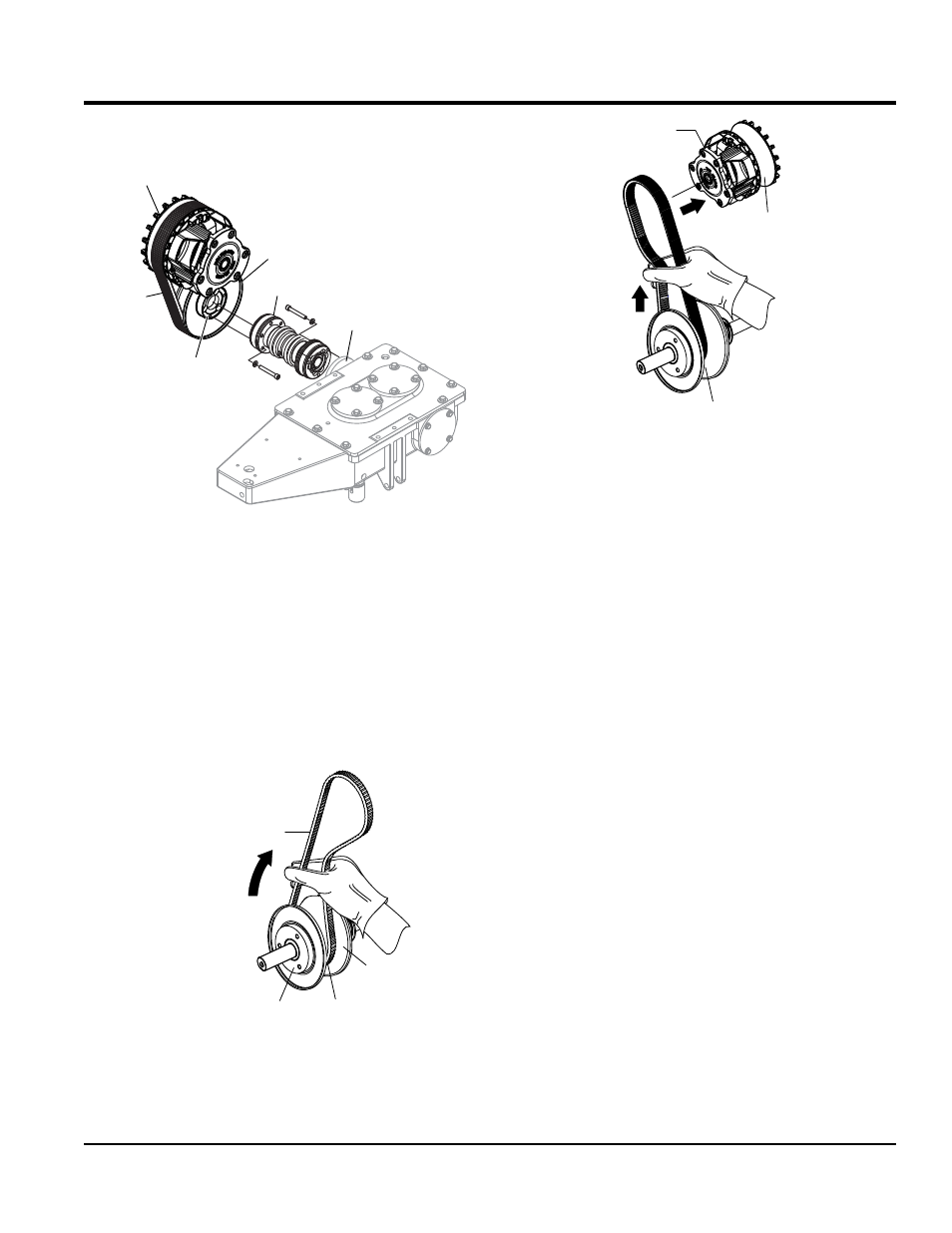

Figure 30. Remove Left-Side CV Axle
3. If the belt is not being reused (recommended), CUT
the drive belt. Ensure all belt remnants are removed
from the pulleys.
INSTALLING DRIVE BELT
1. Place new CVT belt over the lower pulley. Squeeze the
belt (Figure 31) and pull the belt upwards and towards
the rear of the trowel. This will spread open the faces
of the lower drive pulley.
Figure 31. Holding Lower Pulley Open
2. Place free end of CVT belt into upper pulley grooves
See Figure 32.
LEFT-SIDE
GEARBOX
GEARBOX
COUPLER
CV AXLE
LOWER
DRIVE
PULLEY
COUPLER
CVT
BELT
UPPER DRIVE
PULLEY/CLUTCH
CVT BELT
(P/N 23365)
MO LOWER
PULLEY
VEABLE
FACE
FIXED
FACE
PULL UPWARDS
AND TOWARDS
REAR OF TROWEL
Figure 32. Upper Pulley Belt Installation
3. Reconnect left-side CV Axle Assembly. to the left side
gearbox and lower drive pulley coupler. See Figure 30.
CLUTCH
UPPER
PULLEY
LOWER
PULLEY
