HHXD5 RIDE-ON TROWEL • OPERATION MANUAL — REV. #3 (08/15/14) — PAGE 19
CONTROLS AND INDICATORS

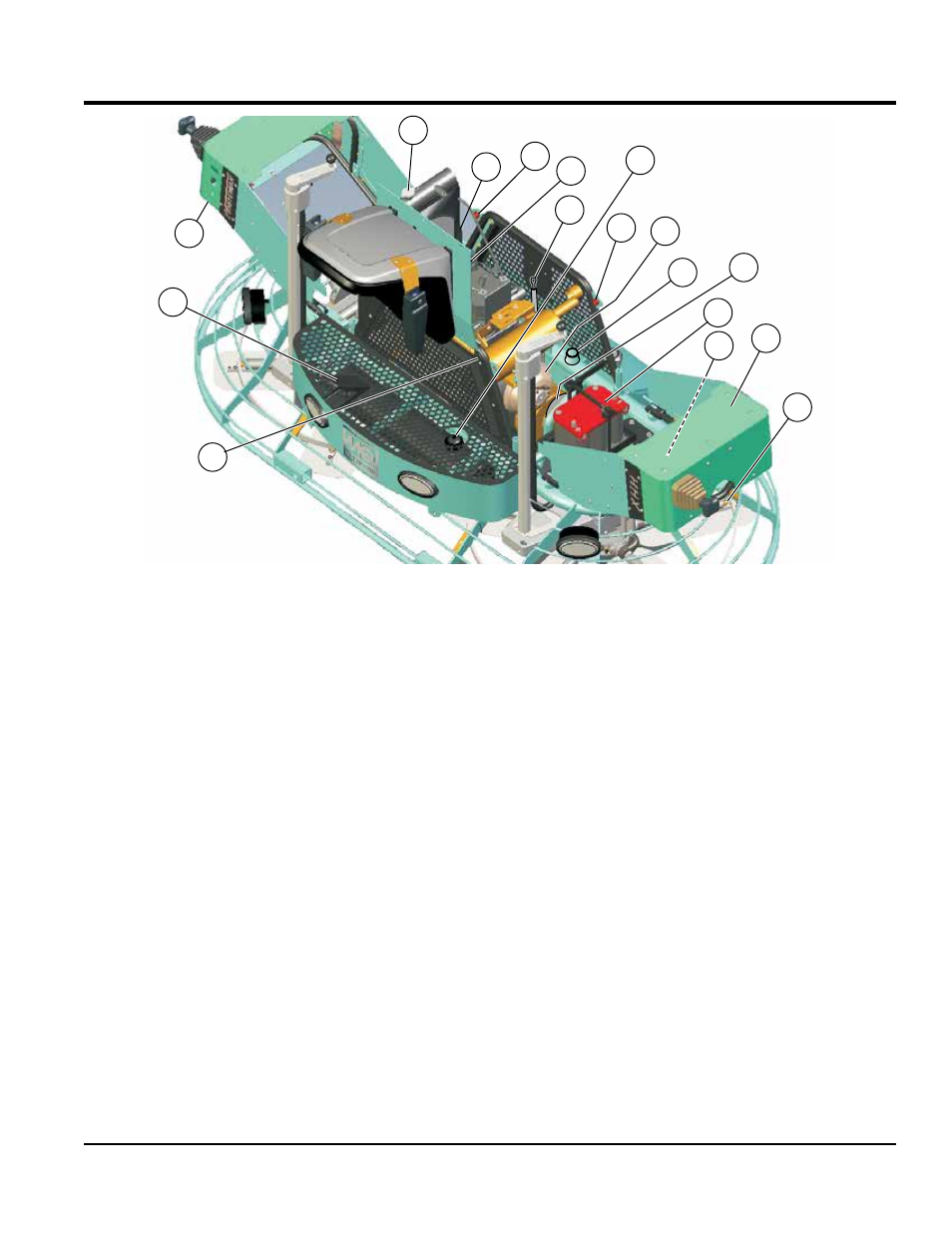

Figure 4. HHXD5 Controls and Indicators (Clamshell Open)
38
43
39
37
42
36
41
32
33
35
35
35
31
34
23
40
44
31. Radiator/Filler Cap — Holds coolant or water
necessary to keep engine at a safe operating
temperature. Remove this cap to add water or
antifreeze.
32. Blade Speed Pedal — Slow blade speed is
accomplished by slightly depressing the foot pedal
while maximum blade speed is accomplished by fully
depressing the pedal.
33. Overflow Bottle — Supplies coolant to the radiator
when radiator coolant level is low. Fill to indicated level
as shown on bottle.
34. Engine Oil Filler Cap — Remove this cap to add
engine oil.
35. Clamshell Securing Bolt Location (4 places) —
Remove to open clamshell.
36. Clutch and Belt — Drive Pulleys transfer power from
the engine to the gearboxes
37. Spare Belt Carrier — Contains a spare drive belt for
expedient belt replacement.
38. Battery — Provides +12V DC power to the electrical
system
39. Right Side Clamshell — Remove two bolts to open
for service and maintenance access.
40. Left Side Clamshell — Remove two bolts to open for
service and maintenance access.
41. Retardant Spray Filler Cap — Remove this cap to
add spray retardant.
42. Burp Tank — Hydraulic Fluid top-off point.
43. Test Port-Hydraulic Pressure — Hook test guage to
test port to determine hydraulic pressure during operation.
44. Retardant Spray Control Button — Located on both
joysticks. When pressed, allows retardant spray to flow
through the spray nozzle.
The following section is intended as a basic guide to the
ride-on trowel operation, and is not to be considered
a complete guide to concrete finishing. It is strongly
suggested that all operators (experienced and novice) read
“Slabs on Grade ” published by the American Concrete
Institute, Detroit Michigan.
