DIMENSIONS/SPECIFICATIONS

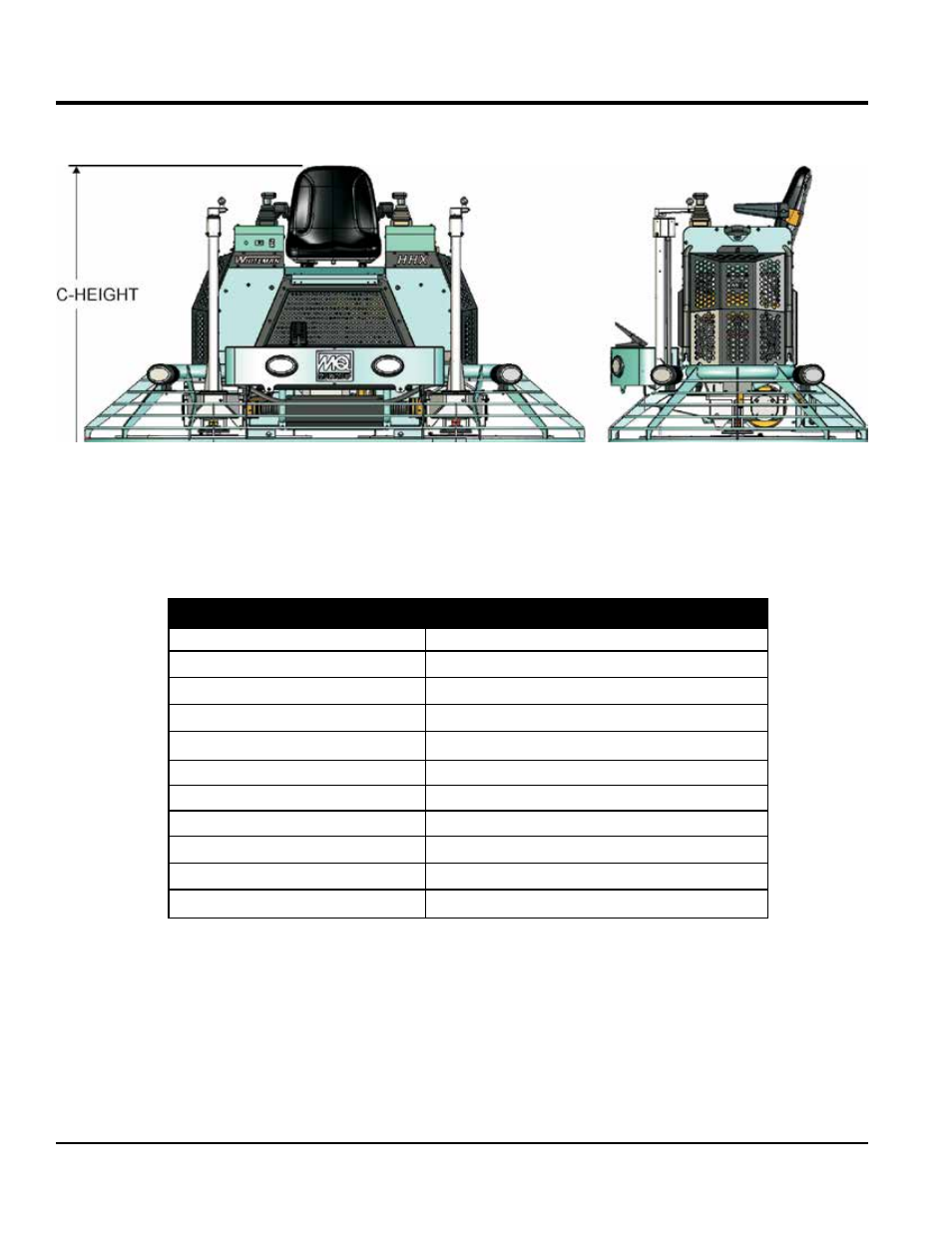

Figure 1. HHX Dimensions

Table 1. HHX Specifications

SPECIFICATION PARAMETER

HHXD5 (VANGUARD)

A–Length – in. (cm)

98.00 (249)

B–Width – in. (cm)

50.0 (127)

C–Height – in. (cm)

54.0 (137.2)

Weight – lbs. (kgs.) Operating

1,440 (658)

Weight – lbs. (kgs.) Shipping

1,515 (692)

Blade Tip Speed – FPM (m/s)

1425 (7.24)

Fuel Tank – gallons (liters)

9 (34)

Rotor – RPM

40 to 170

Path Width – in. (cm)

91 (231)

Hydraulic Oil4

Whiteman P/N 10139 0r ISO 68 AWMV
