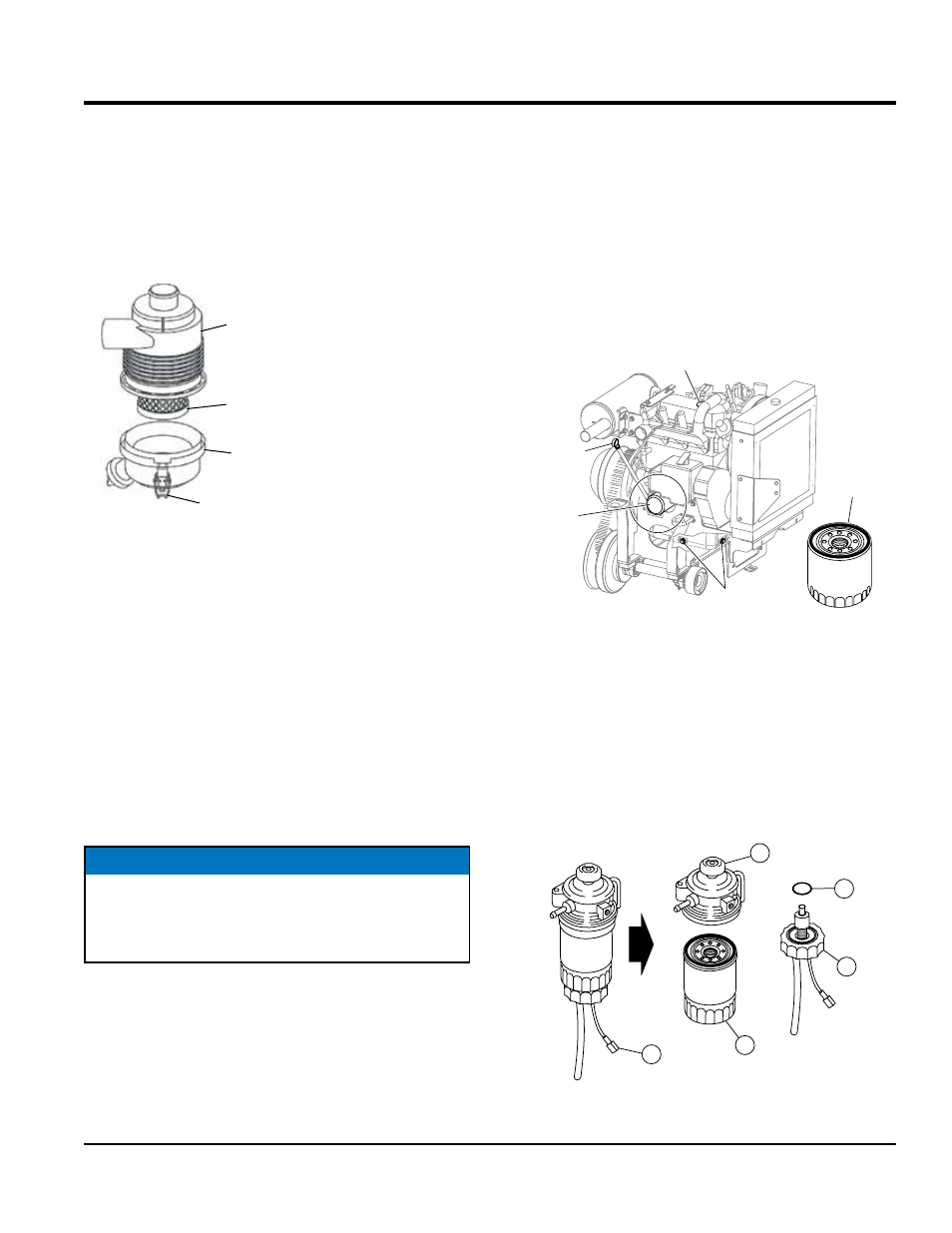

HHXD5 RIDE-ON TROWEL • OPERATION MANUAL — REV. #3 (08/15/14) — PAGE 27

MAINTENANCE

Air Cleaner (Daily)

The Briggs and Stratton Vanguard engine is equipped with

a replaceable, high-density paper air cleaner element.

Check the air cleaner daily or before starting the engine.

Check for and correct heavy buildup of dirt and debris along

with loose or damaged components, (Figure 13).

Figure 13. Air Cleaner

1. Unlock the cover clamps (4) and remove cover (3).
2. Remove cartridge (2) from air cleaner body (1).
3. Clean cartridge by gently tapping the end with the

handle of a screwdriver. Replace cartridge if very dirty

or damaged.

4. Carefully clean out the air cleaner cover.
5. Install cartridge in body.
6. Install cover and lock cover clamps.

Changing Engine Oil And Filter

1. Change the engine oil and filter after the first 5 hours

of use, then change oil every 6 months or 150 hours.

2. Remove the oil filler cap and fill engine crankcase with

recommended viscosity grade oil as listed in Table 5.

COVER

AIR CLEANER BODY

LATCHES (COVER CLAMPS)

CARTRIDGE

NOTICE

Operating the engine with loose or damaged air cleaner

components could allow unfiltered air into the engine

causing premature wear and failure.

Use high quality detergent oil classified "For Service

CF, or CF-4". Fill to the upper limit of dipstick. Do not

over-fill.

3. Crankcase oil capacity with oil filter replacement is 3.5

qts. (3.3 liters).

Oil Filter (300 Hours)

1. Replace the engine oil filter (Figure 14) every other oil

change or 300 hours. Refer to your engine manual for

specific details to perform this operation.

Figure 14. Oil FIlter Replacement

2. Be sure to coat the seal (Figure 14) of the new oil filter

with clean engine oil.

Fuel Filter

„

Replace the engine fuel filter (Figure 15) every 800

hours. Refer to your engine manual for specific details

to perform this operation.

Figure 15. Fuel Filter

Seal

Drain Plugs

Dipstick
Handle

Oil
Filter

Oil Filler Cap
