PAGE 18 — HHXD5 RIDE-ON TROWEL • OPERATION MANUAL — REV. #3 (08/15/14)
CONTROLS AND INDICATORS

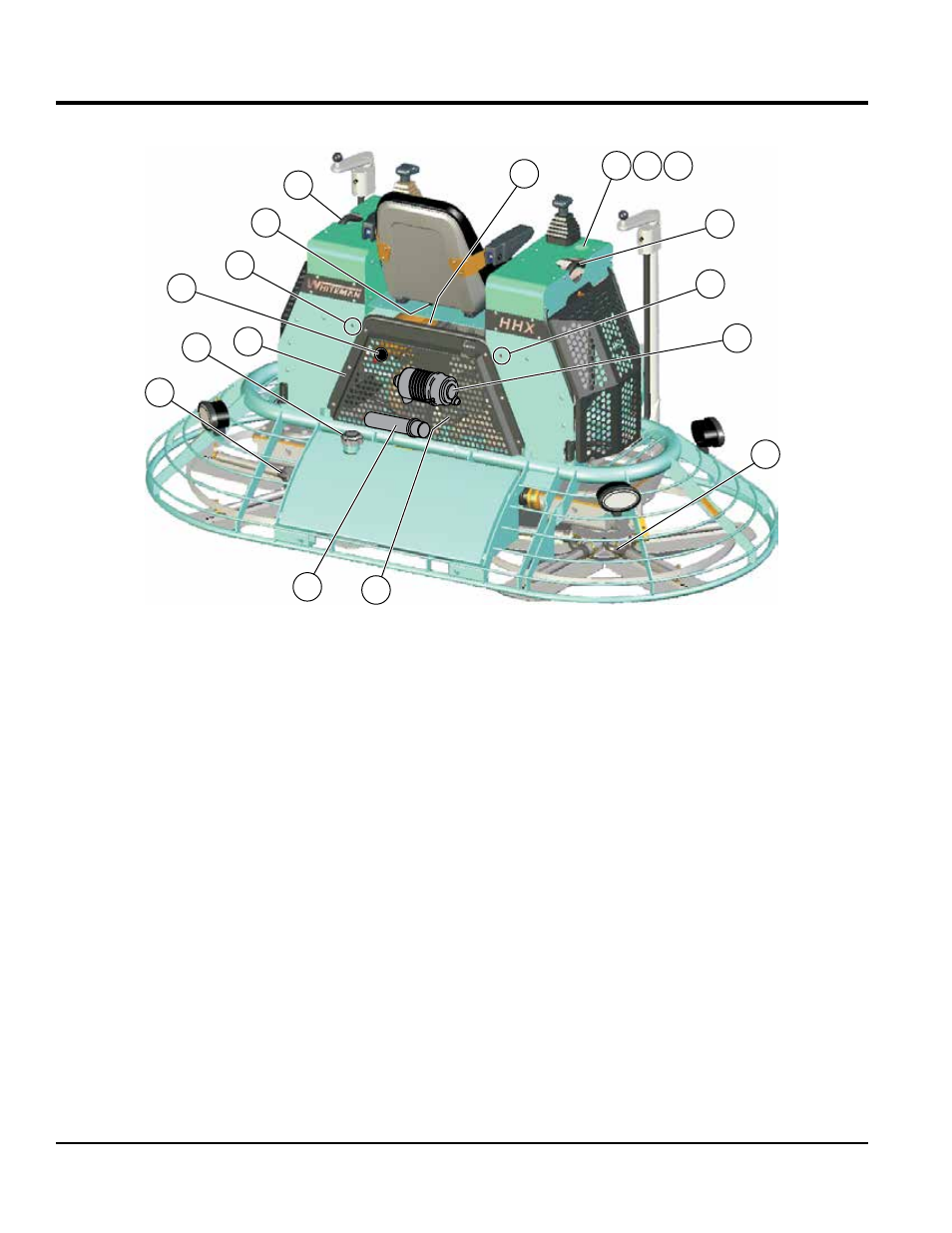

Figure 3. HHXD5 Controls and Indicators (Rear)
17
18
19
19
35
35
29
21
22
28
24 30
23
20
25 26 27
17. Rear Guard — Remove to access right side of
engine and internal components for service and
maintenance.
18. Safety-Stop Switch — Shuts down engine when
operator is not sitting in seat .
19. Lift Points — Located on both the left and right sides
of the main frame. Used when the trowel must be lifted
onto a concrete slab.
20. Right-Side Spider — Consists (basic) of trowel arms,
blades, wear plate, and thrust collar etc.
21. Left-Side Spider — Consists (basic) of trowel arms,
blades, wear plate, and thrust collar etc.
22. Fuel Filler Cap — Remove this cap to add fuel.
23. Engine Dip Stick — Indicates engine oil level. Add
oil as required.
24. Oil Filter — Provides oil filtering for the engine.
25. Oil Indicator Light — Lights red when oil pressure
is low.
26. Water Temperature Light — Lights red when water
temperature is high.
27. Charge Indicator — Lights red when electrical system
is not charging properly.
28. Exhaust Outlet — Exhaust gases routed through
muffler and out the back of the rear guard.
29. Air Filter Assembly — Helps prevent dirt and debris
from entering the fuel system. Lift Locking Latch on
cannister to gain access to filter element.
30. Document Box — Use to hold and protect Operation
Manual.
