HHXD5 RIDE-ON TROWEL • OPERATION MANUAL — REV. #3 (08/15/14) — PAGE 33
MAINTENANCE (OLD STYLE CLUTCH)
Clutch
This clutch system provides a high pulley ratio (a low gear-
so to speak) to start out and a low pulley ratio ( a high
gear- so to speak) for a high speed operation, with infinite
variation between the two.
This means that it will not be necessary to give full throttle
in order to "break the blades/pans loose". The machine can
slowly be brought up to speed.

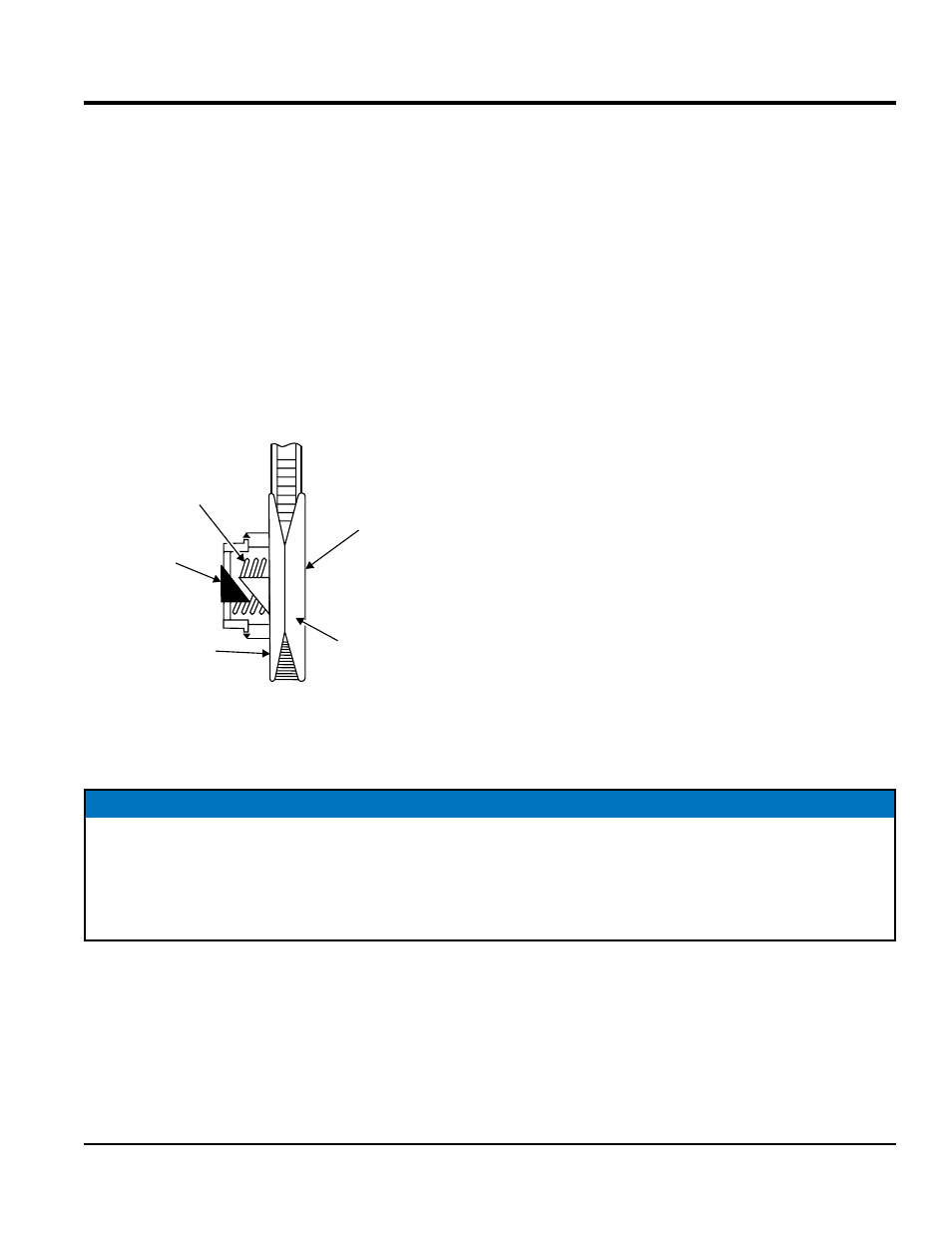

The torque sensitive pulley (Figure 27) utilizes a spring
and cam bracket. Peak performance results from proper
interaction between the driven pulley spring and the ramp
angle of the cam bracket.
Figure 27. Pulley Spring and Cam Bracket
DRIVEN PULLEY
FIXED FACE MOVEABLE
FACE
CAM
BRACKET
SPRING
NOTICE
If replacement of the clutch is required, use clutch replacement kit, P/N 23447, to upgrade to Multi-Clutch system. New
style drive assembly must be installed per instruction sheet, P/N 23448, included with clutch replacement kit.
Old style Comet clutch is no longer available. Multi-Clutch components are not interchangeable with the prior Hoffco
Comet drive system. The Hoffco Comet CVT system must be replaced for combatibility with the new equipment.
