C-30HD — PARTS & OPERATION MANUAL — REV. #4 (03/06/01) — PAGE 87

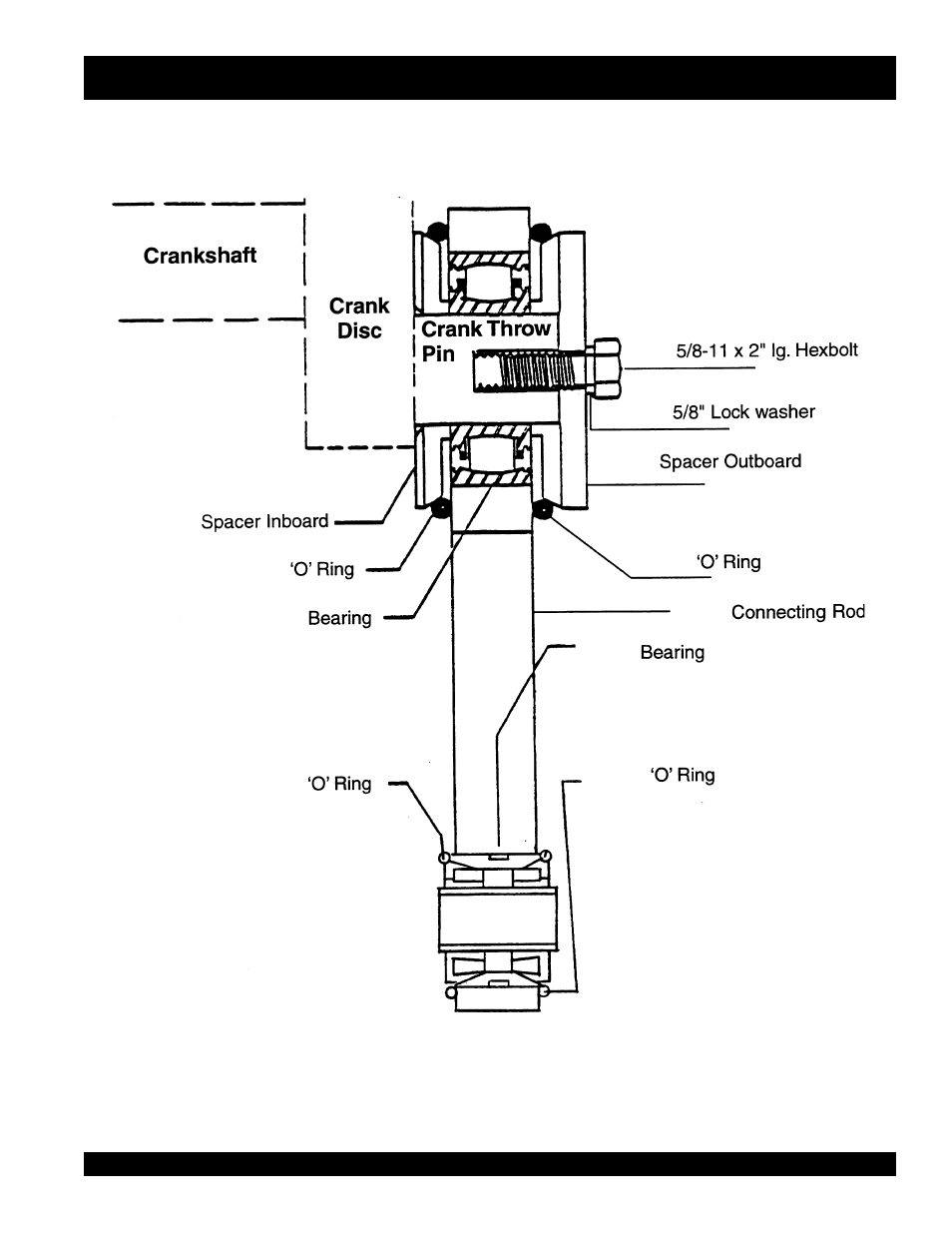

C-30HD — SERVICE INFORMATION CONNECTING ROD ASSEMBLY EM20328T (NEW STYLE)

(EM104)

(EM602)

EM20335-

EM20336 —

EM20338 —

EM20337 —

EM20816 —

EM20336-

EM20364-

EM20333-

EM20816-

NOTE: Inspect the bolt regularly as it
must remain tight to hold the bearing
assebly on the crabk throw pin.
