PAGE 58 — C-30HD — PARTS & OPERATION MANUAL — REV. #4 (03/06/01)

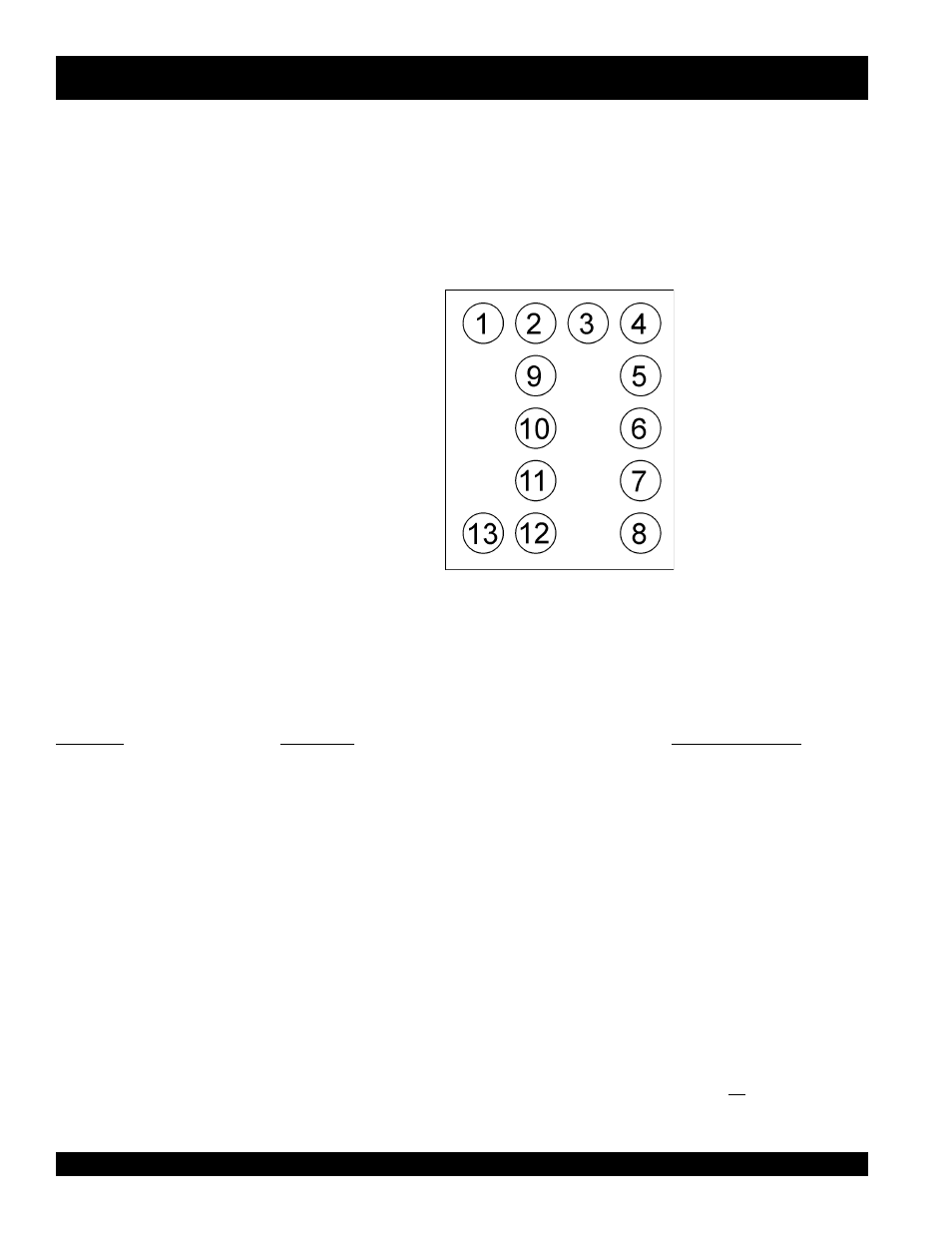

C-30HD — CENTRAL GREASE LUBRICATION PANEL EFFECTIVE S/N 970101
FITTING LOCATION AND PLASTIC HOSE LENGTH
POSITION LOCATION LENGTH OF LINES
1 ....................................................FLANGE BEARING (CRANKSHAFT) ................................................... 28"
2 ....................................................CONNECTING ROD ............................................................................ 31"
3 ....................................................CAM BEARING .................................................................................... 28"
4 ....................................................STEEL BEARING BLOCK (SQUARE) .................................................. 34"
5 ....................................................ROCKER ARM UPPER (CRANKSHAFT SIDE) .................................... 10"
6 ....................................................PILLOW BLOCK BEARINGS (COUNTERSHAFT) ............................... 15"
7 ....................................................LOWER ROCKER ARM ....................................................................... 28"
8 ....................................................ROCKER ARM LOWER (CHAIN SIDE) ................................................ 26"
9 ....................................................PILLOW BLOCK BEARINGS (COUNTERSHAFT) ............................... 20"
10 .................................................. ROCKER ARM UPPER (PULLEY SIDE) .............................................. 20"
11 .................................................. CONNECTING ROD LOWER .............................................................. 40"
12 .................................................. PISTON GUIDE .................................................................................... 42"
13 .................................................. PISTON ROD ....................................................................................... 42"
TOTAL LENGTH OF LINES REQUIRED .............................................. 364"
EM509306 PANEL ASSY COMPLETE
NOTE: P/N
EM16495
GREASE LINE
(sold per foot)
EM505489 HOSE GREASE ZERK-12 REQUIRED
EM505490 45° GREASE ZERK-1 REQUIRED
