PAGE 80 — C-30HD — PARTS & OPERATION MANUAL — REV. #4 (03/06/01)
C-30HD — SERVICE INFORMATION MANUFACTURING CHANGES

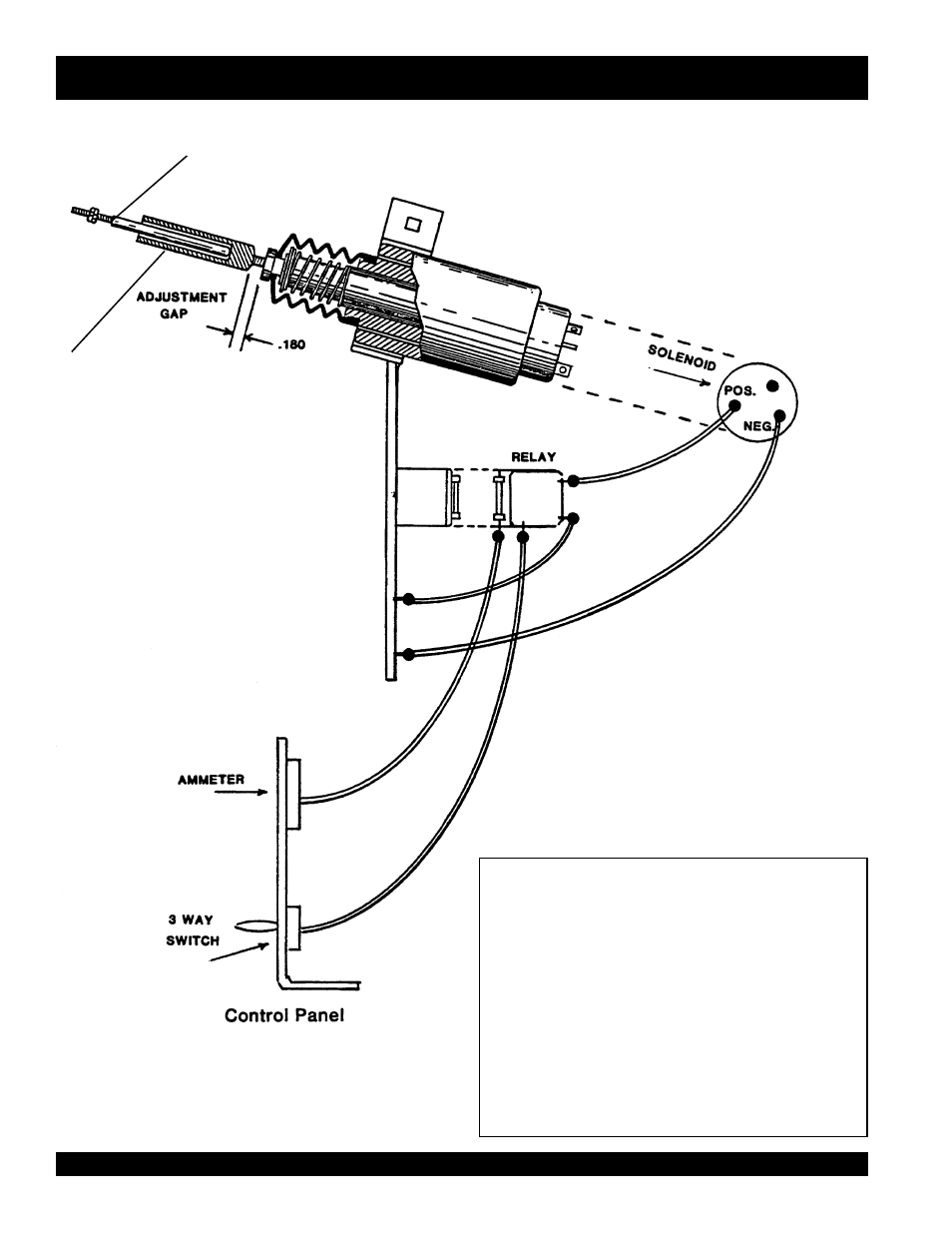

Adjustment
Make sure the rod is screwed completely into the
carburetor bellcrank and the nut is locked down. The
rod should be aligned in the center of the tube
assembly by shimming the solenoid inside the clamp
assembly so there is no binding. The solenoid
should be pushed toward the carburetor and the
spring completely compressed. Then allow the
spring to push the solenoid back through the clamp
0.75 inch and tighten the clamp. The solenoid is not
adjusted. Be sure to coat the rod and tube with
grease.
New Remote Control Assembly
Conversion: Part No. EM14728
EM20714
EM20715
ENGINE RPM (GAS)
IDLE
950 RPM +/- 50
MAX. 2525 RPM +/- 85
ENGINE RPM (DIESEL)
IDLE
1050 RPM +/- 50
MAX. 2525 RPM +/- 25
