PAGE 38 — C-30HD — PARTS & OPERATION MANUAL — REV. #4 (03/06/01)
Note:
CLUTCH ASSY (BLM 6") P/N
EM14320A HAS BEEN REPLACED
BY CLUTCH ASSY P/N EM14320
(8"
CLUTCH)
THE CLUTCH PACK FOR 6"
CLUTCH IS STILL AVAILABLE
UNDER P/N EM60HB

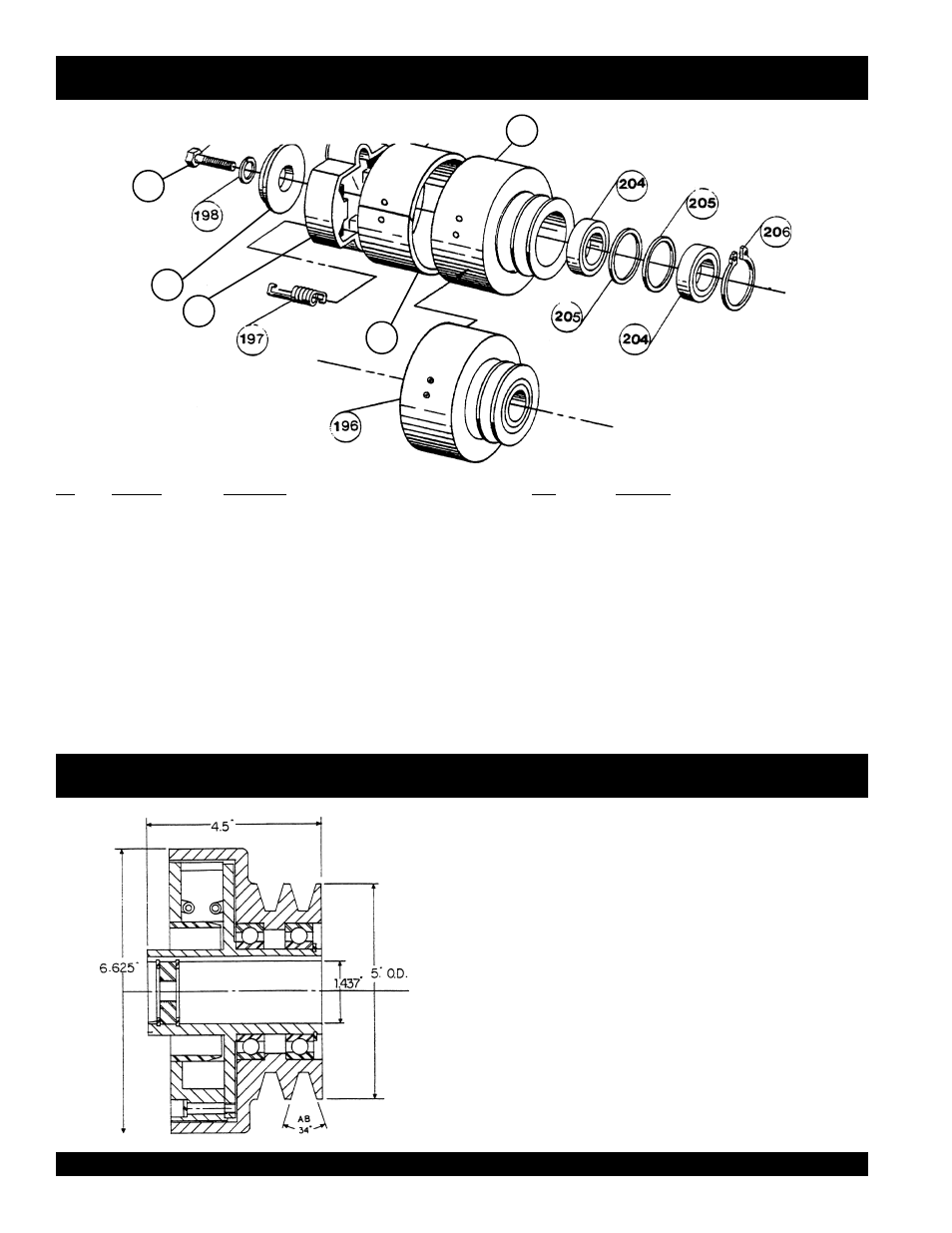

C-30HD — CLUTCH ASSEMBLY — ALL MACHINES PRIOR TO S/N 960801 (August 1996)
C-30HD CONCRETE PUMP
CLUTCH ASSEMBLY
ALL MACHINES UP TO S/N 960801
NO.
PART NO.
PART NAME
QTY.
REMARKS
196
EM14320
CLUTCH ASSEMBLY (8" DIA) ................................... 1 .................... INCLS. ALL ITEMS W/
*
197
*
EM918050
CLUTCH SPRING ...................................................... 2 .................... REPLACES EM26309
198
*
EM923346
1/2 LOCK WASHER .................................................... 1 .................... REPLACES EM606
199
*
EM963564
1/2-13X1 1/4 HEX BOLT ............................................ 1 .................... REPLACES EM139
200
*
EM628
SPECIAL WASHER
1
201
*
EM26321
ROTOR ASSEMBLY
1
202
*
EM26310
CLUTCH LINING
1
203
*
EM26322
CLUTCH HOUSING
1
204
*
EM902204
CLUTCH BEARING .................................................... 2 .................... REPLACES EM26311
205
*
EM926066
RETAINING RING ....................................................... 2 .................... REPLACES EM801
206
*
EM926053
RETAINING RING ....................................................... 1 .................... REPLACES EM800
C-30HD — CLUTCH ASSEMBLY — ALL MACHINES S/N 960801 THRU 980400 (August 1996)
203
202
201
200
199
