C-30HD — PARTS & OPERATION MANUAL — REV. #4 (03/06/01) — PAGE 81
C-30HD — SERVICE INFORMATION: REMOTE CONTROL

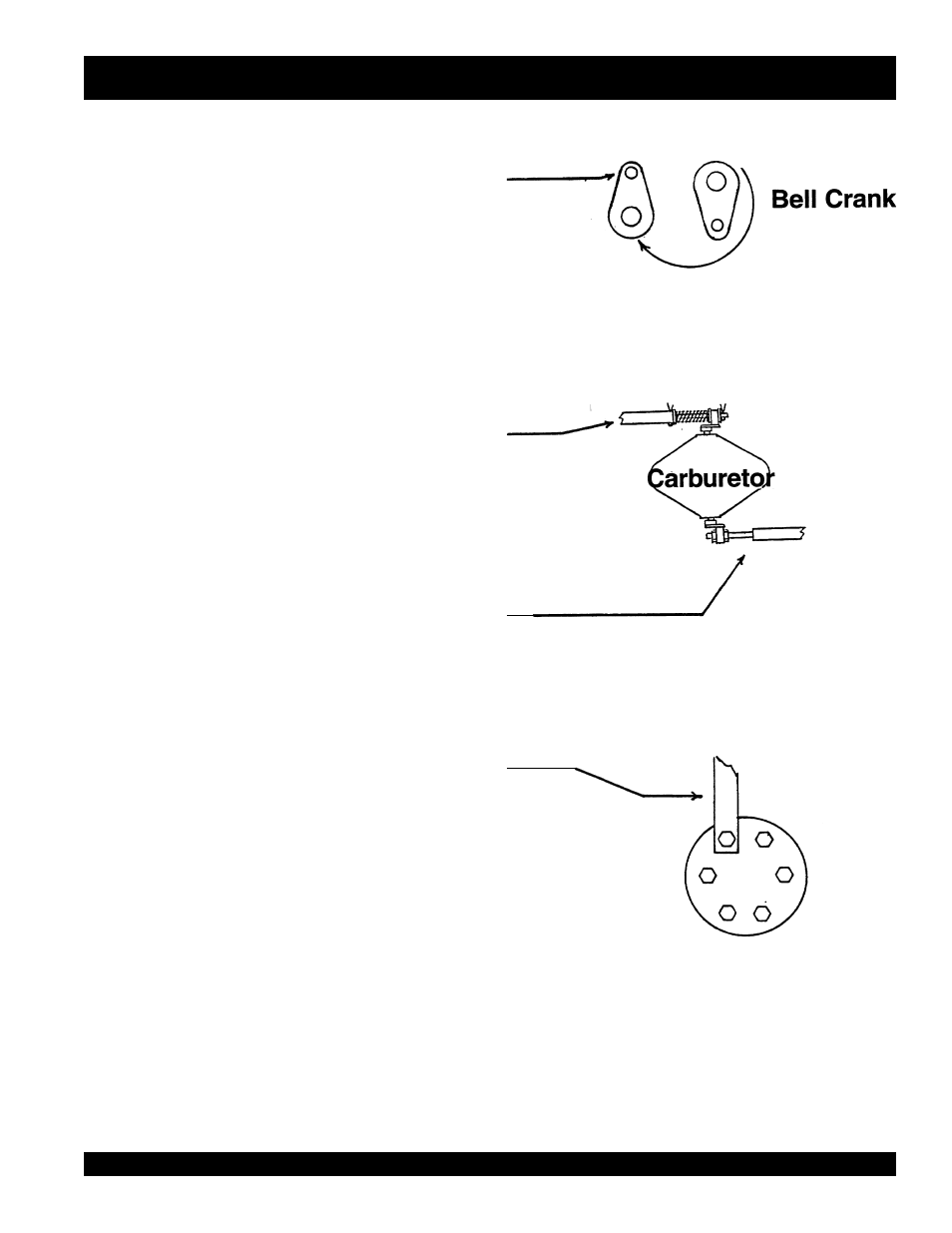

1. Turn Bell Crank on carburetor with Swivel End up. Bell Crank
2. Drill .156 dia. hole through Bell Crank swivel on Throttle
side of carburetor. Insert Rod & Spring assembly P/N
EM14729 and fasten with cotter pin. Carburetor
3. Insert linkage P/N EM20714 into Bell Crank on solenoid
side of carburetor and fasten with nut.
4. Insert linkage P/N EM20714 into extension on Remote
Control unit and bolt bracket P/N EM20704
on clutch side of engine.
