operation
DiSCHarging WaTer
The following procedures shows how to discharge water
from the water tank using the CAM and groove male QD.
couplers.
1. Remove dust cap from the desired CAM and groove
male QD port from the upper manifold.
2. If desired, connect suction hoses to QD ports as
required.
3. Place spray bar and manifold control handles in the
discharge position as referenced in Table 5.
4. Figure 20 represent a typical water discharge
application without discharge hoses.

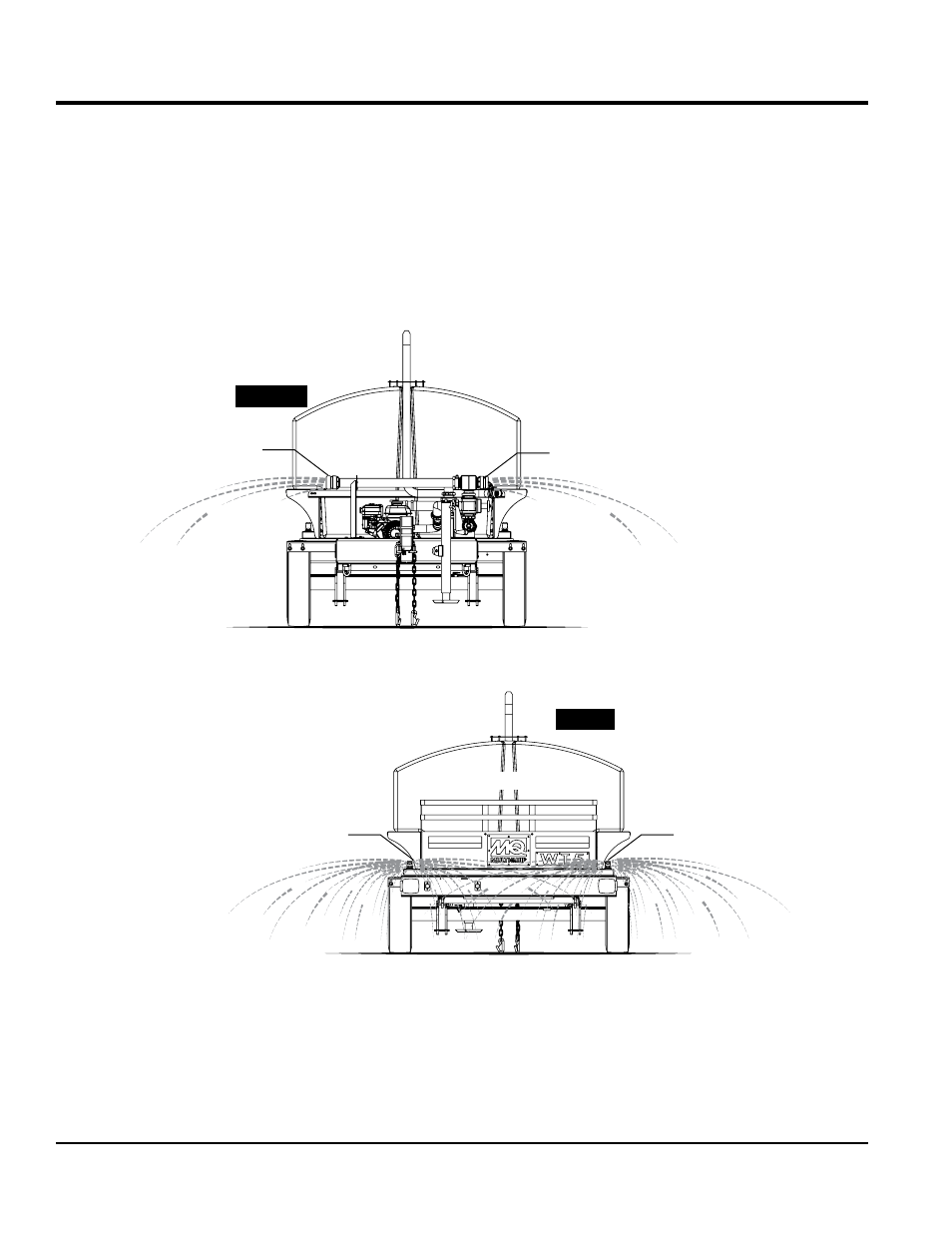

Figure 20. Discharging Water
SPRAY SPRAY
2.0” CAM AND
GROOVE MALE QD
2.0” CAM AND
GROOVE MALE QD
FRONT
REAR
