Operation, Figure 16. pump control handles, Le f t – Multiquip WTE5C Operation Manual User Manual
Page 20
page 20 — WT5C/WTe5C WaTer Trailer • operaTion manual — rev. #1 (06/05/13)
operation
Table 5. pump Control Handle operation
operational
manifold
Control Handle
manifold
Couplers
Spray Bar
Control Handle
Rear
Spray
Engine Start/Parked
Position 1
(Vertical)
OFF
Position B
(Horizontal)
OFF
Suction
Position 2
(Horizontal/Left)
ON
Position B
(Horizontal)
OFF
Discharge
Position 3
(Horizontal/Right)
ON
Position B
(Horizontal)
OFF
Discharge/Spray
Position 3
(Horizontal/Right)
ON
Position A
(Vertical)
ON
Spray Only
Dust Caps Attached
To All 3 Ports
Position 3
(Horizontal/Right)
ON
Position A
(Vertical)
ON

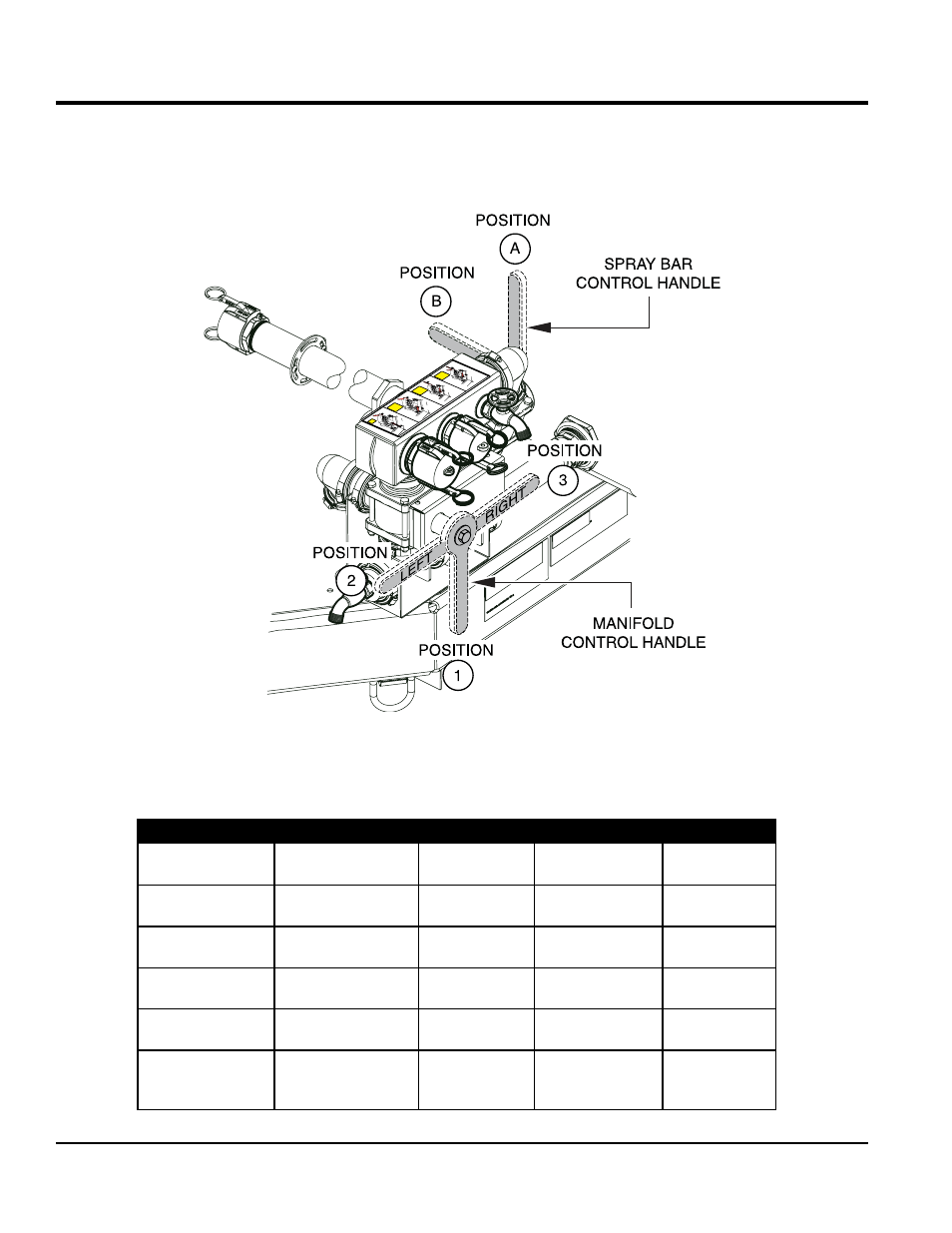

Reference Figure 16 and Table 5 for the various control
handle operatiing positions when using the Manifold and
Spray Bar Control Handles.
Figure 16. Pump Control Handles
