COMPONENTS
4
3
5
2
8
6
7
1
10
9
WATER TANK
(MVC82VEW ONLY)

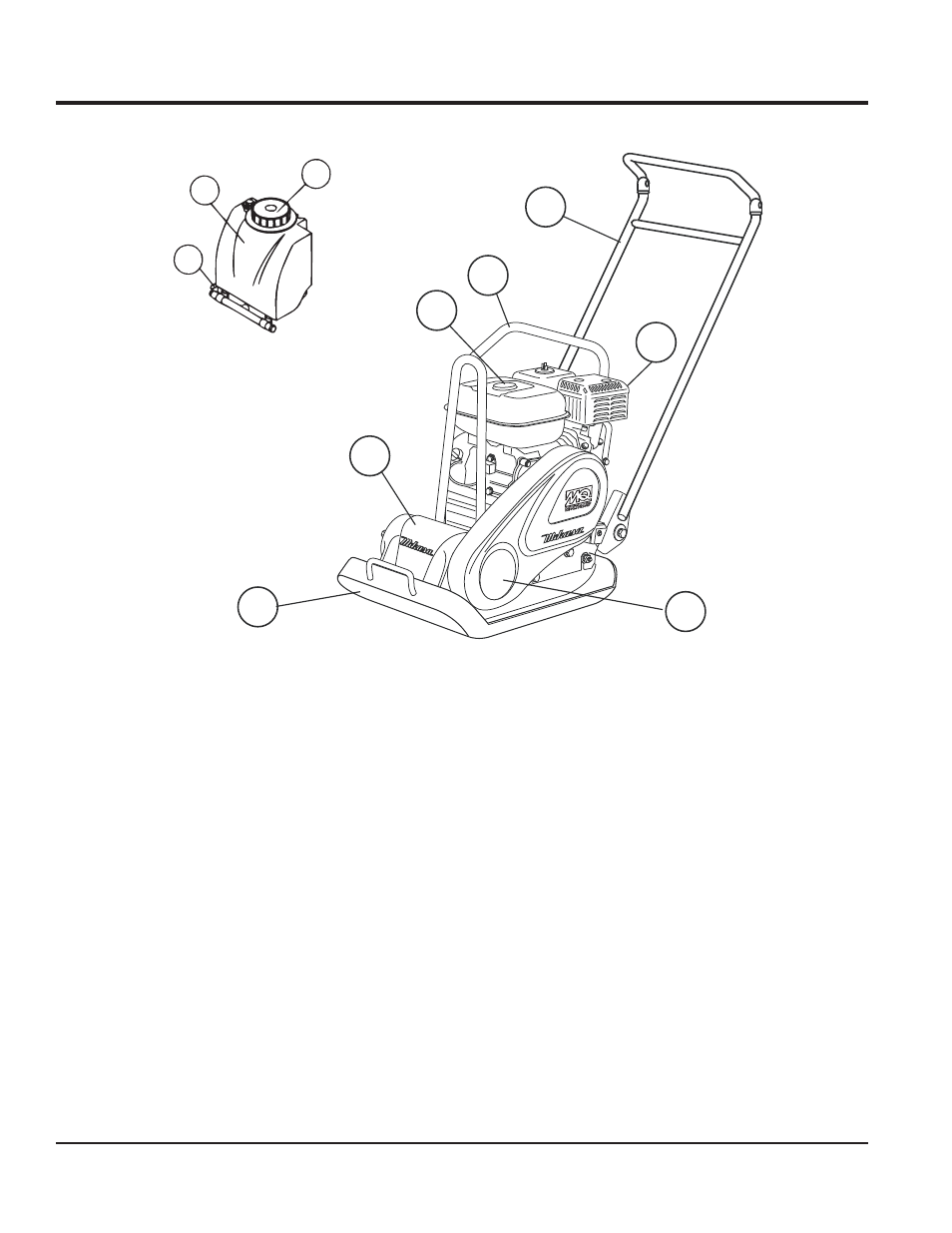

MVC82VE/VEW Controls and Components
Figure 2.
Figure 2 shows the location of the basic controls and
components of the MVC82VE/VEW Plate Compactor. The
function of each control is described below:
Water Tank Cap (VEW Only)
1.
— Remove this cap to
add water to the water tank.
Fuel Tank Cap
2.
— Remove this cap to add fuel.
Lifting Bale
3.
— When lifting of the compactor is
required either by forklift, crane, etc., tie rope or chain
around this lifting point.
Handle Bar
4.
— When operating the compactor use this
handle bar to maneuver the compactor.
Gasoline Engine
5.
— This plate compactor uses a
ROBIN EX170D40103 engine. Refer to the ROBIN
owner's manual for engine information and related
topics.
Belt Cover
6.
— Remove this cover to gain access to the
V-belts. NEVER run the compactor without the V-belt
cover. If the V-belt cover is not installed, the possibility
exists that your hand may get caught between the V-belt
and clutch, causing serious injury and bodily harm.
Vibrating Plate
7.
— A fl at, open plate made of durable
cast iron construction used in the compacting of soil.
Vibration Case
8.
— Encloses the eccentric, gears and
counter weights.
Water Shut-Off Valve (VEW only)
9.
— Turn this valve
downward to let water fl ow from the water tank to the
water tube.
Water Tank (VEW only)
10.
— Holds 11.6 quarts of
water (removable, no tools required). DO NOT FILL
WITH DIESEL FUEL OR GASOLINE AS THIS
CREATES BOTH A SAFETY AND ENVIRONMENTAL
HAZARD!
