PAGE 12 — MVC82VE/VEW COMPACTOR • OPERATION AND PARTS MANUAL — REV. #0 (02/05/09)

DIMENSIONS

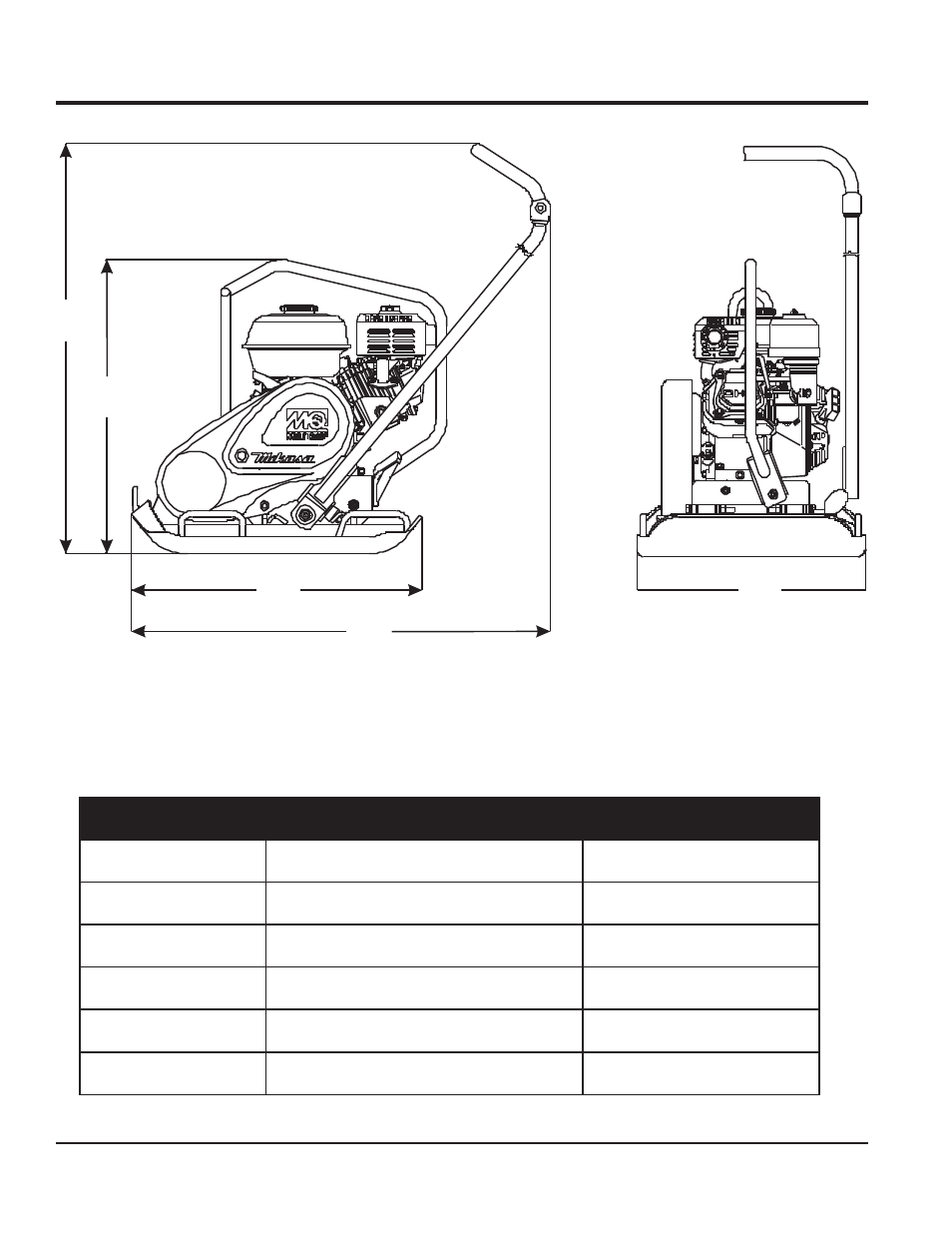

MVC82VE/VEW Dimensions

Figure 1.

Dimensions

Table 3.

Reference

Description

Measurement

A

Length (including handle)

38.2 in. (970 mm)

B

Height (without handle)

22.4 in. (570 mm)

C

Height (including handle)

38 in (965 mm)

D

Length of Plate

22.4 in (570 mm)

E

Width of Plate

17.7 in (450 mm)

C

B

E

A

D
