VR-36HA • VIBRATORY ROLLER — PARTS & OPERATION MANUAL — REV. 6 (06/13/06) — PAGE 63
VR-36HA — SERVICE INFORMATION
4.3 Ignition Switch
The ignition switch is a three position type switch. “OFF,” “ON,”
and “START.” In the “OFF” position, all circuits are open. In the
“ON” position, the vibration, fuel pump, voltage regulator, hour
meter, and fuel shut down solenoid are powered. In the “START”
position, all of the “ON” positions are powered, and the starter
circuit is powered via the neutral safety switch.
Switch Continuity Across Voltage
Position Terminals 12 V DC
OFF .................... G - M ..................................... B
ON ...................... B - L ....................................... L
START ................ B - S ....................................... S
4.4 Starter Solenoid
The starter solenoid is used to allow the use of high amperage
for starter operation. This solenoid is connected to the battery.
When the starter position is utilized on the ignition switch, it is
engaged to connect the battery to the starter for high amperage
operation.
4.5 Fuses
There are two fuses in the system for circuit protection. They are
located beside the starter solenoid in the engine compartment.
These fuses are built into the wiring harness.
Charge = 25 Amps
Electrical = 25 Amps
BACK-UP ALARM
Green
Red
White
Black

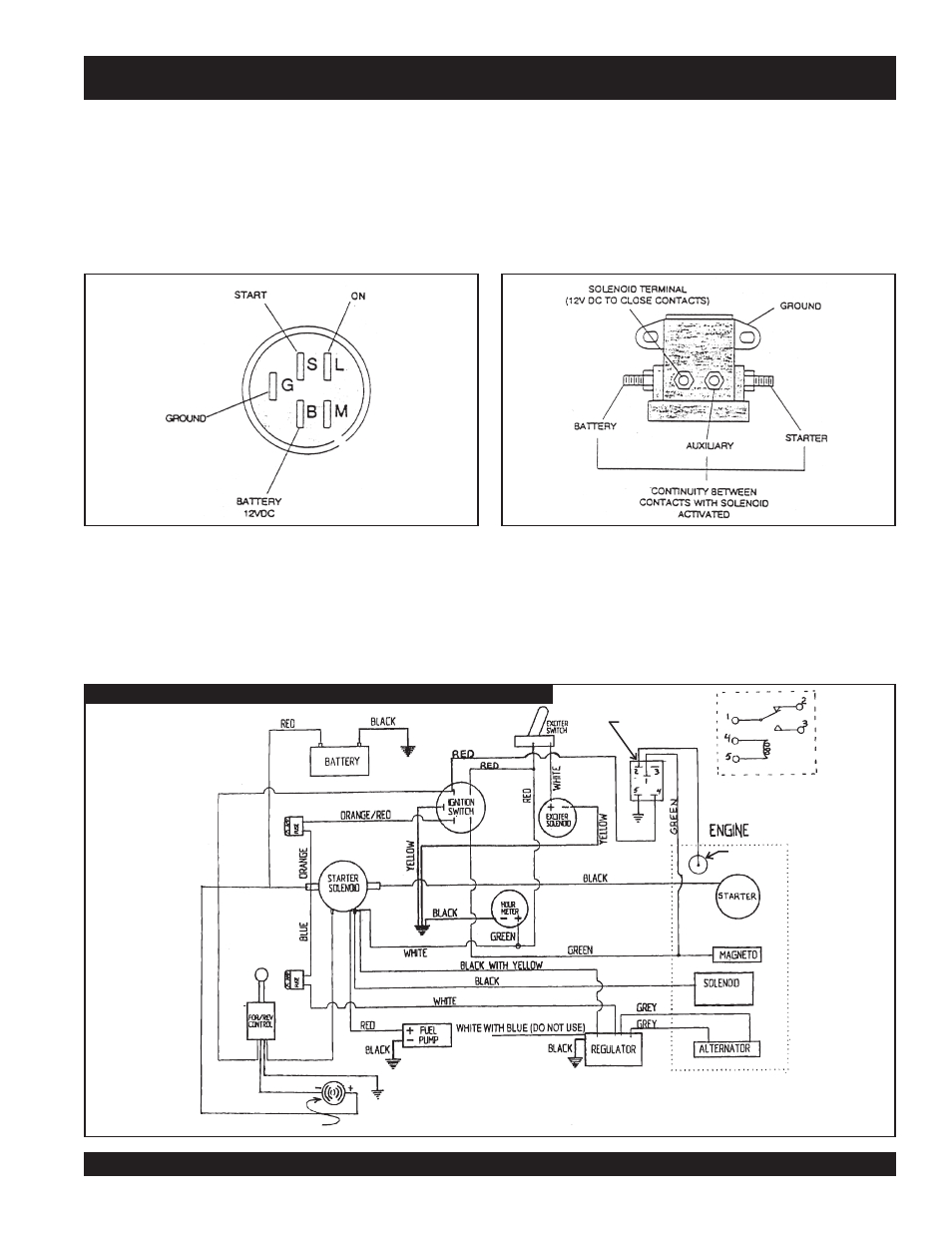

Electrical Schematic — With optional low oil shut-down and back-up alarm
Relay NAPA P/N
#AR109
Black
Low Oil
Pressure Switch
#AR109
Electrical = 25 Amps
