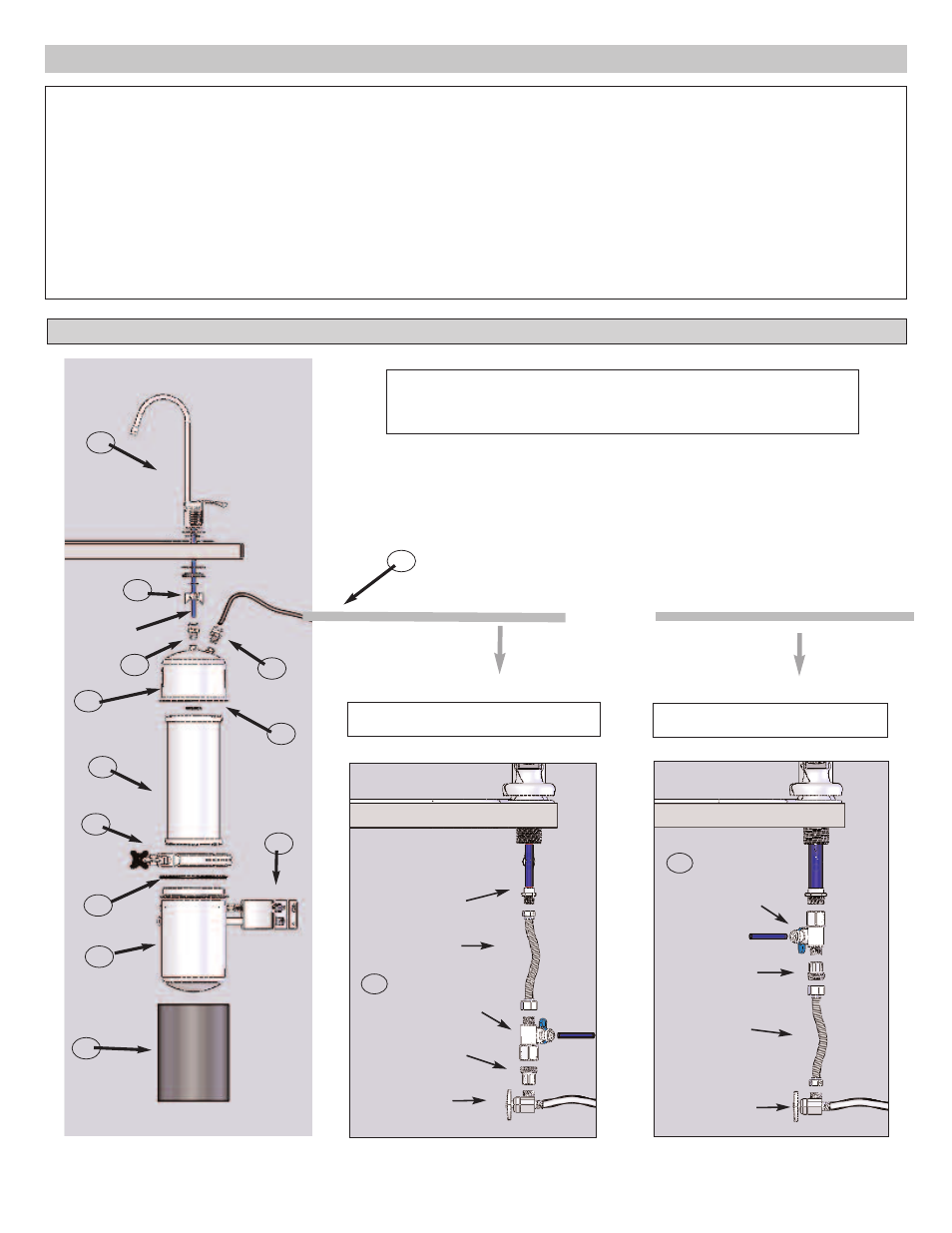

Below Sink Installation Overview & Part Numbers

Connect clear tubing to plumbing -- Option A or B

Item # Part #

Part Description

1

MC652

Faucet assembly with blue tubing
attached

2

MC780 wing nut

3

MC720

Outlet adapter - connects to blue
tubing attached to faucet

4

MC720

Inlet adapter - connects to clear
tubing

5

MCl500

Housing top

6

MC252-BlK Black rubber Cushion

(inside housing top)

7

CB11As

Carbon Block Filter

Item # Part #

Part Description

8

MC253AsBl

V-band with knob

9

MC126 Bracket

10

MC351

O-ring

11

MCB7.5D-18

Housing bottom

12

011-25-4100

Acrylic sleeve*

13

MC232rH

Clear tubing -connects inlet adapter to
plumbing

14

MC920lF

Adapta Valve

tubing

from faucet

v-band

knob

4

6

12

11

10

9

8

7

3

5

2

13

water supply line with

Adapta Valve in 3/8” configuration

water supply line with

Adapta Valve in 1/2” configuration

A.

B.

OR

1

riser

Adapta Valve

1/2” configuration

1/2” slip joint nut

angle stop valve

14

angle stop valve

riser

1/2” slip joint nut

3/8” slip joint nut

Adapta Valve

3/8” configuration

14

Note: the Aquaperform MP880sI Inline unit does not inlcude the following
parts: faucet assembly (#1), wing nut (#2), outlet adapter (#3), inlet
adapter (#4), sleeve (#12), clear tubing (#13), adapta valve (#14)

*

The acrylic sleeve (Item#12) is an optional part available for purchase.
