MTS Series 256 Servovalve User Manual
Page 13
Series 256 Servovalve Product Information
Introduction
13
Introduction

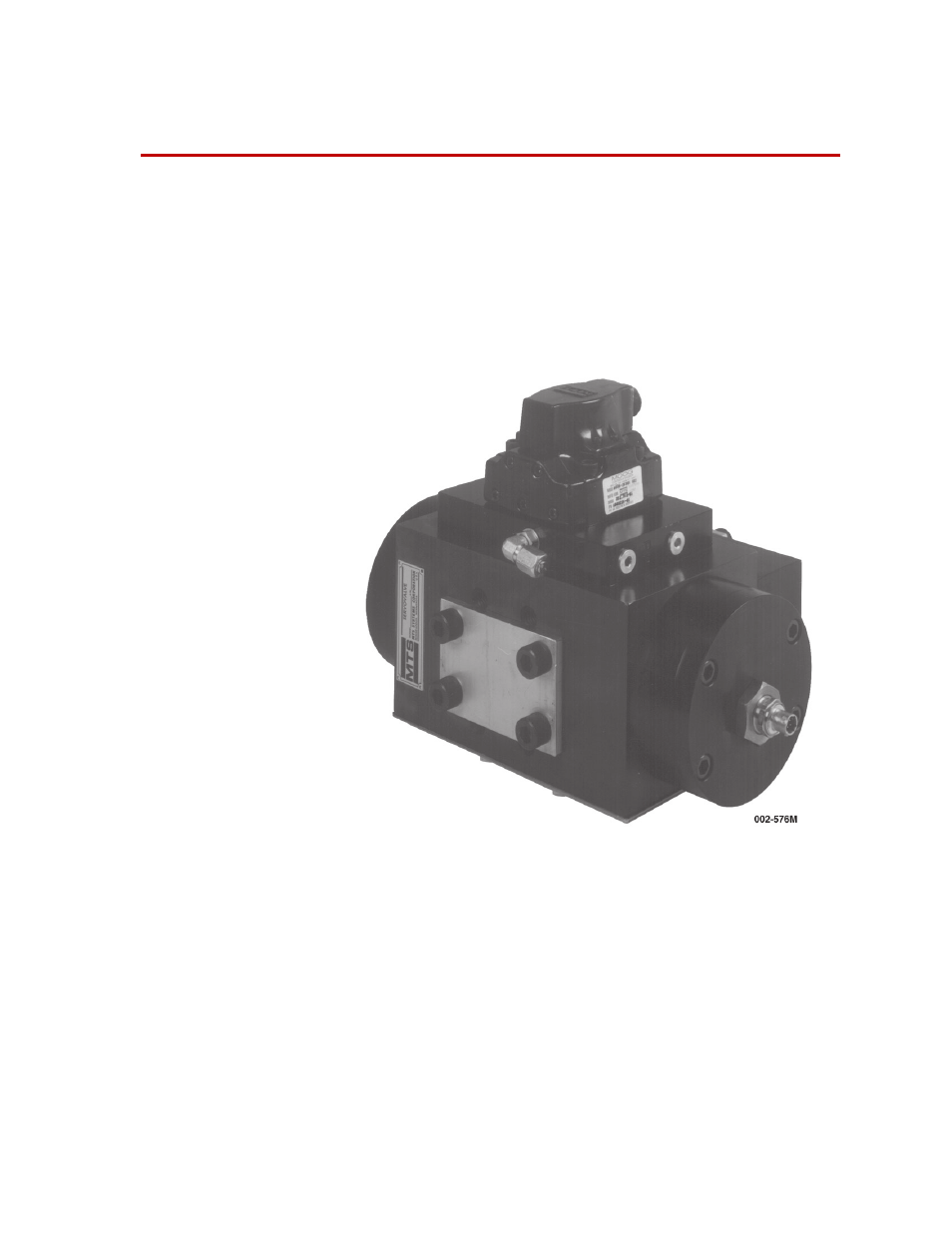

MTS Series 256 Servovalves regulate the rate and direction of hydraulic fluid
flow to and from hydraulic actuators requiring from 113–1500 L/min (30–400
gpm) of fluid flow.
Contents
Series 256 Servovalve—Multiple Stages 16
Series 256 Servovalve
What you need to
know
MTS Systems Corporation assumes that you know how to use your controller.
See the appropriate manual for information about performing any controller-
related step in this manual’s procedures. You are expected to know how to
perform the following procedures:
•
Turn hydraulic pressure on and off.
•
Select a control mode.
•
Manually adjust the actuator position.
•
You should have experience installing or servicing servohydraulic
equipment.
