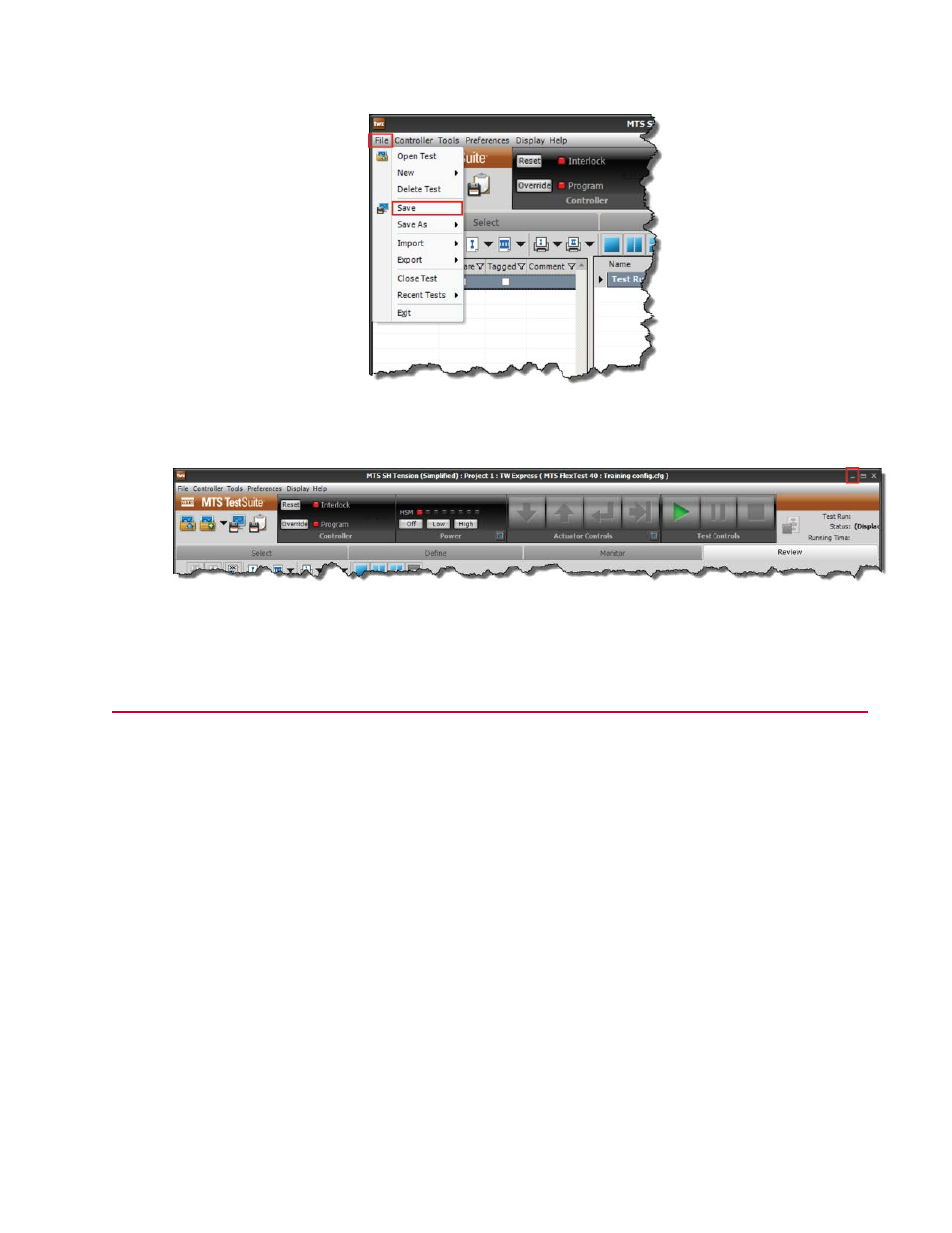

In the TWX main window, select File > Save.
2. Minimize the TWX application.
Click the minimize button in the upper right corner of the TWX application.
Remove the Specimen
Removing the specimen consists of the following steps:
a) Remove Displacement Limits (p. 105)
b) Switch to Running Max/Min Displacement and Force Meters (p. 106)
c) If Appropriate, Remove the Intact Specimen (p. 107)
d) If Appropriate, Remove the Broken Specimen (p. 109)
Remove Displacement Limits
Because the actuator may retract at the conclusion of the test, begin by removing the displacement limits.
1. In the Station Manager application main window, select Display > Station Setup, and click the Channel
Input Signals button.
MTS Landmark Test System Operation | 105
Running the Example Tension Test
