MTS Isolation Service Manifold Controller - Manual (Page 28)

Isolation Service Manifold Controller 28

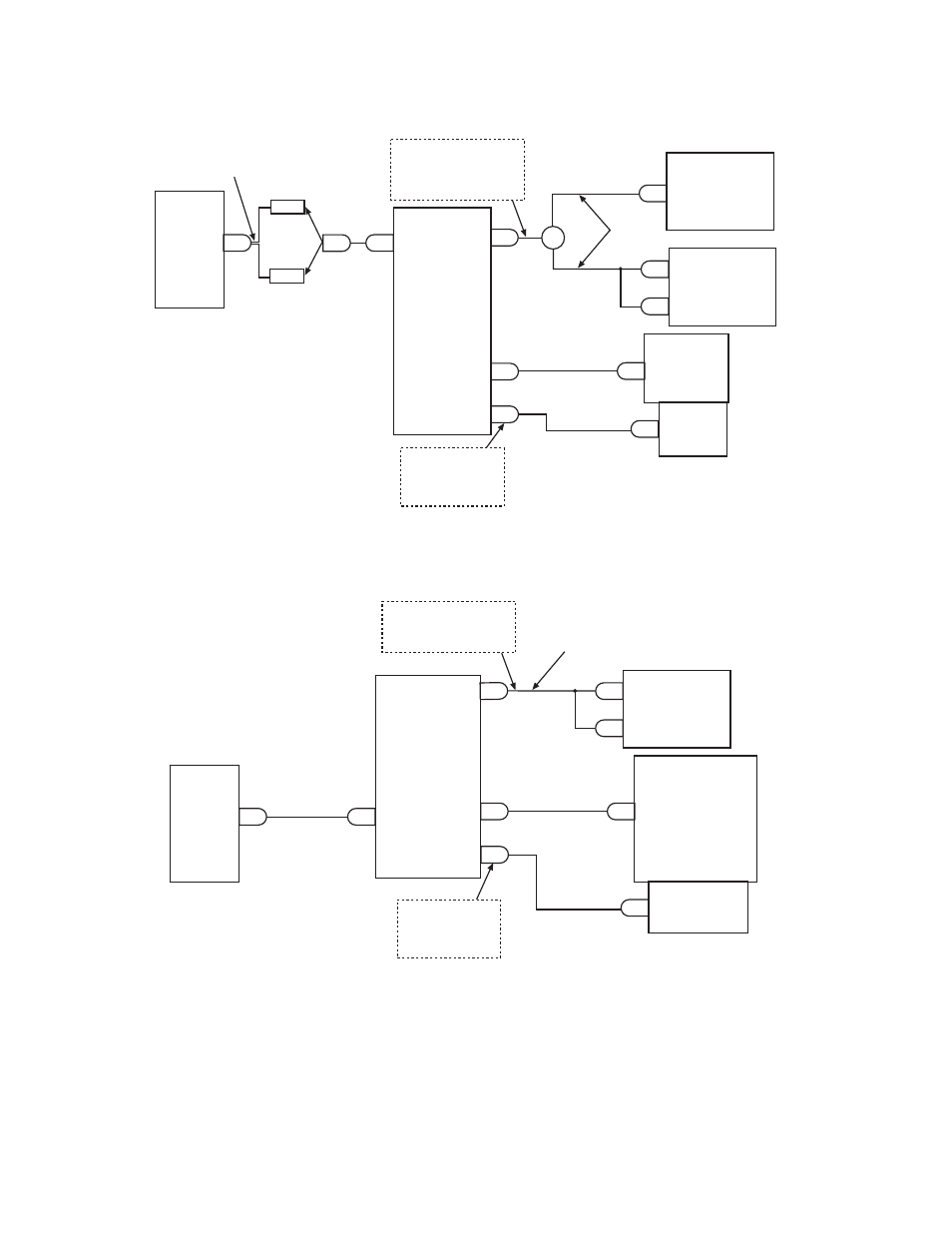

Cabling
Installation
P28 P1
494.44
ISM Controller
HSM
292, 298
P28
574730-XX
HSM
290, 293
or
Existing
HSM
Cable
D9 to CPC Adapter
(if needed)
100175734 (290, 293)
100188068 (292, 298)
P2
ISM
Pilot
Pressure
Block
P3
574745-XX
575142-XX
Install jumper
100225251 if
no pilot pressure
block
P28
J28A
J28B
100185473
P28
P2
P1
494.74
ISM Controller
ISM
Pilot
Pressure
Block
P3
574745-XX
575142-XX
Install jumper
100225251 if
no pilot pressure
block
574730-XX
HSM
290, 293
Existing
HSM
Cable
D9 to CPC Adapter
(if needed)
100175734 (290, 293)
P28
