Series 298 Hydraulic Service Manifold 20
Specifications
Introduction

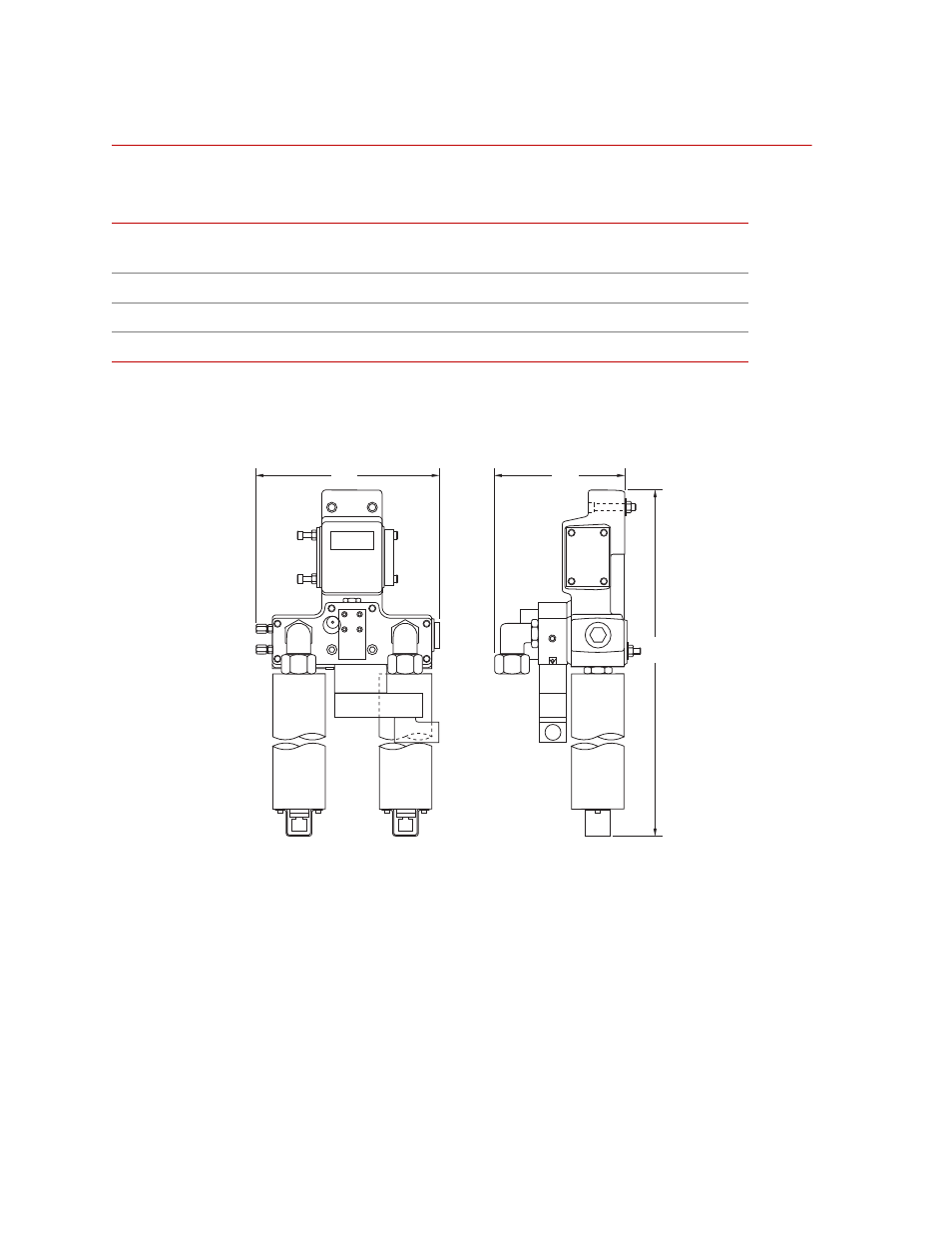

Dimensions
Note Dimensions and weights listed are approximate.
MODEL
NUMBERS
A *
* Add 152 mm (6 in) if a quart accumulator is used.
B
C †
† Add 160 mm (6.32 in) if the filter option is used.
WEIGHT ‡
‡ Add 4.1 kg (9 lb) to the weights listed for the optional filter assembly.
298.10 597 mm (23.5 in) 254 mm (10.0 in) 140 mm (5.5 in) 31 kg (68 lb)
298.11 597 mm (23.5 in) 271 mm (10.7 in) 195 mm (7.7 in) 38 kg (84 lb)
298.12 597 mm (23.5 in) 271 mm (10.7 in) 195 mm (7.7 in) 38 kg (84 lb)
B C
A
