MTS Series 505G2 SilentFlo Hydraulic Power Unit Model 505G2-11 User Manual
Page 25

General Safety Practices: Hydraulic Power Units and
Model 505G2.07/.11 SilentFlo™ HPU
25
Consult MTS when in doubt about the safety or reliability of any system-related
procedure or modification that involves devices that contain any type of
compressed gas.

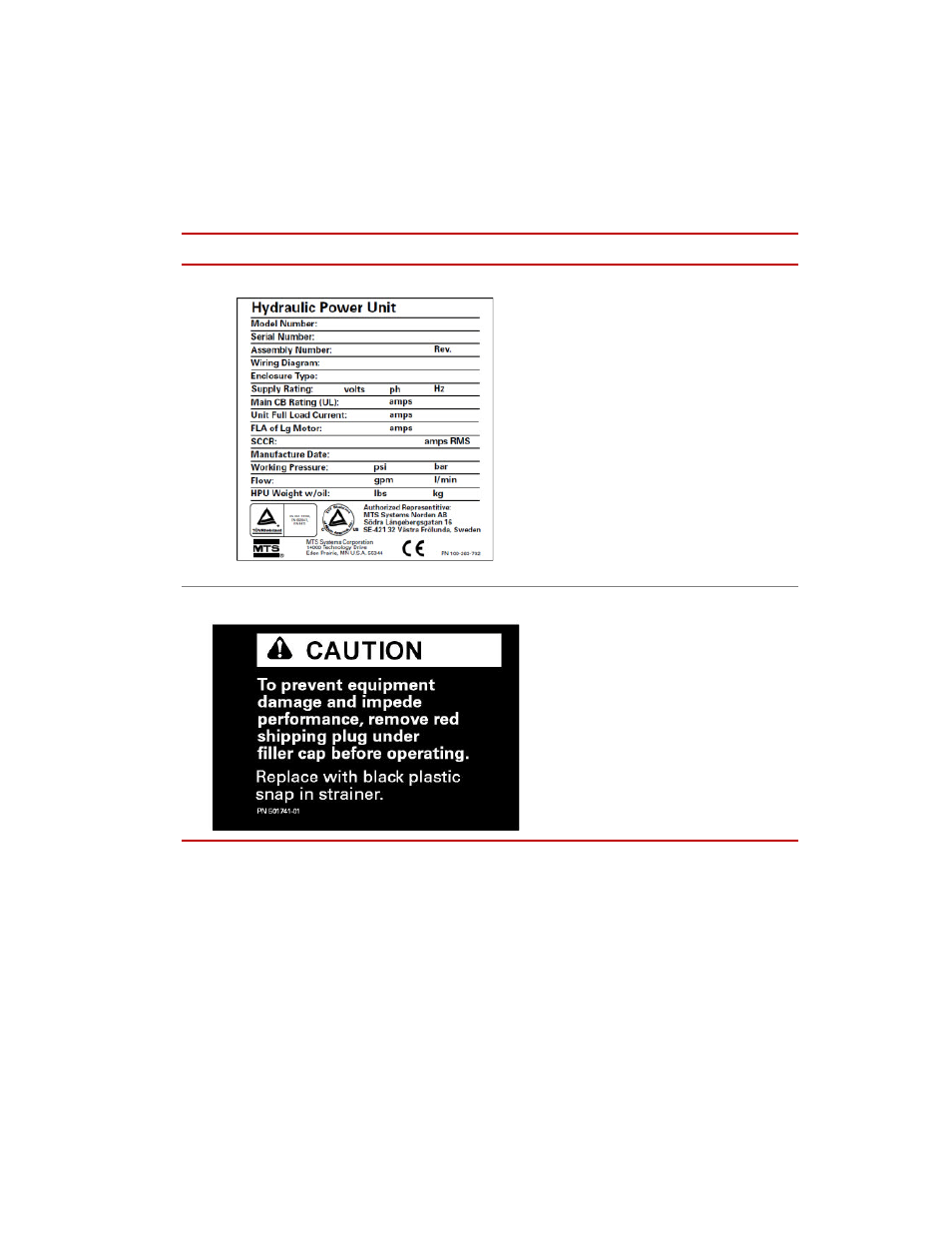

The following labels and placards are typically located on the HPU.
Label
Description
Hydraulic Power Unit information
label.
Part # 100-263-702
Caution
To prevent equipment damage and
impede performance, remove red
shipping plug under filler cap before
operating.
Replace with black plastic snap in
strainer.
Part # 050-174-101
