MTS Series 642 Bend Fixtures User Manual
Page 32
Series 642 Bend Fixtures Product Information
32
Installation
A. For Model 642.001, 642.01, and 642.10 Bend Fixtures, attach the
upper half of the bend fixture to the force transducer with the shorter
mounting screw.
B. Align the fixture with the load unit, and tighten the cap screw(s).
C. For Model 642.01 and 642.10 Bend Fixtures, attach the fixture’s lower
half onto the actuator piston with the longer mounting screw and
tighten it in place. For the 642.25 Bend Fixture attach the adapter plate
to the actuator piston first, and then attach the fixture to the adapter
plate.
You might need to use a spanner wrench on the actuator to keep it from
turning.

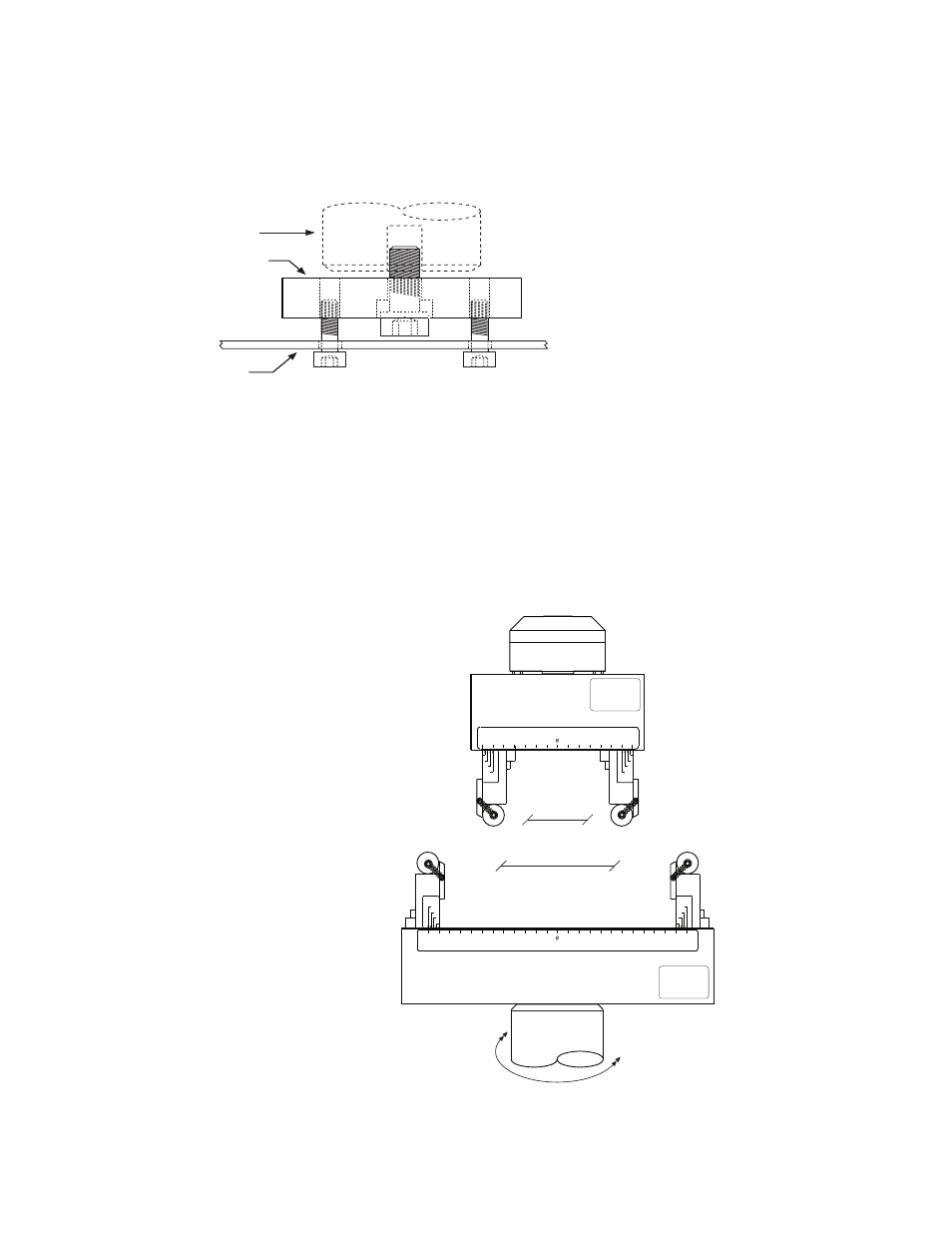

For 642.25 attach the adapter plate to
the force transducer first, and then
attach the fixture to the adapter plate
with the provided screws.
Force Transducer
Adapter Plate
642.25 Fixture
Align
Rotate
