MTS Series 642 Bend Fixtures - Manual (Page 18)

Series 642 Bend Fixtures Product Information 18 Introduction
Dimensions

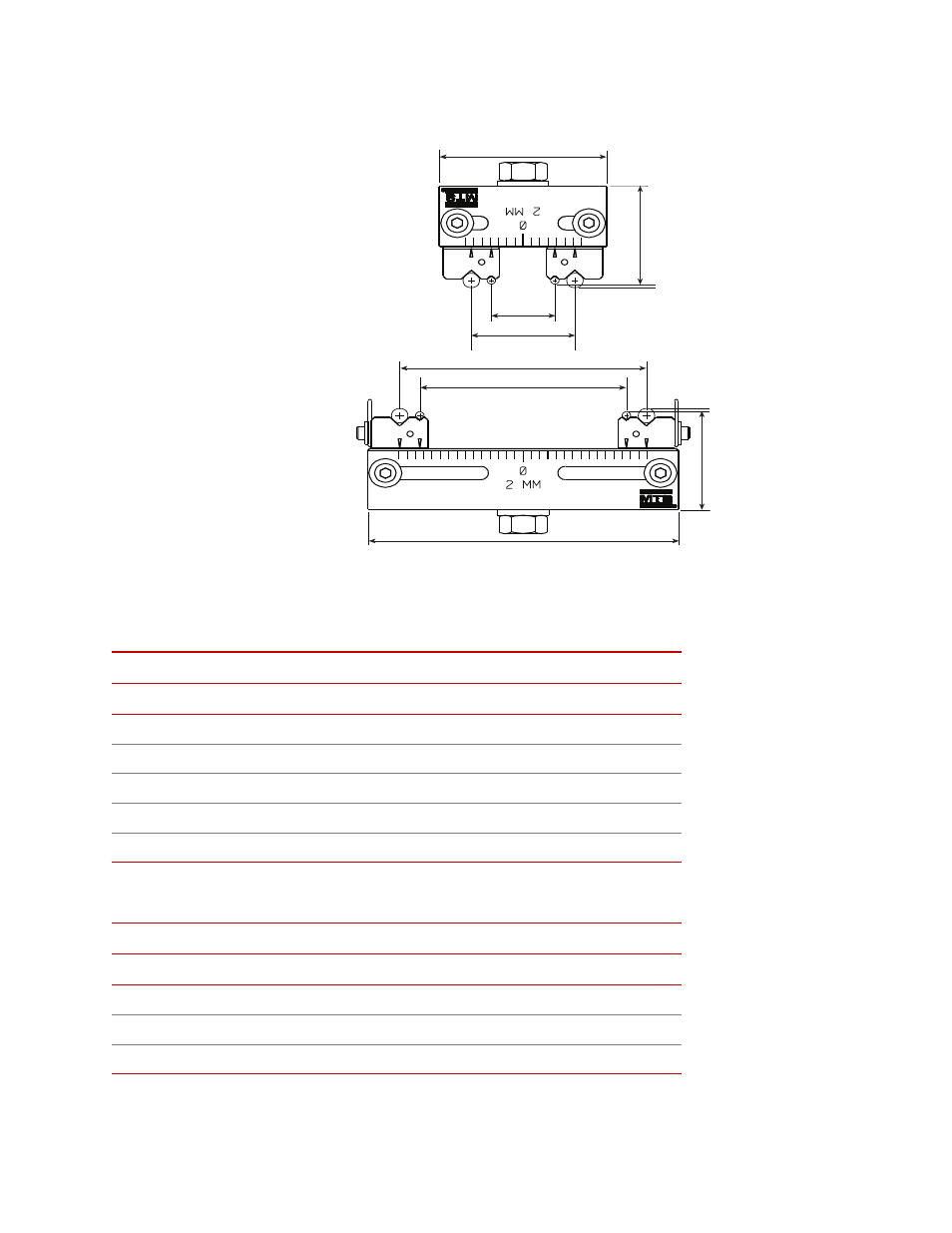

Model 642.001 Bend Fixture Dimensioning
Height
(to edge
of roller)
Height
(to edge
of roller)
Length
Span
Span
Length
Model 642.001 Dimensions ( SI - Metric Units)
Upper Fixture
Roller Diameter Length Height Minimum Span Maximum Span
1 mm 40.6 25.7 0.4 15.4
2 mm 40.6 26.9 0.4 15.4
3 mm 40.6 26.7 13.7 25
4 mm 40.6 27.9 13.7 25
5 mm 40.6 29.1 13.7 25
Model 642.001 Dimensions ( SI - Metric Units)
Lower Fixture
Roller Diameter Length Height Minimum Span Maximum Span
1 mm 75.2 25.7 4.0 50
2 mm 75.2 26.9 4.0 50
3 mm 75.2 26.7 13.7 59.7
