Round Thick Diameter Specimens
Series 609 Alignment Fixture Product Information
Specimen Preparation
31
Round Thick Diameter Specimens
A typical gaged specimen has three levels of strain gages. The gages allow you to
determine bending strains at each level. Analysis of the strain readings produce a
profile of the grip alignment.
Gage placement
Use twelve gages on large diameter round specimens. Attach and number them
as shown here.

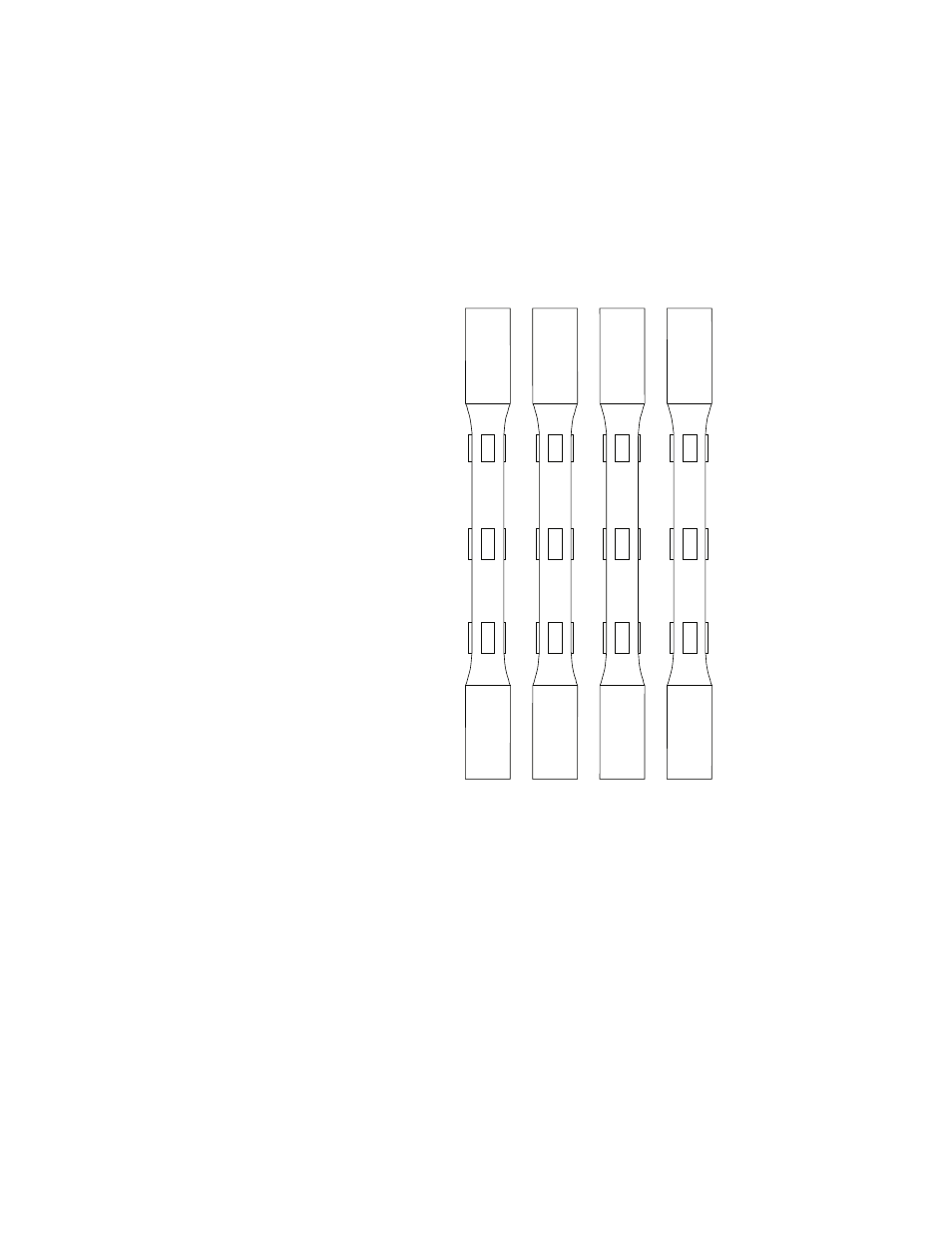

Gage Placement—Four Gage Round Specimens
•
Place the gages at the top, middle, and bottom of the gage section. Space
them at 90° intervals.
•
Place the top set of gages so that their upper edges just touch the upper edge
of the gage section.
•
Center the middle gages in the middle of the gage section.
•
Place the bottom set of gages so that their lower edges just touch the lower
edge of the gage section.
1
2
3
4
5
6
7
8
9
10
11
12
0°
90°
180°
270°
