MAINTENANCE AND STORAGE
28
eng
To check for proper foot pedal cable tension, apply a
9.1 kilogram force (20 lbf) pull at the center of the long exposed
foot pedal cable. The amount of deflection of the cable should be
approximately 19 mm (3/4 in.). If the deflection is not correct, use
a 13 mm (1/2 in.) wrench to adjust the cable tension nuts to obtain
the proper deflection.
IMPORTANT: Equal adjustments should be made to each cable
tension nut to maintain an equal right and left steering radius with
the foot pedal.

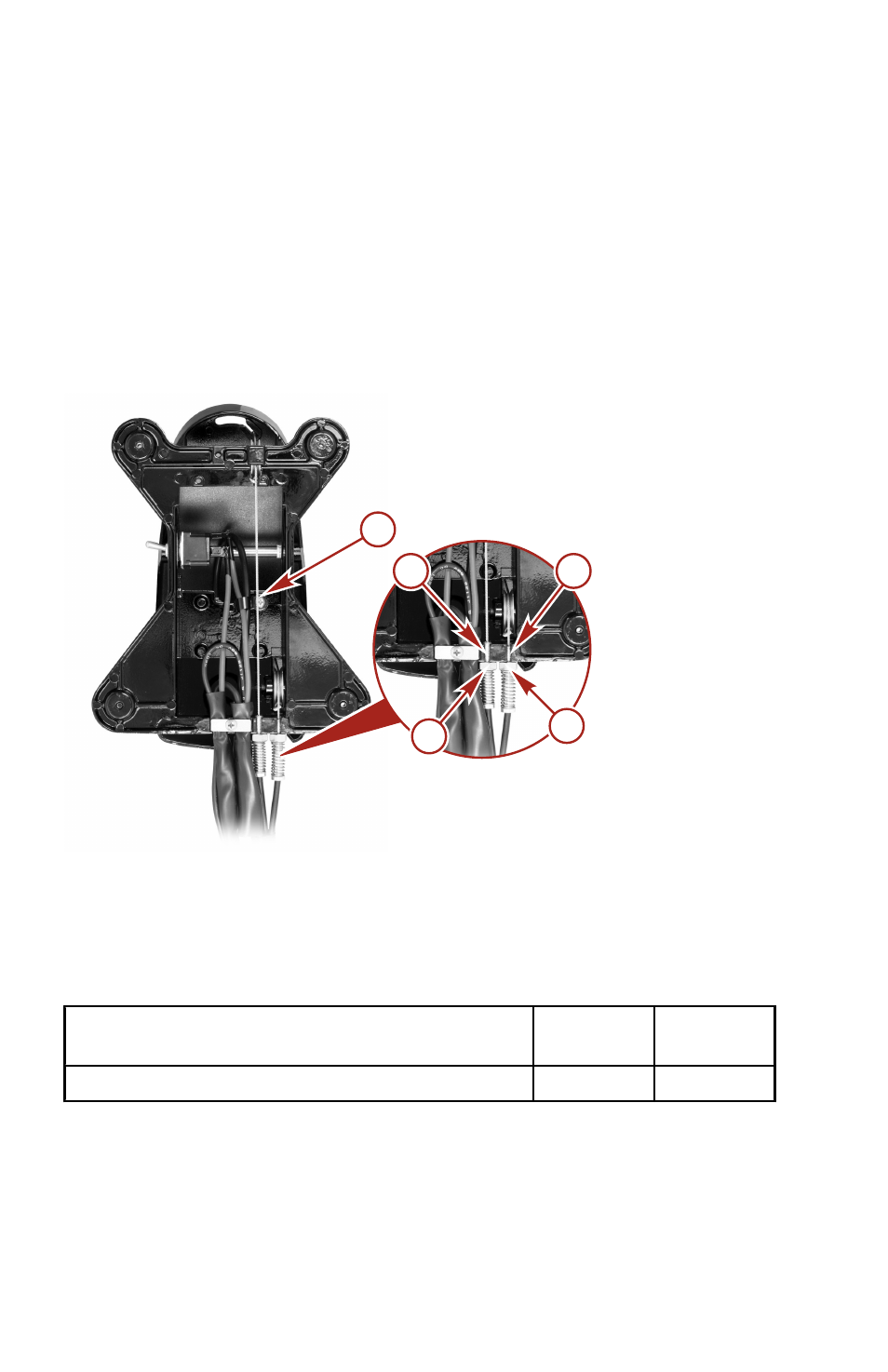

a - Long cable tension pull point
b - Exposed threads of tension adjustment shafts
c - Cable tension adjustment nuts
Description
kilogram
force
lbf
Long exposed foot pedal cable tension 9.1 20
a
b b
c
c
43523
