TROLLING MOTOR OPERATION
eng
23
3. High‑bypass ‑ motor runs continuously on full speed
(bypassing the speed setting) with the momentary button
depressed.
Control the speed of the motor by adjusting the speed control knob
on the foot pedal. Use the momentary switch when operating the
trolling motor in momentary or high‑bypass operation.

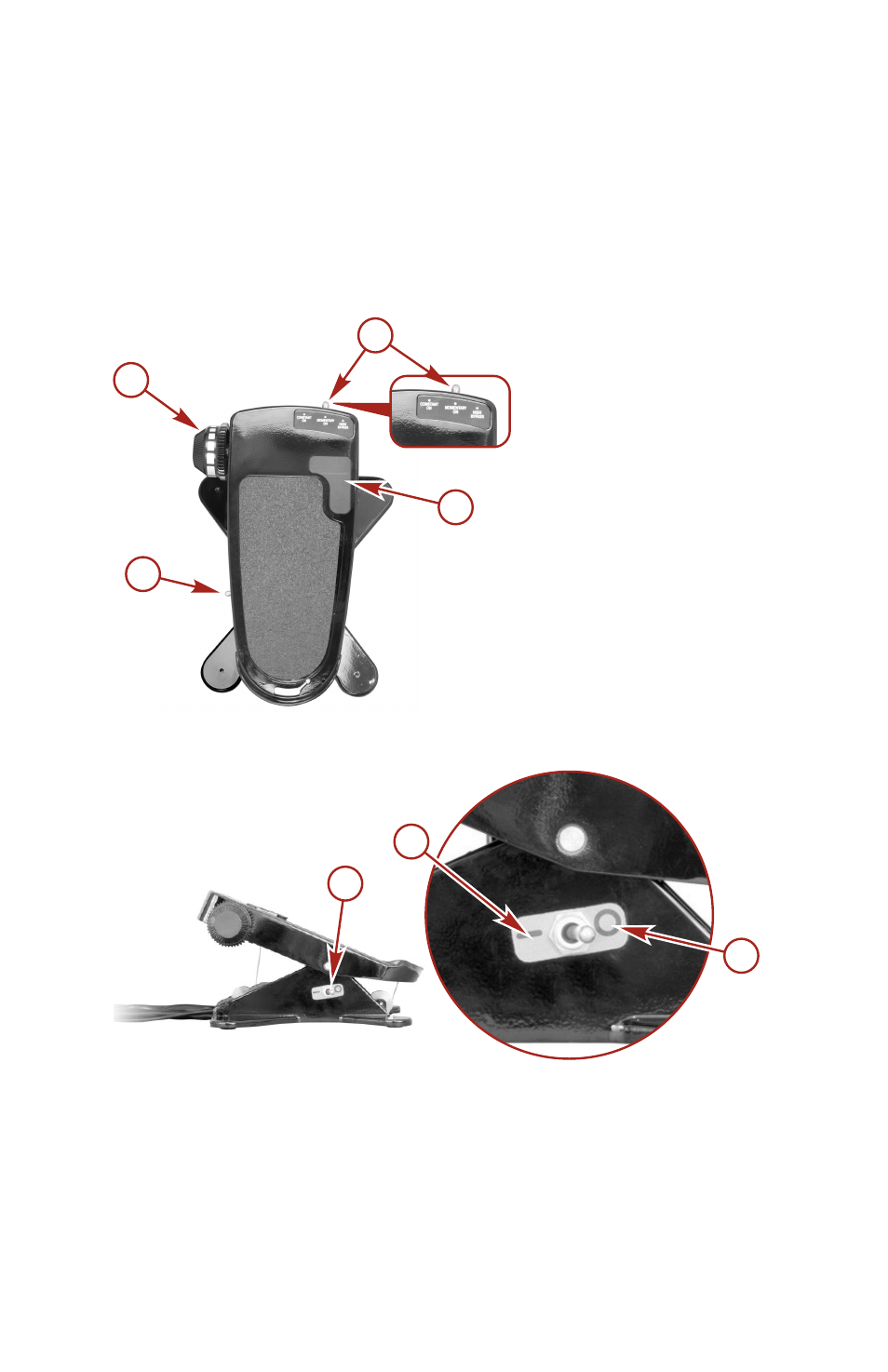

a - On‑off toggle switch
b - Speed control knob
c - Three‑position toggle
switch
d - Momentary button
Use the on‑off toggle switch to power the motor on and off.
a - On‑off toggle switch
b - Off position
c - On position
a
b
c
d
41386
41385
a
b
c
