TROLLING MOTOR OPERATION

eng

Match the cable connector to the sonar port on the back of the

sonar display. Power up the unit to ensure the sonar cable is

connected securely.

41478

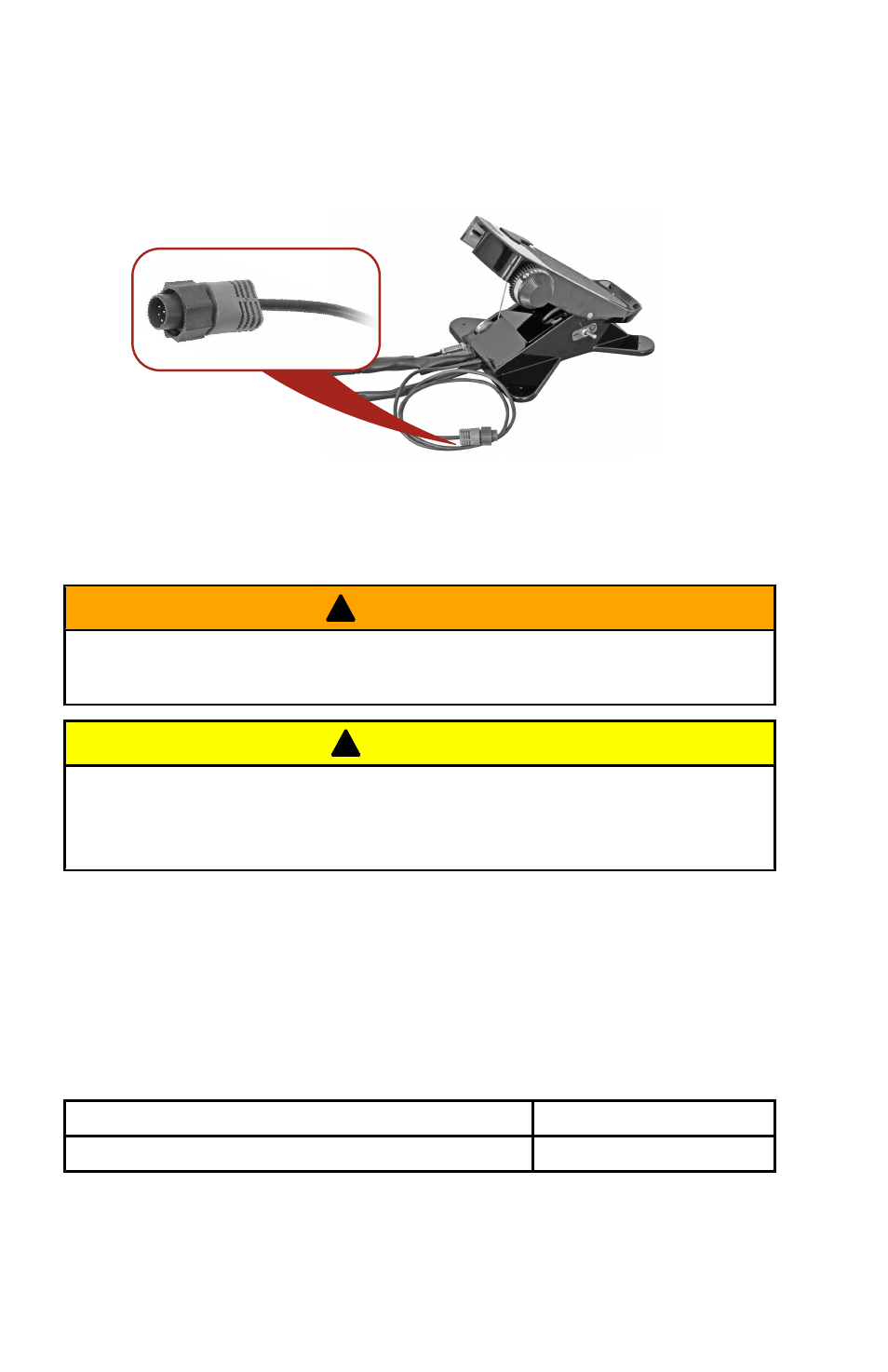

Lowrance 7 pin sonar connector

Stowing and Deploying the Trolling Motor

WARNING

Rotating propellers can cause serious injury or death. Never start

or operate the motor out of water.

CAUTION

Moving parts, such as hinges and pivot points, can cause serious

injury. Keep away from moving parts when stowing, deploying,

or tilting the motor.

NOTE: The bow mount stowing and deploying procedures apply

to the Gator 20.8 Breakaway mount (pictured), Tour Gator 21

Spring mount, and Tour Gator 24 Spring mount.
STOWING THE TROLLING MOTOR
NOTE: Secure trolling motors with a trolling motor tie‑down strap

(not included) on all mounts.

Recommended MotorGuide Accessory Description

Part Number

Trolling Motor Tie‑Down Strap

MGA507A1

1. Firmly grasp the mount rope handle.
2. Snap the mount rope handle to disengage the lockslide pin.
