PRODUCT INSTALLATION
16
eng

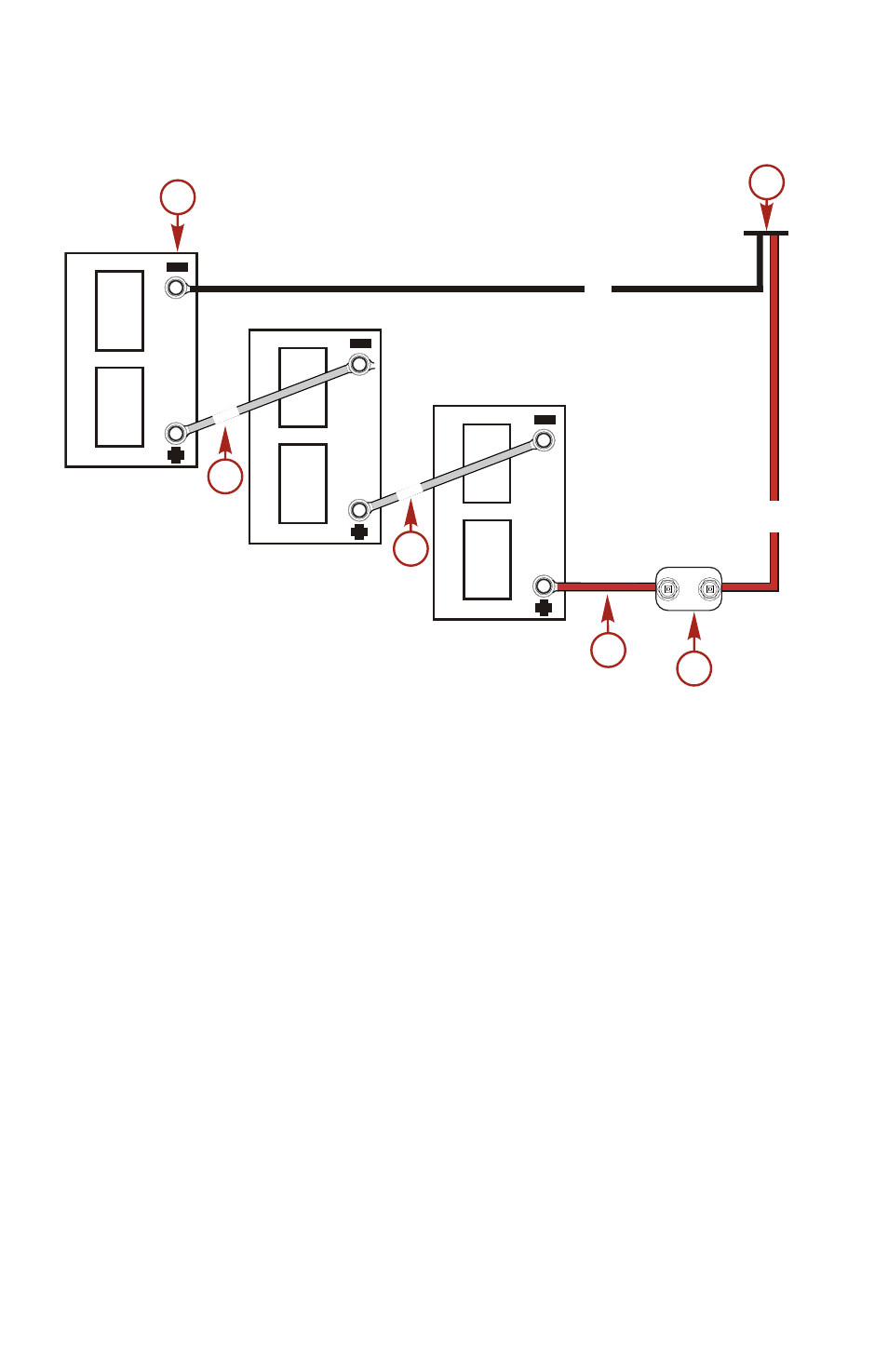

36 VOLT BATTERY CONNECTION
a - Power cable
b - 50 amp manual reset circuit breaker
c - Jumper wire (not supplied)
d - Common ground
1. Install a 50 amp manual reset circuit breaker in line with the
positive lead.
2. Connect the red battery lead from the power cable circuit
breaker to the positive (+) post on battery C.
3. Connect the black battery lead from the power cable to the
negative (–) post on battery A.
4. Connect a jumper wire (not supplied) between the negative
(–) post on battery C to the positive (+) post on battery B.
5. Connect a second jumper wire (not supplied) between the
negative (–) post on battery B to the positive (+) post on battery
A.
RED
BLK
GRA
c
Battery B
Battery C
Battery A
GRA
c
a
b
c
d
45996
