PRODUCT INSTALLATION AND OPERATION
10
eng
1. Power up and deploy the trolling motor. Adjust the motor height so that the
motor is clear of any obstructions while turning.
IMPORTANT: Stay a safe distance away from the propeller—the trolling motor is in
an operational mode.
!
WARNING
Rotating propellers can cause serious injury or death. Never start or operate the
motor out of water.
2. Use the left turn and right turn buttons to steer the unit so that it is facing
straight ahead, parallel with the keel of the boat, with the nose cone of the lower
unit facing forward and the propeller facing aft.

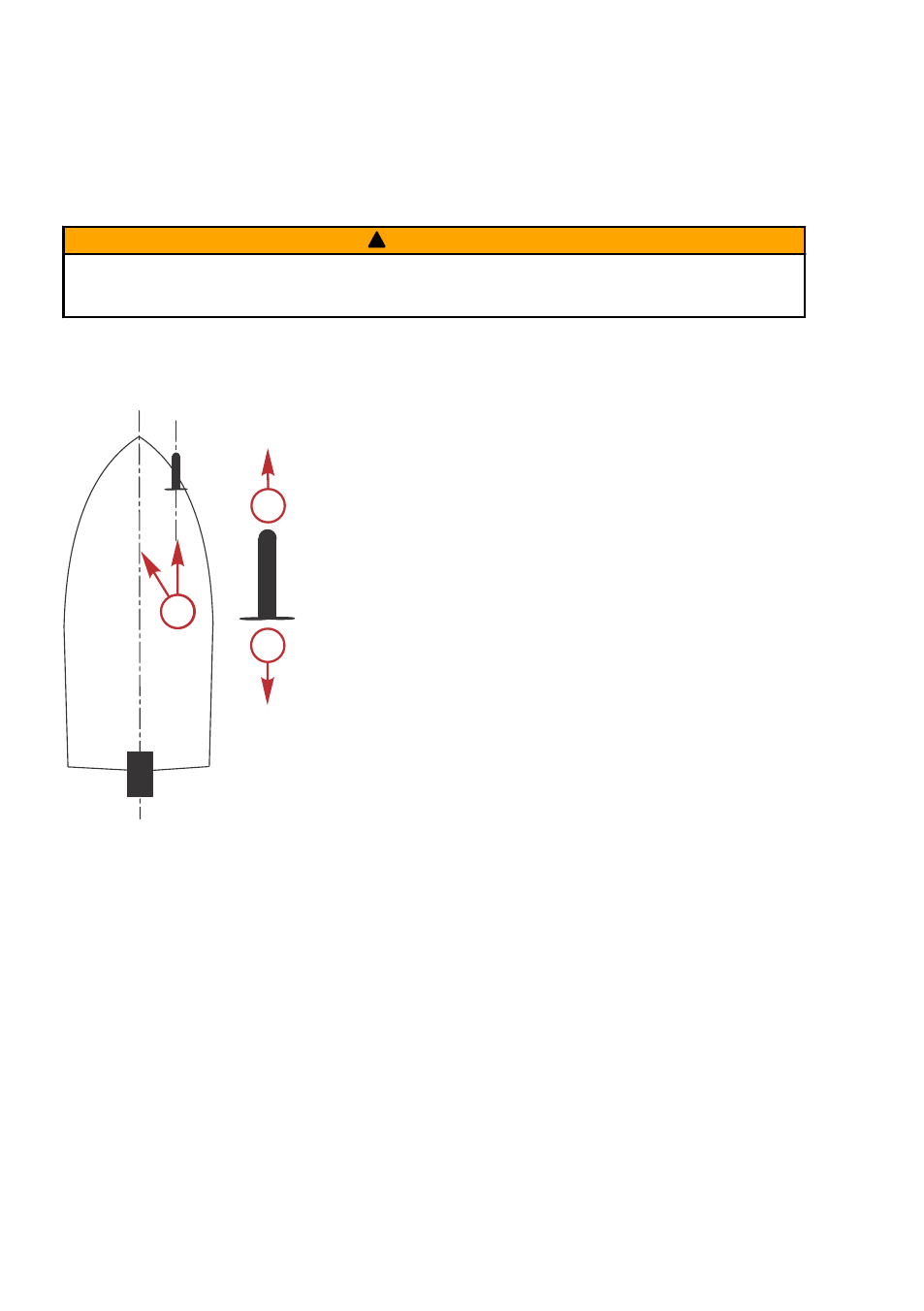

View of boat from above
a - Nose cone facing the bow
b - Propeller facing the stern
c - Parallel lines
3. Once the lower unit is positioned as close to parallel with the keel as possible,
press and hold the manual mode button, then press and release the 1, 1, then
2
buttons in sequence. The trolling motor will emit an audible tune, flash the
status indicator light, and then return to manual mode, completing the mounting
angle calibration.
COMPASS CALIBRATION
IMPORTANT: This calibration is completed at the factory. It should only be repeated
if the Pinpoint GPS system is not responding properly. This calibration must be done
with the boat in the water, using the primary propulsion engine.
54441
b
a
c c
