PRODUCT INSTALLATION AND OPERATION
8
eng

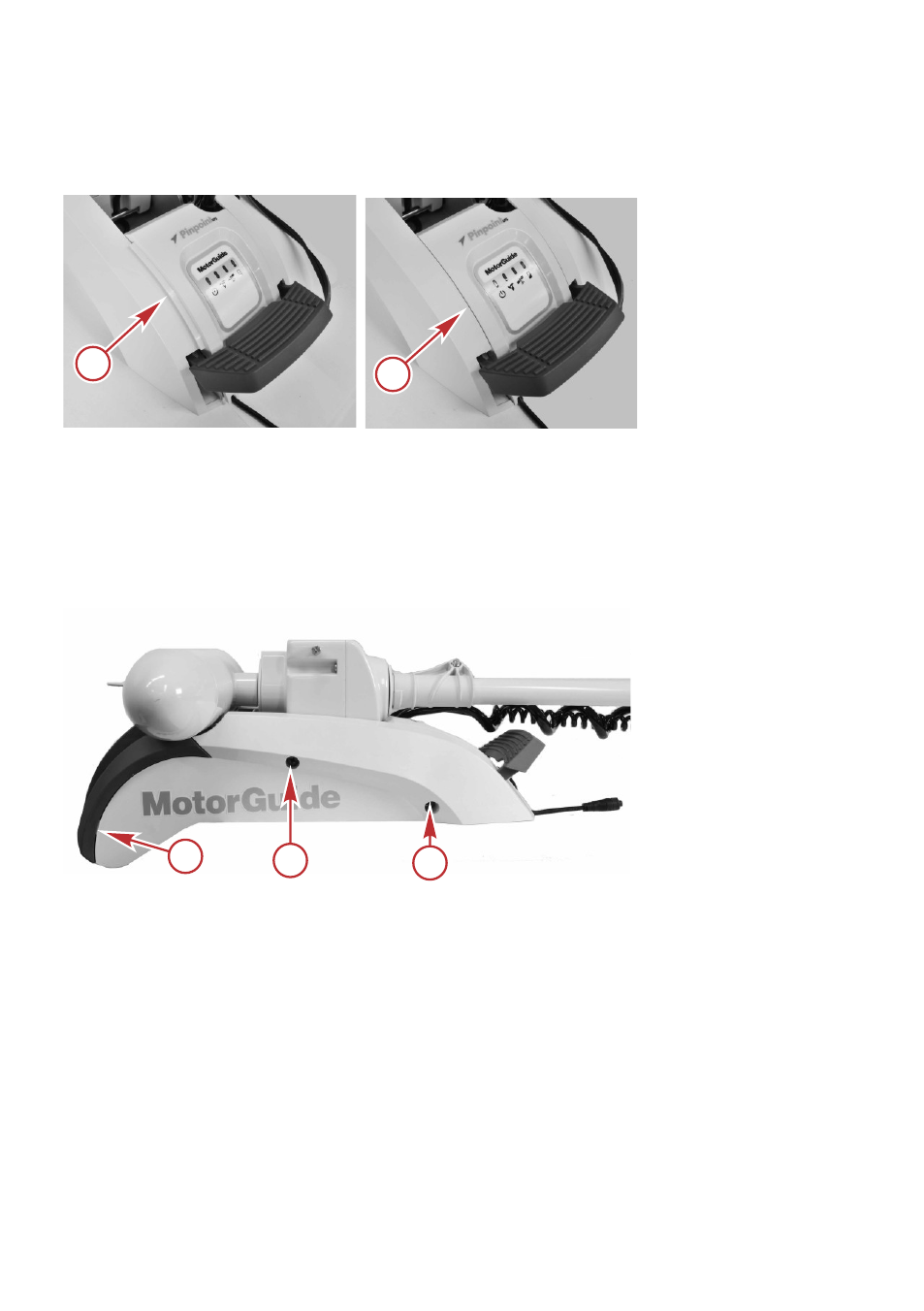

11. Install the side panels onto the trolling motor. Ensure that the status indicator
light panel is seated between the side panels as shown, and that no wires are
pinched.
a - Status indicator light panel not seated—incorrect
b - Status indicator light panel seated between side panels—correct
12. Ensure that no wires are pinched between the side panels and the trolling
motor. Tighten the side panel mounting screws.
a - Side panel screws
b - Locating tab
LINKING THE HANDHELD REMOTE TO THE TROLLING MOTOR
The first time the trolling motor is powered up, the handheld remote will need to be
linked to the trolling motor. The linking procedure is listed as follows:
1. Starting with the positive (+) lead, connect the trolling motor power cables to the
battery.
a
b
54529
a a
b
54454
