PRODUCT INSTALLATION AND OPERATION

eng

IMPORTANT: Do not overtighten the mounting screws or use power tools to tighten

the screws.

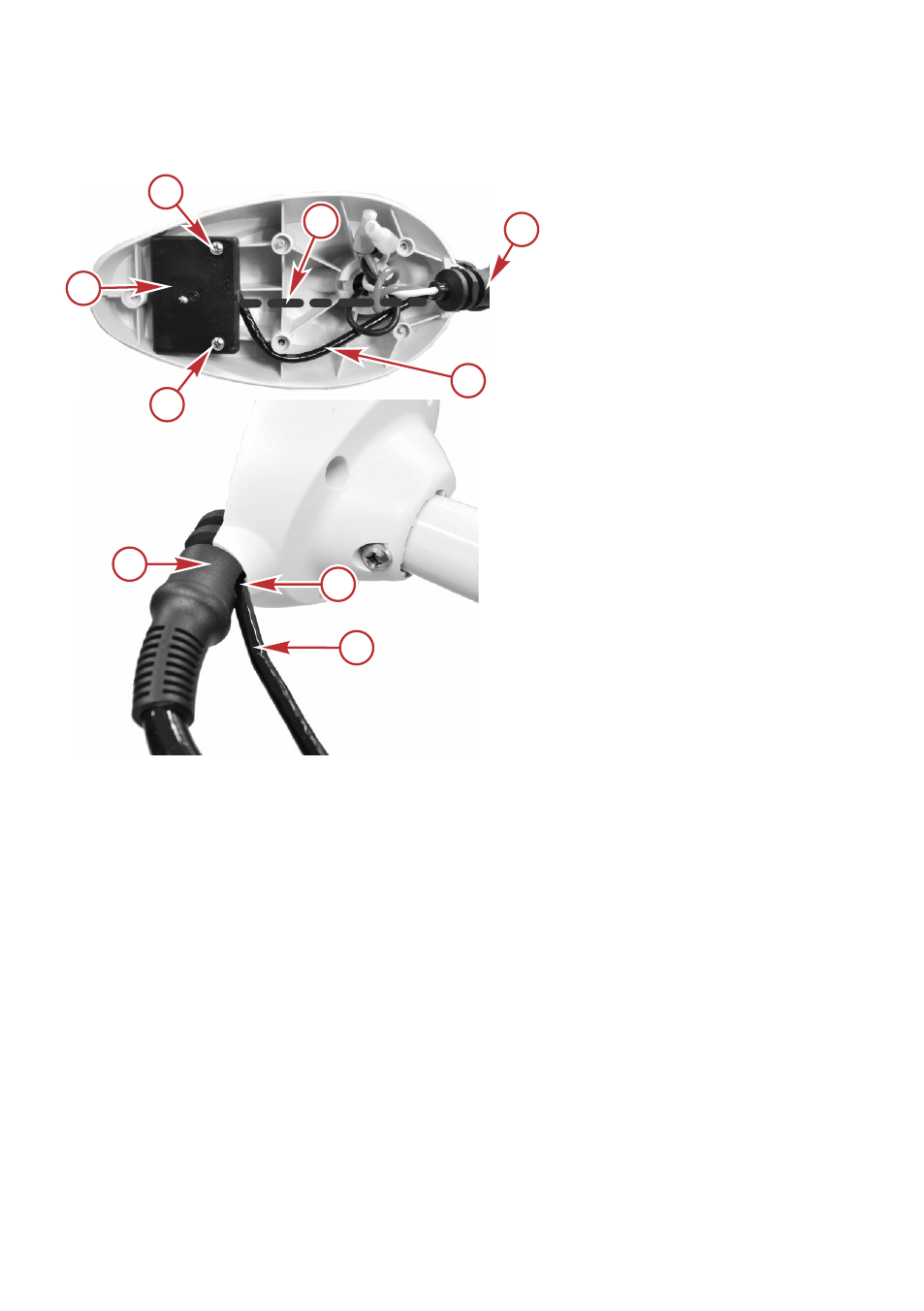

a -

Upper GPS module

b -

Mounting screws (2)

c -

Incorrect GPS cable

routing—do not

install the cable

here

d -

Cable grommet

e -

Unused slot for

sonar cable

f -

GPS cable

5. Place the cover onto the trolling motor head. Ensure that the cable grommet is

seated in the trolling motor head and that no wires are pinched. Install the five

screws that secure the cover to the trolling motor head.

IMPORTANT: Do not overtighten the screws or use power tools to tighten the

screws.

53468
