Page 38

38
NOTE: If alignment problems are the result of a warped blade, a bent frame or bent support
arm, or, if alignment is off by more than 1/8-inch, contact the MK Diamond Service Center –
(800) 474-5594
(A)
Combination square (square)
12-inch or greater.
1/2-inch
Wrench or MK Triple Hole Box
Wrench and MK Open
End Wrench.
(A)
Remove Water Pan.
(B)
Inspect Diamond Blade
for damage.
(C)
Loosen front and rear
Guide Bar Retaining Bolts.
MK-101 Pro24
TROUBLESHOOTING

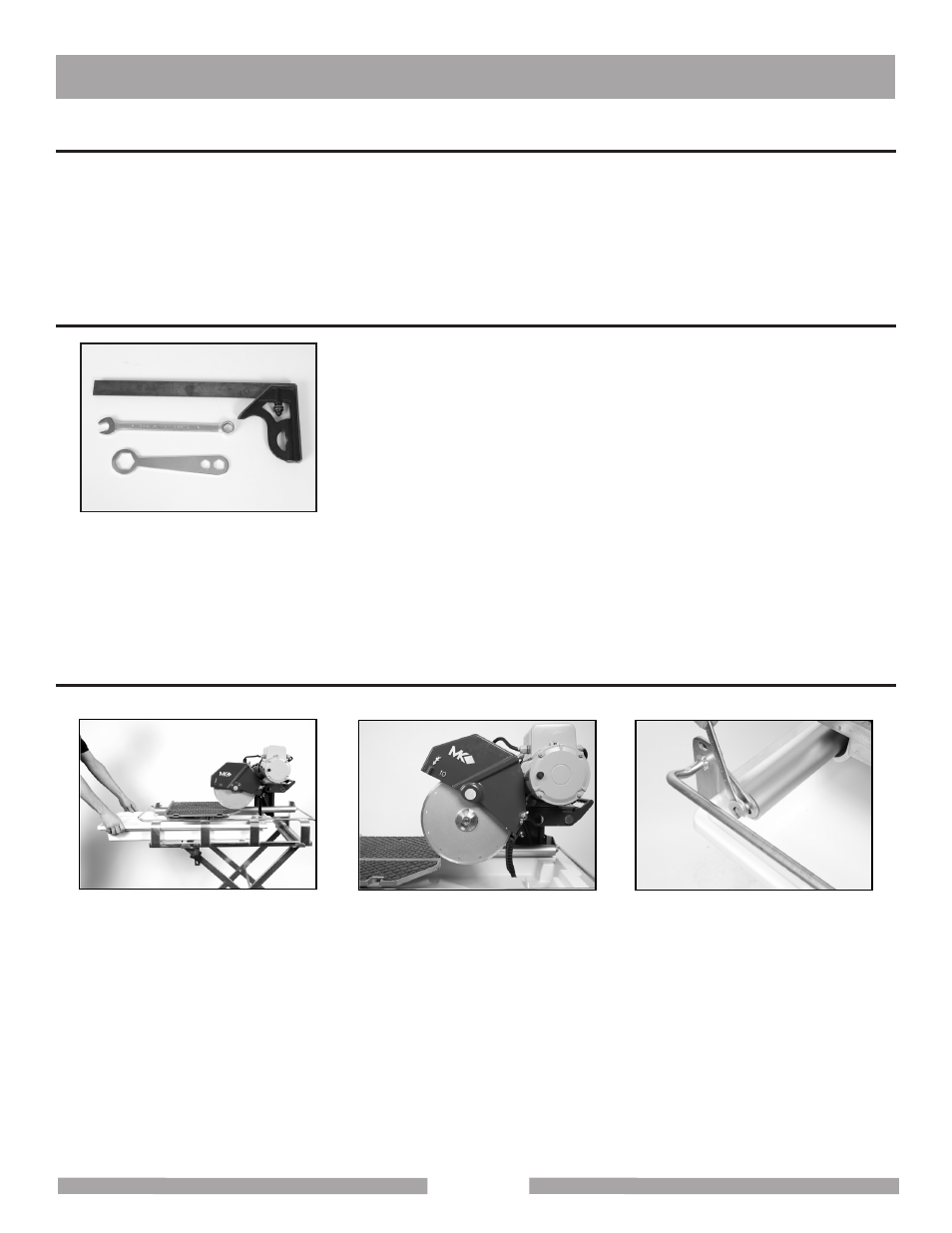

BLADE ALIGNMENT PROCEDURE
TOOLS NEEDED
PREPARATION
The Movable Cutting Table of the MK-101 may become misaligned with the Cutting Head of the Tile
Saw over time. Should misalignment occur, perform the following steps to realign the Tile Saw.
