33

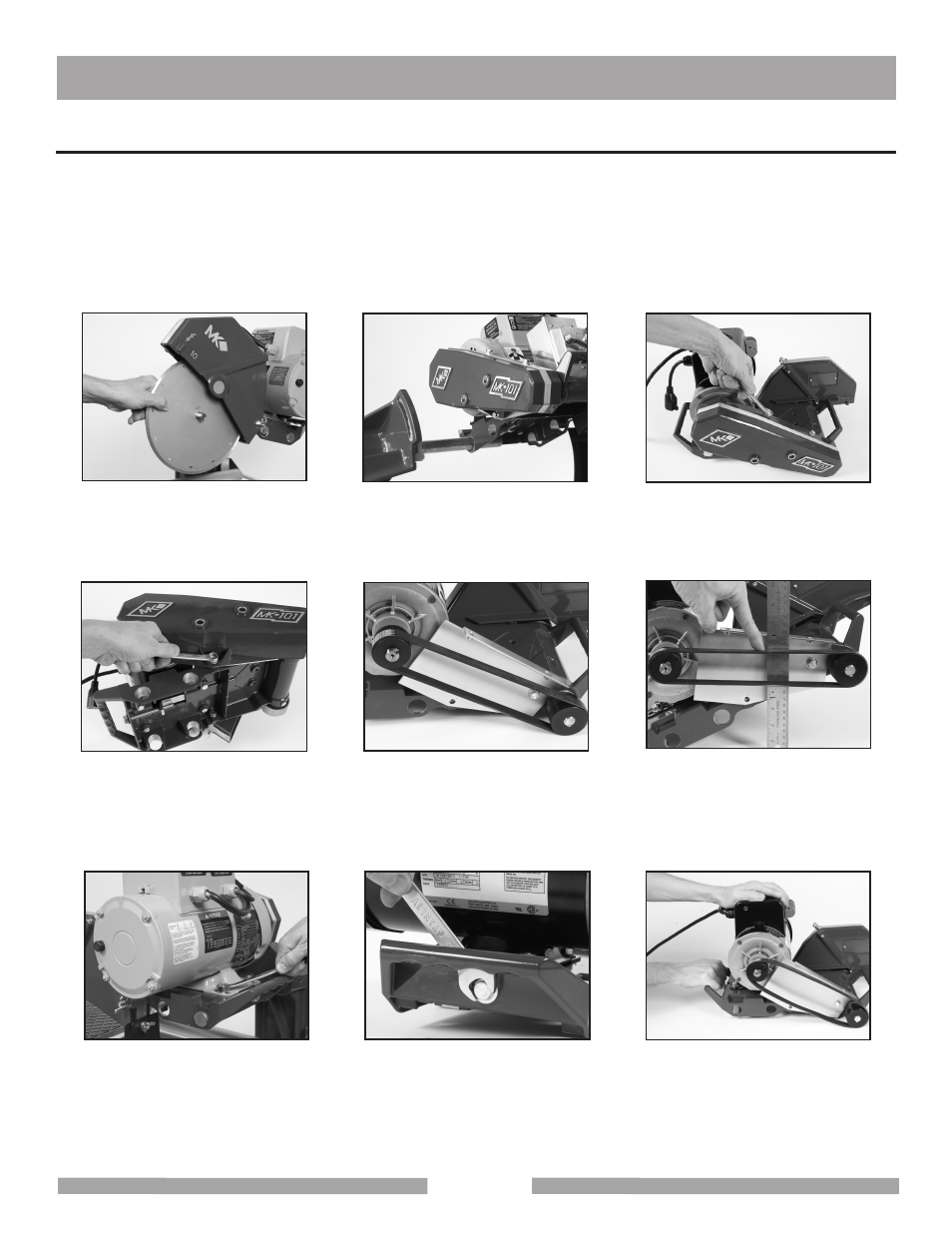

NOTE: 1. When a new belt is installed, it should be inspected and re-tensioned after the first
forty-eight (48) hours of operation.
(A)
Remove the Diamond Blade.
(B)
Remove the Cutting Head (See
Adjusting the Cutting Head).
(C)
To remove the Belt Guard,
loosen the two top bolts on the
belt guard.
(E)
Inspect the belt for cracks,
fraying, separation and wear.
Go to step I if replacement
required.
(D)
Remove belt guard
bottom bolt.
(F)
Check the belt for proper
tension, if tension is correct, go
to step P (proper tension is
1/8-inch).
(G)
Loosen the motor mounting
bolts, if re-tensioning only go
to step M.
(H)
Loosen the Motor Adjustment
Strap.
(I)
Push the motor toward the
front of the Cutting Head to
loosen the belt.
MK-101 Pro24 MAINTENANCE
BELT INSPECTION, ADJUSTMENT AND REPLACEMENT
The MK-101 is designed with a power transmission belt. In order to ensure the MK-101 operates at peak
efficiency, the V-belt should be inspected monthly, and changed if the belt shows damage and/or exces-
sive wear.
