MK Diamond MK-101 Pro24 User Manual
Page 18

18

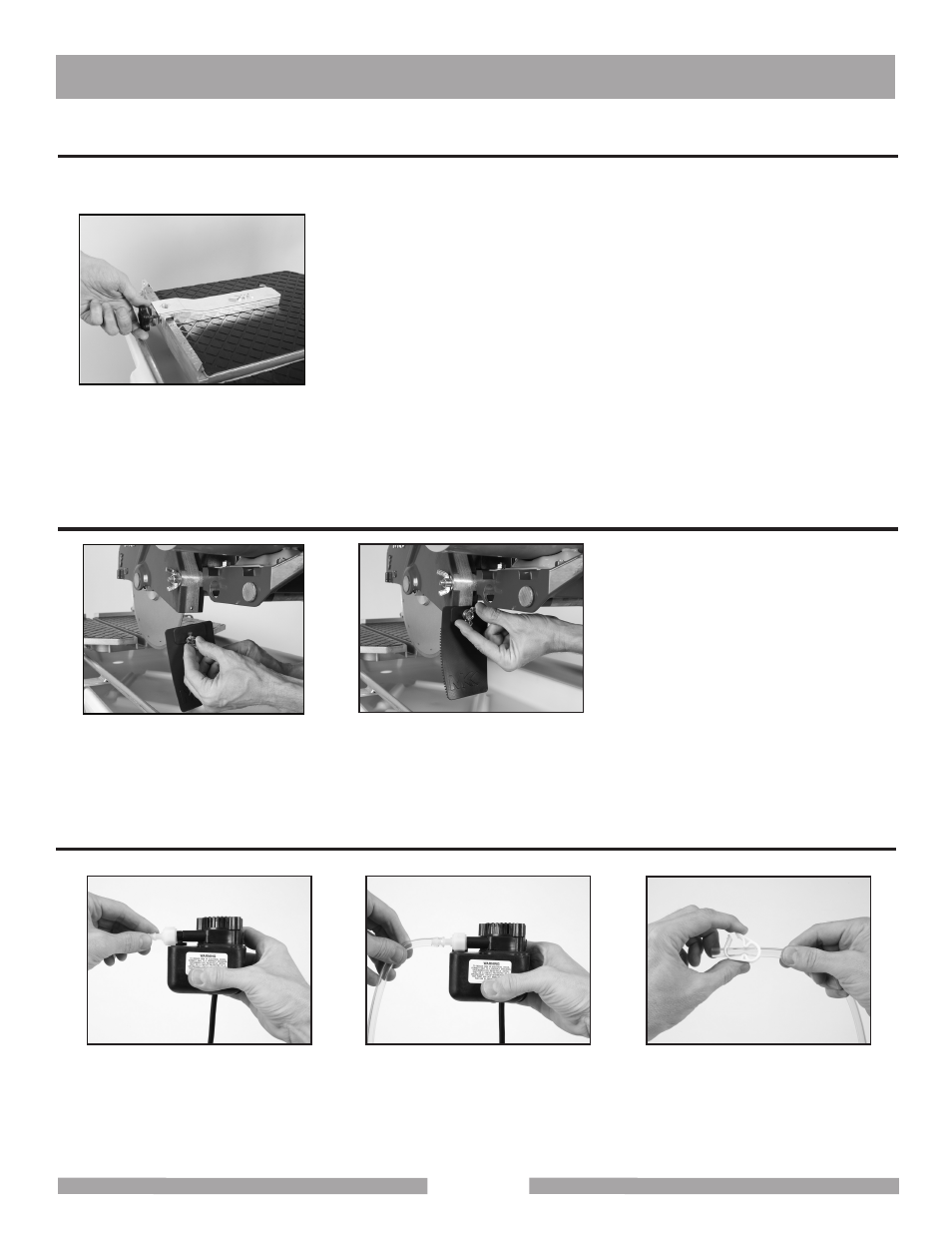

(A)
Place the Adjustable Cutting
Guide onto the Movable Cutting
Table Ruler/Stop and tighten
the retaining thumbscrew.
(A)
Install the retaining thumbscrew
through the washer and Splash
Guard then align to the hole found
on back of the Blade Guard.
(B)
Install the Splash Guard
onto the Blade Guard.
(A)
Install Water Pump
Discharge Fitting.
(B)
Press one end of the Cooling
Transfer Tube onto the Water
Pump Discharge Fitting.
(C)
Slide Cooling Flow Adjusting
Clamp onto the Cooling
Transfer Tube.
MK-101 Pro24
ASSEMBLY
Adjustable Cutting Guide Installation
Splash Guard Installation
Water Pump Installation
NOTE: The Adjustable Cutting Guide can be used on either side of the Diamond Blade.
